Chapter 2 : STARTING (continued) OCTO range
PAGE 10

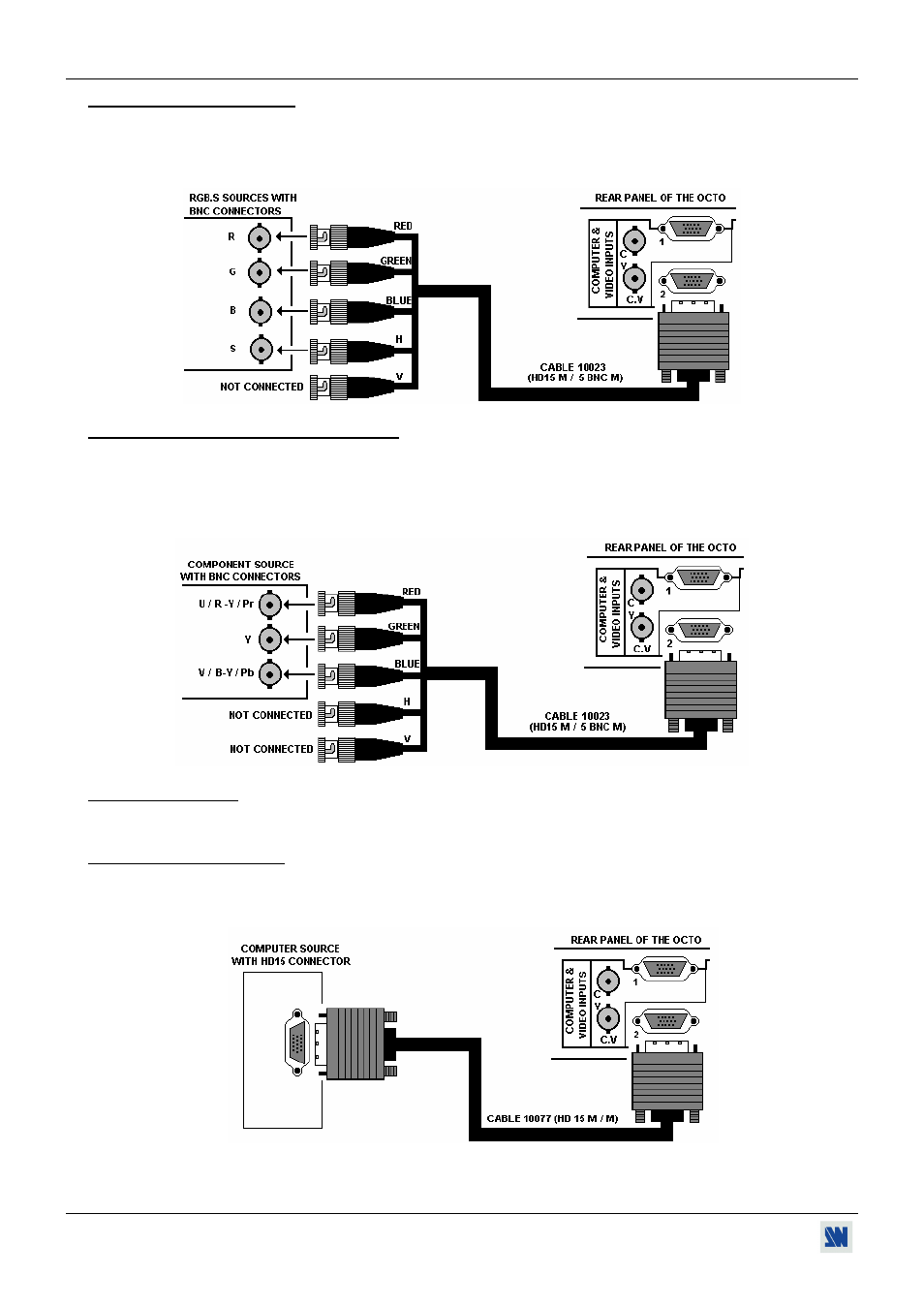

2-4. RGB/S VIDEO SOURCES
The RGB/S signal, also called RGB Sync., is an RGB signal with COMPOSITE Sync. This signal is widely used in
broadcasting. The RGB/S signal is transmitted with 4 coaxial cables, and it has a better picture quality than COMPOSITE
or S.VIDEO signals. The RGB/S connectors are usually BNC connectors.
2-5. COMPONENT VIDEO SOURCES (YUV)
The Component Video signal, also called YUV (Y, R-Y, B-Y), or BETACAM ™ , is widely used in broadcasting and is
available on high-quality DVD players. The COMPONENT signal is transmitted with 3 coaxial cables, and also has a
better picture quality than COMPOSITE and S.VIDEO signals. The COMPONENT connectors are usually RCA (x3), or
BNC (x3) connectors.
2-6. HDTV SOURCES
The OCTO accepts the 720p, 1035i and 1080i HDTV formats. Connect your HDTV sources as a component source.
2-7. COMPUTER SOURCES
The OCTO accepts COMPUTER signals (RGBHV, RGB/S, and RGsB) on its 8 inputs connector (HD15 female). Use a
HD15 male / male cable to connect each of your computer sources to the inputs of the OCTO. For MAC and
WORKSTATION you may require some adapters.
