EntrEtiEn Et diagnostics
4-36
MicroEDGE Pro
Manuel d’instructions 807292 Révision 1

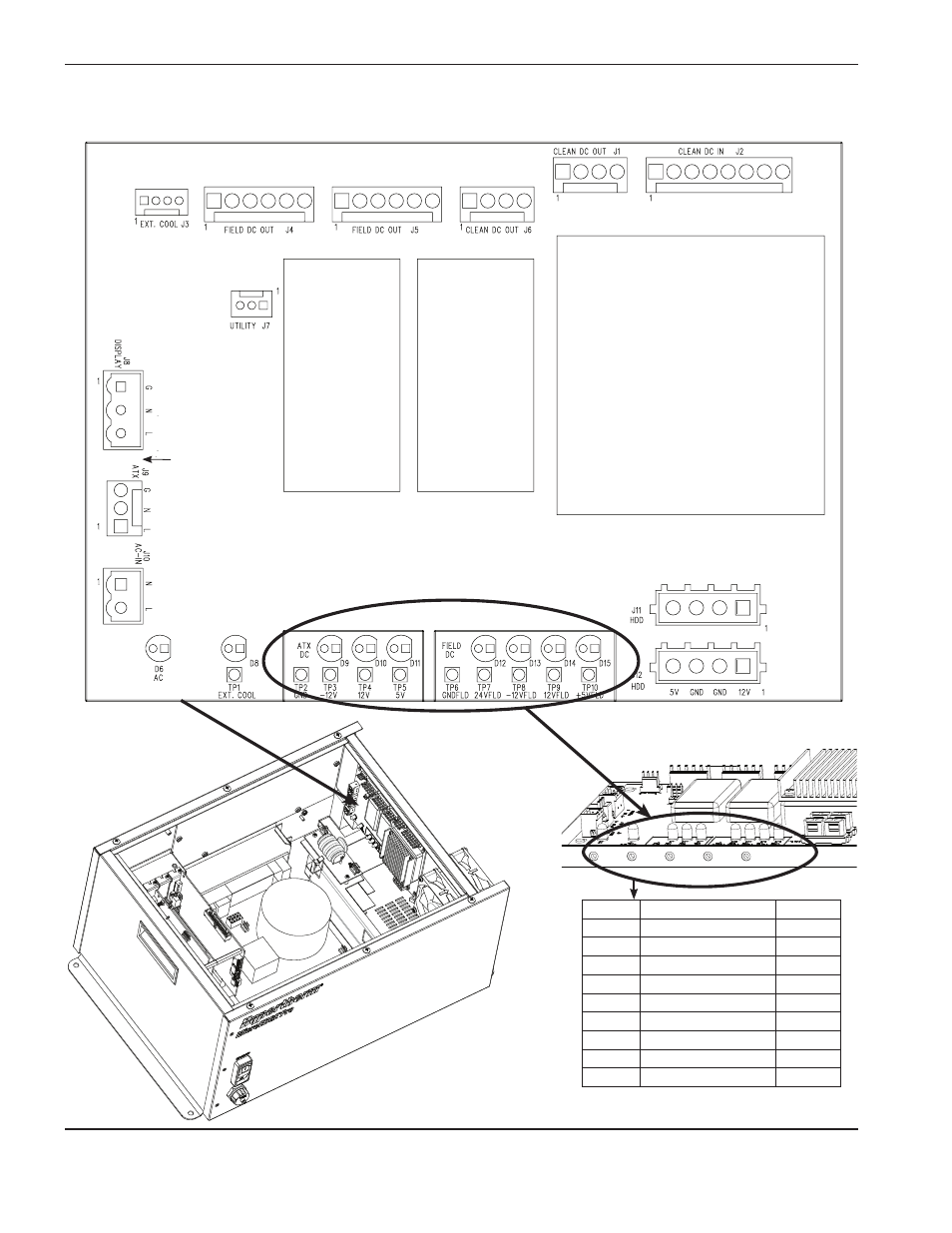

Panneau de distribution d’alimentation (141153)
DEL
Signal
Couleur
D15
+5 V c.c. Champ
Vert
D14
12 V c.c. Champ
Vert
D13
–12 V c.c. Champ
Vert
D12
24 V c.c. Champ
Vert
D11
5 V c.c. ATX
Vert
D10
12 V c.c. ATX
Vert
D9
–12 V c.c. ATX
Vert
D8
Ventilateur externe
Vert
D6
Alimentation c.a.
Vert
Source de courant
Entrée +12 V,
sortie +24 V
Source de courant
Entrée +12 V,
sortie +15 V
Source de courant
Entrée +12 V, sortie +12 V
