Chapter 1 : INTRODUCTION (continued) OCTO-QUATTRO™
PAGE 6

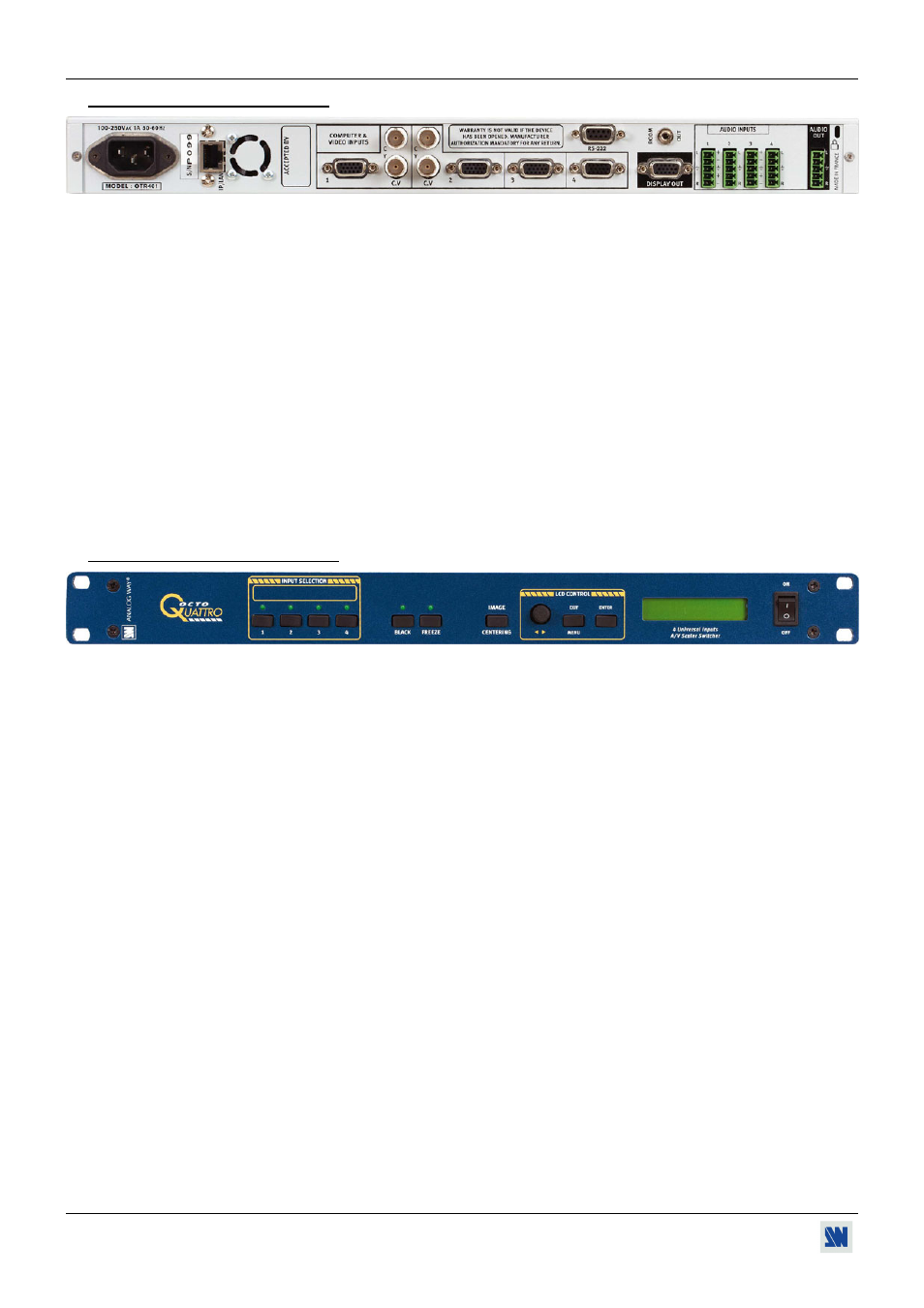

1-5. REAR PANEL DESCRIPTION
POWER: Standard IEC connector (100-250 VAC, 1A, 50-60 Hz automatic).
LAN: LAN communication port on a RJ45 connector (optional).
COMPUTER & VIDEO INPUTS: 4 Universal (computer and video) inputs.
INPUTS #1 & 2: Computer, YUV and HDTV signals on the HD15 female input connector.
S.VIDEO (Y/C) signal on 2 BNC input connectors (Y & C).
Composite Video on one BNC input connector (C.V).
INPUTS # 3 & 4: All signals on a HD15 female connector.
DISPLAY OUT: DATA output (RGBHV, RGB/S or RGsB) on HD15 female connector.
ROOM OUT: A room (+ 12 Vdc trigger) command output (3.5 mm jack female), allows to
control external functions such as up/down screen, lighting...
AUDIO IN:
1 to 4: Audio stereo input balanced/unbalanced on a 5-pin MCO male connector.
AUDIO OUT: Audio stereo output balanced/unbalanced on a 5-pin MCO male connector.
RS-232: RS-232 communication port on a DB9 female connector.
1-6. FRONT PANEL DESCRIPTION
INPUT SELECTION: Selection of the 4 input sources.
BLACK: Allows to display a BLACK screen onto the output (the blinking LED indicates that this
function is active).
FREEZE: Allows to freeze the displayed output (the blinking LED indicates the FREEZE is active).
IMAGE CENTERING: Allows to automatically position the image in the centering pattern.
LCD CONTROL
 Allows to scroll thru the different menus (in Control mode) or to adjust the master volume
(in Status mode).
EXIT MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
ON / OFF: AC power switch (O = OFF, I = ON).
