OCTO-QUATTRO™
PAGE 29

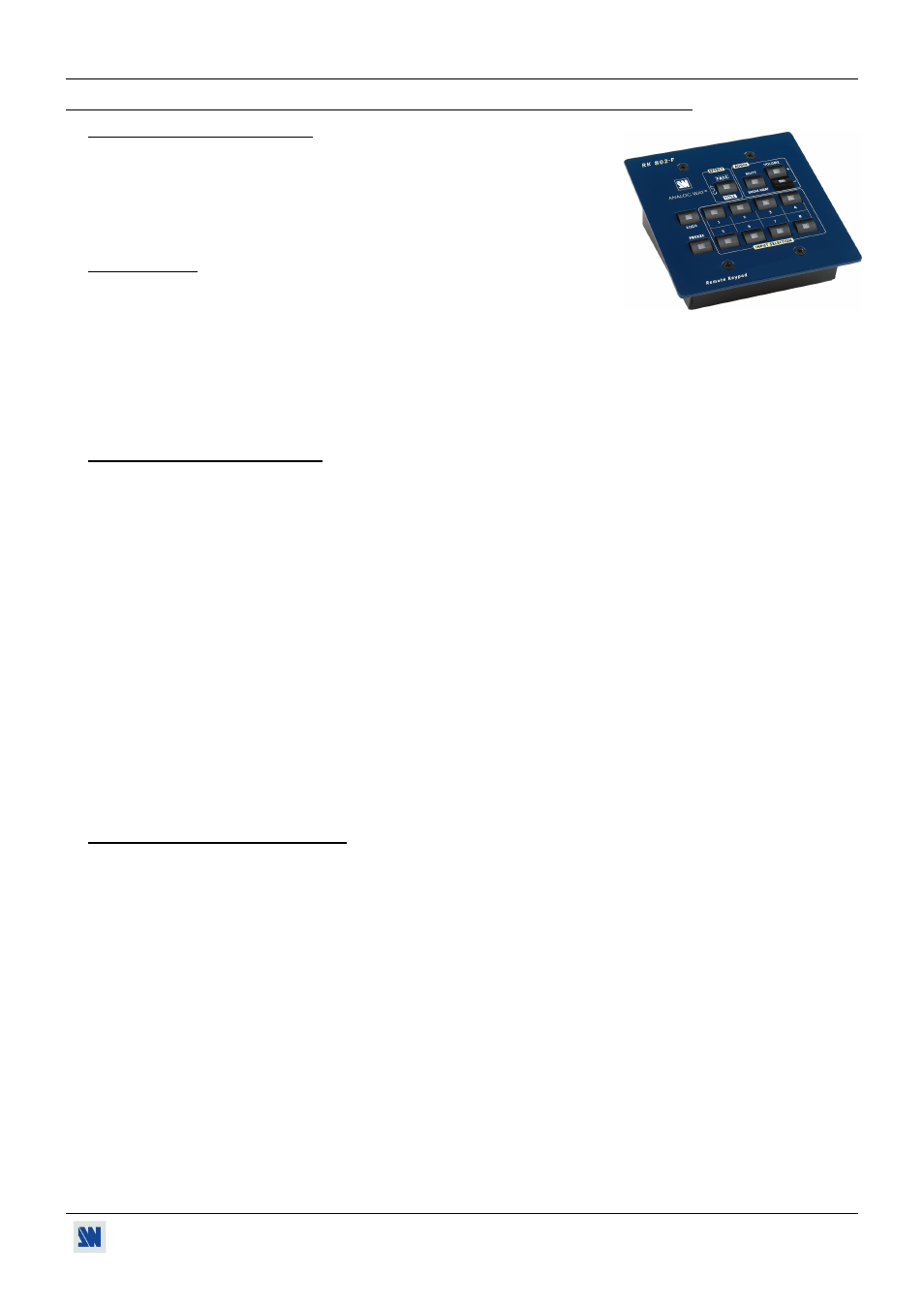

Chapter 9 : OPTIONAL ACCESSORY: THE REMOTE KEYPAD (RK802-F)
9-1. GENERAL INFORMATION
The REMOTE KEYPAD (RK802-F) is a control device for the OCTO range
that enables to drive its main functions from as far as 100 meters (333 feet). The
REMOTE KEYPAD is very easy to use and to install, since it only requires one
cable to connect it to the OCTO. The Remote Keypad does not need any power
supply as it is powered by the OCTO.
9-2. STARTING
c Turn OFF your OCTO (front panel switch).
d Connect the RS-232 connector (DB9 female) of your OCTO to the DB9 male
connector of the REMOTE KEYPAD with the supplied RS-232 cable.
e Turn ON your OCTO (front panel switch).
f Select the wanted source with the INPUT SELECTION buttons.
g Make the audio adjustment with the AUDIO buttons.
9-3. TECHNICAL DESCRIPTION
EFFECT: Not available with the OCTO-QUATTRO ™ .
AUDIO
MUTE: Allows to switch OFF the audio output (short push).
BREAKAWAY: Allows to permanently diffuse an audio source. Select a source with the INPUT SELECTION
button, then press and hold on the BREAKAWAY button (LED = double-blinking).
VOLUME (+ /-): Audio level adjustment.
LOGO: Not available with the OCTO-QUATTRO ™ .
FREEZE: Allows to freeze the displayed output.
INPUT SELECTION: • Selection of the input source (short push).
• A long push (1 second) on the selected input button allows to active the BLACK function:
black output screen.
• The lit ON LED indicates the displayed input. The blinking LED indicates the last displayed
input (when black is active). The double-blinking LED indicates the diffused audio source
(when breakaway is active).
DB9 male connector: RS-232 & power connection.
Jack 3.5 F connector: Input connector for optional infra red receiver.
9-4. TECHNICAL SPECIFICATIONS
Power Supply: + 12 Vdc (by the OCTO-QUATTRO ™ 's DB9 connector).
Storage Temperature: - 25 °C to + 85 °C (- 13 °F to + 185 °F).
Maximum ambient operating temperature: < 40 °C (< 104 °F).
Hygrometry: 10% to 80% (without condensation).
Dimensions: D 115 x W 117 x H 55 mm / D 4.5" x W 4.6" x H 2.16".
Weight: 0.5 kg / 1.1 lbs.
