OCTO-QUATTRO™ Chapter 7 : CONTROL SOFTWARE (continued)
PAGE 21
7-3. COMMUNICATION SETUP (continued)

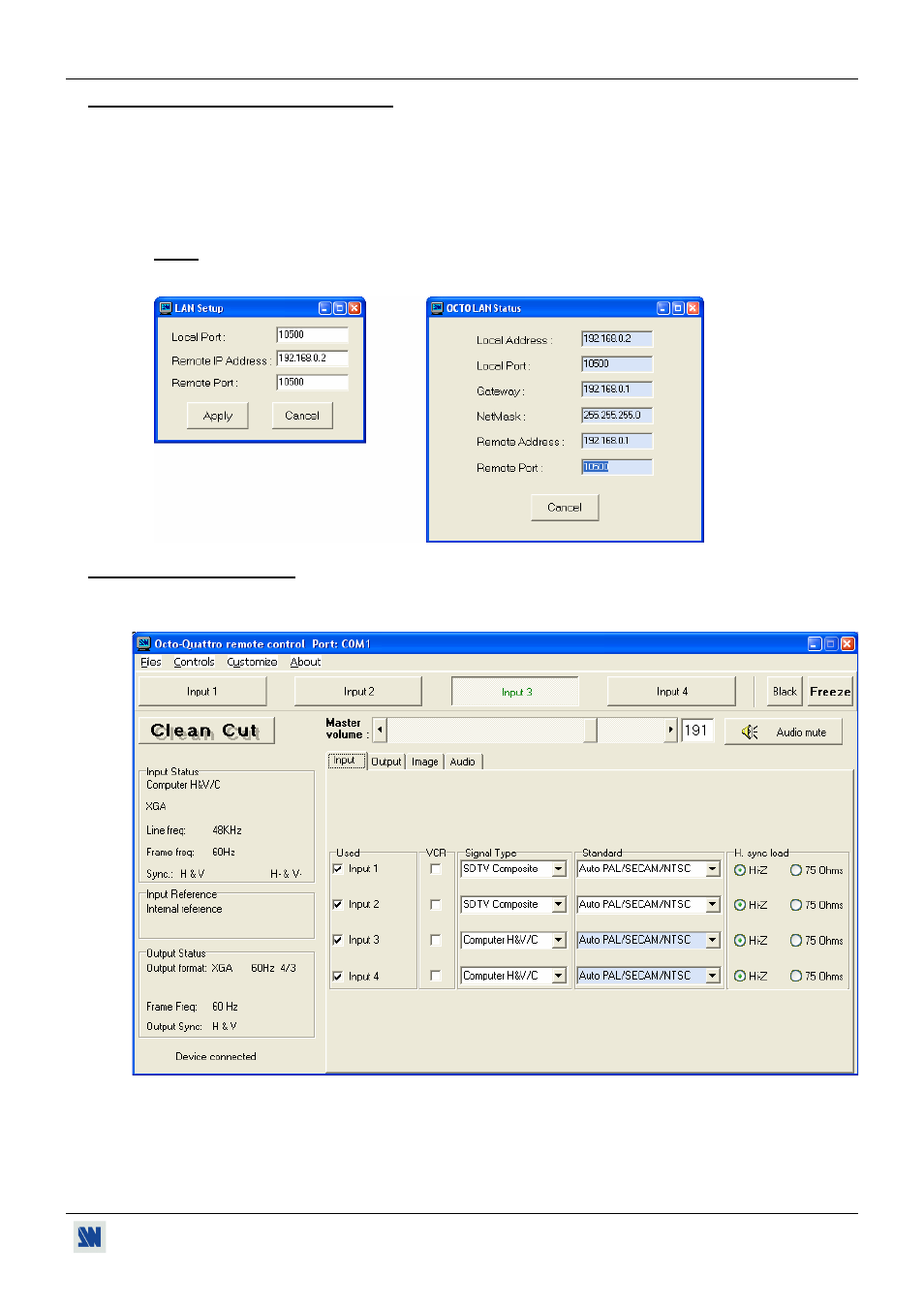

• CASE OF LAN PORT:
- With the LCD menu of the OCTO-QUATTRO
™ device, verify the configuration of the LAN communication
port (CONTROL > LAN setup), then activate the LAN communication port (CONTROL > RS232/LAN port
> LAN).
- With the Controls menu of the software, select RS232/LAN setup, and LAN Setup. Then configure the Local
port, the Remote IP address and the Remote port, and click on Apply to setup the new values. The software
will also display Device connected.
NOTE: To verify the LAN status of your OCTO-QUATTRO
™ device, select OCTO LAN status in the
Controls menu.
7-4. USING THE SOFTWARE
c Click on the Input tab and select the Signal Type for each input. Then, if needed make the others adjustments
(video Standard...) and disable the unused inputs (Used section).
