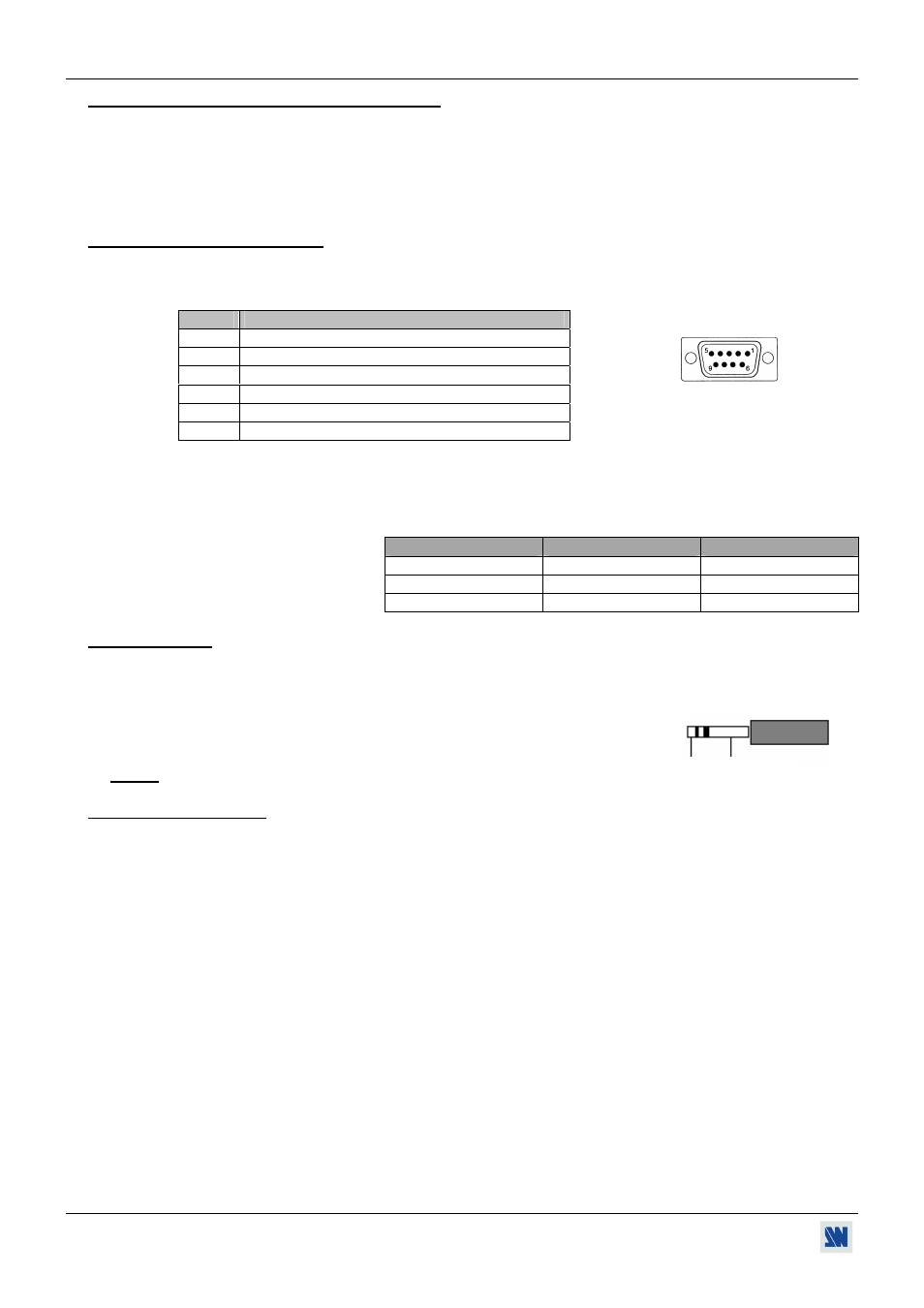

Chapter 10 : TECHNICAL SPECIFICATIONS (continued) OCTO-QUATTRO™
PAGE 32
10-4. AUDIO OUTPUT (5-pin MCO male connector)
• Balanced and unbalanced stereo output.
• Vo = + 0 dBu (nominal), + 4 dBu (max).
• Zo = 600 Ω balanced.
• Zo = 300 Ω unbalanced.
• G = 0 dB nominal, - ∞ with Master volume.
10-5. COMMUNICATION PORTS
• RS-232 (on DB9 female connector)
Data Rate:
9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control.
Pin-out:
• LAN (Optional on RJ45 connector)
Protocol:
UDP (User Datagram Protocol).
Data Rate: 10 / 100 Mbps.
LED functions (on RJ45 connector): Top LED Bottom LED Meaning
OFF OFF No link
OFF ON 100 BASE-T link.
ON OFF 10 BASE-T link.
10-6. ROOM OUT
Connector: Jack 3.5 mm female.
Command levels: ON = + 12 Vdc trigger.
OFF = 0 Vdc.
Output Current: 0.1 A max at + 12 Vdc.
NOTE: The ROOM OUT is activate with the AC Power Switch (ON/OFF).
10-7. ENVIRONMENTAL
Power Supply: Internal CE / UL / CSA / IEC 950 (50 W), universal, automatic.
Input: 100 VAC to 250 VAC; 50-60 Hz; I = 1 A Max.
Storage Temperature: - 25 °C to + 85 °C (- 13 °F to + 185 °F).
Operating temperature: 0 °C to + 50 °C (32 °F to 122 °F).
Maximum ambient operating temperature: < 40 °C (< 104 °F).
Hygrometry: 10% to 80% (without condensation).
Dimensions: D 300 x W 482 x H 44 mm / D 11.8" x W 19" x H 1.74".
Compatible with the 19" rack (height = 1 unit).
Weight: 3.7 kg / 8.16 lbs.
PIN # FUNCTIONS
2 Tx1 (transmit data to the control device)
3 Rx1 (receive data from the control device)
4 Rx2 (receive data from the display device)
5 GROUND (Gnd)
8 Reserved for manufacturer.
9 Tx2 (transmit data to the display device)
DB9 female connector of the
OCTO-QUATTRO ™ .
+ 12 Vdc Ground
Jack 3.5 connection
