OCTO-QUATTRO™

Chapter 10 : TECHNICAL SPECIFICATIONS (continued)

PAGE 31

10-1. COMPUTER & VIDEO INPUTS (continued)

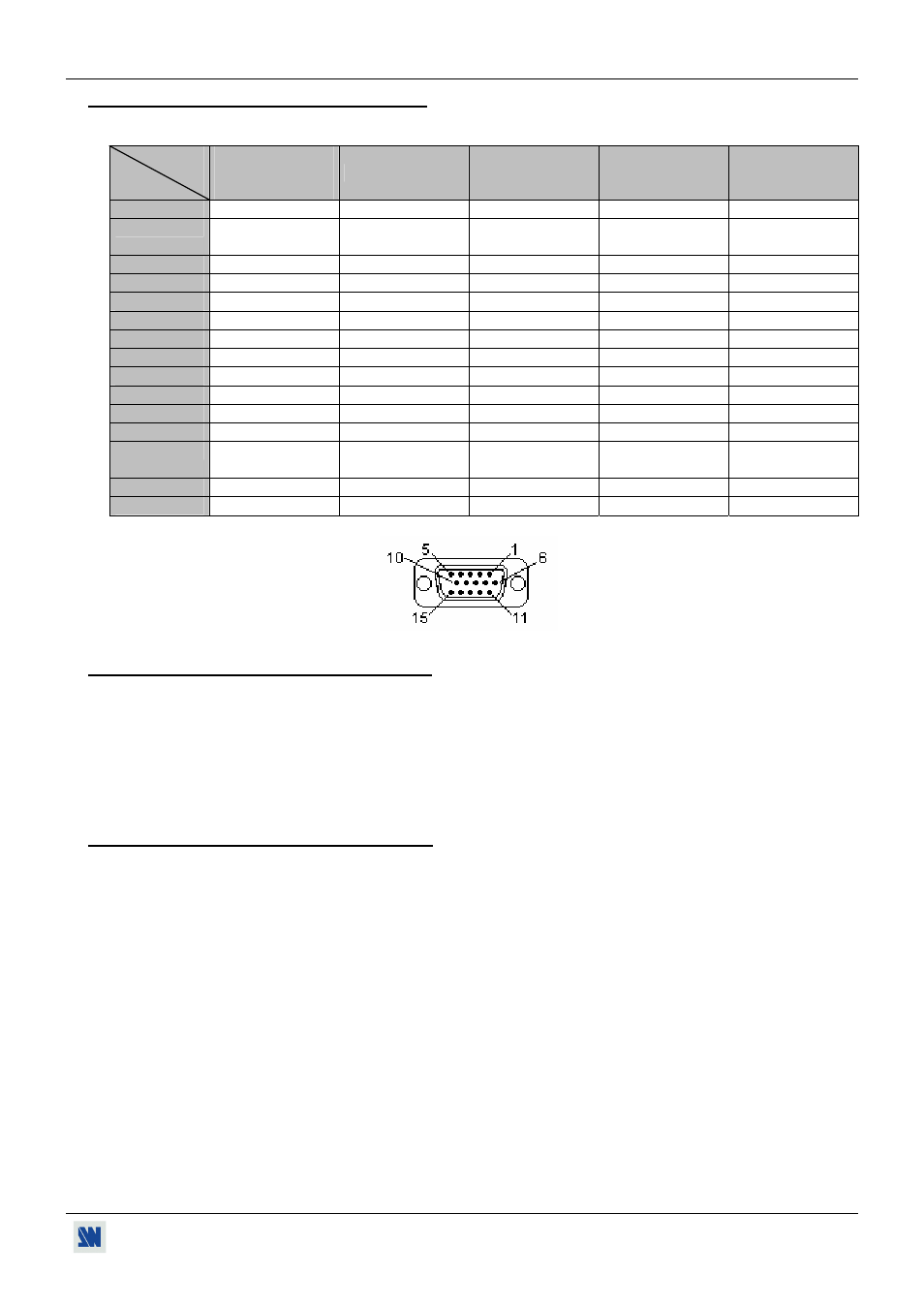

HD15 PIN ASSIGNMENT

SIGNAL

PIN #

COMPUTER

(RGBHV,RGB/S,

RGsB)

RGB/S VIDEO

COMPONENT

(YUV)

S.VIDEO (Y/C)

COMPOSITE

VIDEO

PIN 1

RED.

RED.

U or Pr (R-Y).

C (chrominance).

PIN 2

GREEN.

GREEN.

Y.

Y (luminance).

Composite video
(NTSC, PAL...)

PIN

3

BLUE. BLUE. V

or

Pb

(B-Y).

PIN 4

PIN 5

PIN 6

RED return.

RED return.

U return.

C return.

PIN 7

GREEN return.

GREEN return.

Y return.

Y return.

return.

PIN 8

BLUE return.

BLUE return.

V return.

PIN 9

PIN

10

GND. GND.

PIN 11

PIN 12

PIN 13

H sync
or C sync (S).

C sync (S).

PIN 14

V sync.

PIN 15








10-2. DISPLAY OUTPUT (HD15 female connector)

Levels:

R, G, B = 0.7 Vp/p.

Sync.: Separate H & V = TTL.

Composite = TTL.

SOG = 0.3 Vp/p.

Impedance: R, G, B = 75 ohms.

Format:

One of the formats available in the LCD menu.

10-3. AUDIO INPUTS (5-pin MCO male connector)

INPUTS #1 to # 4 (on 5-pin MCO male connector) = Balanced and unbalanced* stereo inputs.

Vi = + 0 dBu (sensibility), + 4 dBu (max).
Zi = 22 kΩ unbalanced.
Zi = 44 kΩ balanced.
Gain = + 0 db / - ∞ adjustable.

* Improved "unbalanced" by special "Pseudo-Differential" circuitry.

HD15 female connector of the OCTO-QUATTRO

.
