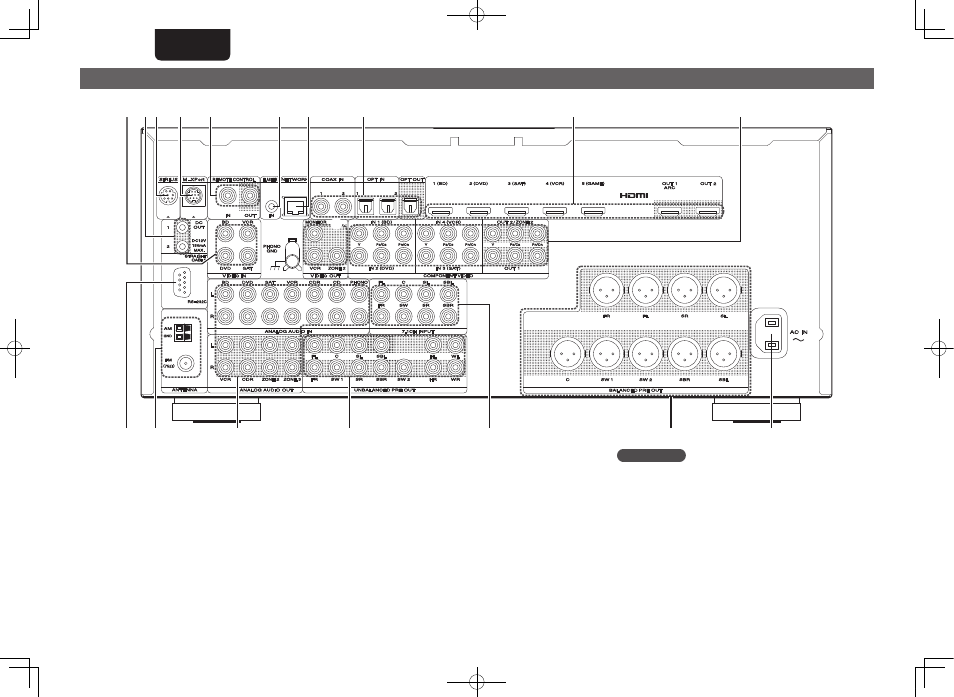

Panneau arrière
Voir la page indiquée entre parenthèses ( ).
Q8
q
w
u
y
r
t
e
Q6
Q4
Q7
i
Q5
Q3
Q2
Q1
Q0
o
Q7
q
Borne RS-232C ········································································· (54)
w
Bornes d’antennes HD Radio ················································· (22)
e
Bornes audio analogiques ·········································(17 – 21, 23)
r
Bornes UNBALANCED PRE OUT ·············································· (6)
t
Bornes 7.1CH INPUT ······························································· (23)
y
Bornes BALANCED PRE OUT ··················································· (6)
u
Prise CA (AC IN) ········································································· (7)
i
Bornes COMPONENT VIDEO ···········································(17 – 19)
o
Bornes HDMI ············································································ (16)
Q0
Bornes audio numériques ···············································(17 – 21)
Q1
Borne NETWORK ····································································· (24)
Q2
Prise FLASHER IN
Utilisé avec un BOITIER de commande ou autre dispositif de
commande pour la gestion de cet appareil.
Q3
Prises REMOTE CONTROL ······················································ (53)
Q4
Prise M-Xport ··········································································· (23)
Q5
Borne SIRIUS ··········································································· (22)
Q6
Prises DC OUT ········································································· (54)
Q7
Bornes VIDEO ···································································(17 – 19)
Q8
Borne SIGNAL GND ································································ (21)
REMARQUE
Ne touchez pas les broches internes des connecteurs sur le panneau
arrière. Une éventuelle décharge électrique pourrait endommager de
façon permanente votre appareil.
