Chapter 3 : TECHNICAL DESCRIPTION SMART FADE™
PAGE 8

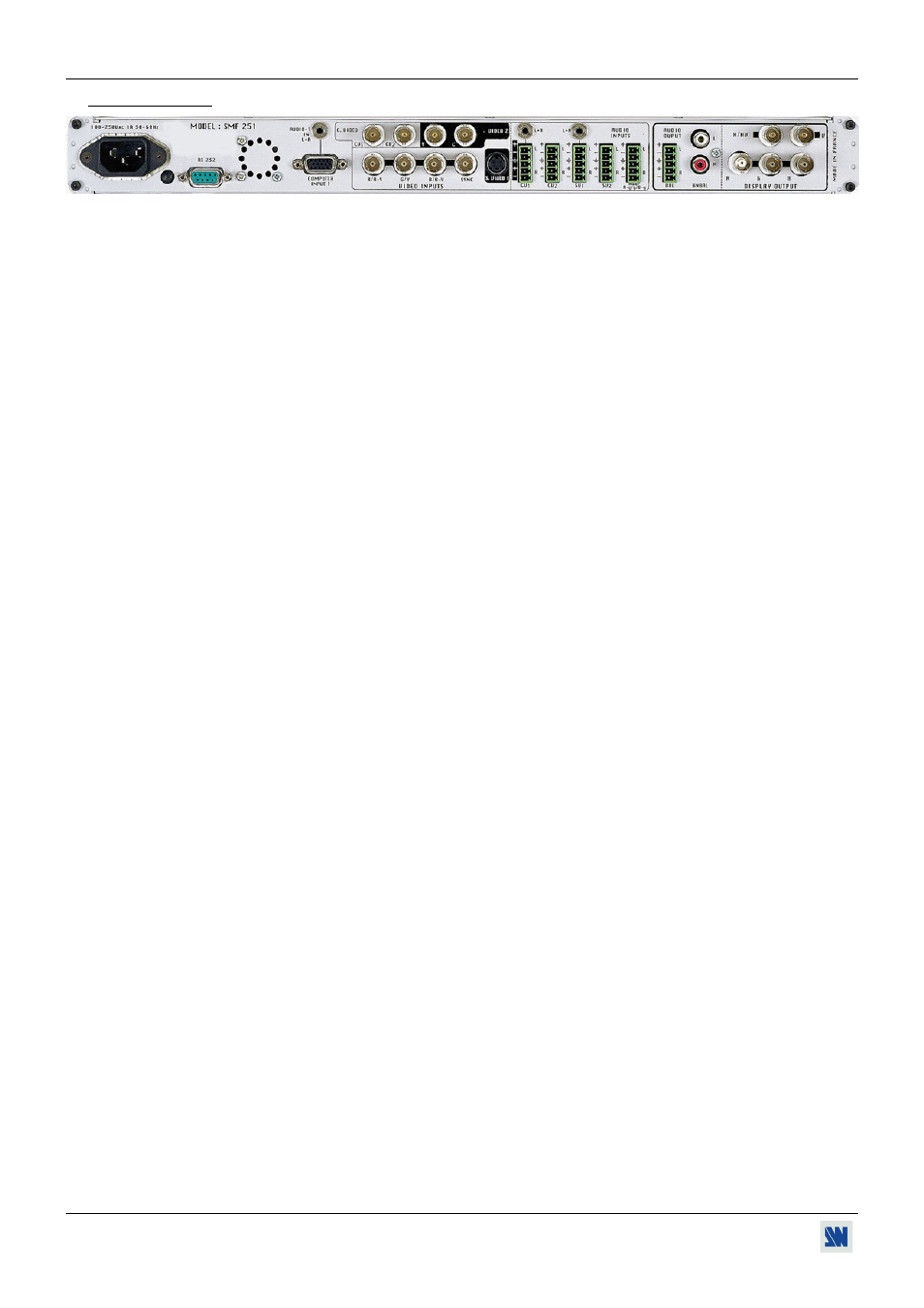

3-2. REAR PANEL
POWER INPUT:
Standard IEC connector (100-250VAC, 1A, 50-60Hz automatic).
REMOTE RS-232:
Standard remote control (RS-232) on DB9 female connector.
COMPUTER INPUT 1:
COMPUTER #1 (PC, MAC, WORKSTATION) input on HD15 female connector.
AUDIO-1 IN L+R:
COMPUTER #1 audio stereo input on 3.5 JACK connector.
VIDEO INPUTS
C.V 1:
Composite video #1 input on BNC connector.
C.V 2:
Composite video #2 input on BNC connector.
S.VIDEO 1:
S.VIDEO #1 input on 4-pins mini DIN connector.
S.VIDEO 2:
S.VIDEO #2 input on 2 x BNC connectors.
RGB SYNC / R-Y, Y, B-Y:
RGB/S or YUV (COMPONENT) video input on 3 or 4 BNC connectors.
AUDIO INPUTS
CV1:
Audio stereo input unbalanced on 3.5 JACK connector.
Audio stereo input balanced/unbalanced on 5-pins MCO female connector.
CV2:
Audio stereo input balanced/unbalanced on 5-pins MCO female connector.
SV1:
Audio stereo input unbalanced on 3.5 JACK connector.
Audio stereo input balanced/unbalanced on 5-pins MCO female connector.
SV2:
Audio stereo input balanced/unbalanced on 5-pins MCO female connector.
RGB / R-Y, Y, B-Y:
Audio stereo input balanced/unbalanced on 5-pins MCO female connector.
AUDIO OUTPUTS
Audio stereo output unbalanced on 2 x RCA connector.
Audio stereo output balanced/unbalanced on 5-pins MCO female connector.
DISPLAY OUTPUT
DATA output (RGBHV or RGB/S) on 4 or 5 BNC connectors.
