Chapter 4 : STARTING SMART FADE™
PAGE 10
4-2. COMPOSITE VIDEO INPUTS (C.V1 & C.V2)
The Composite Video signal, usually called COMPOSITE or VIDEO, is available on most video equipment (VCR, DVD,
CAMERA…), but it is also the lowest in picture quality. The video standard of this signal could be NTSC, PAL or
SECAM. The signal is transmitted by a single coaxial cable, and is connected to the video equipment with an RCA or BNC
connector.

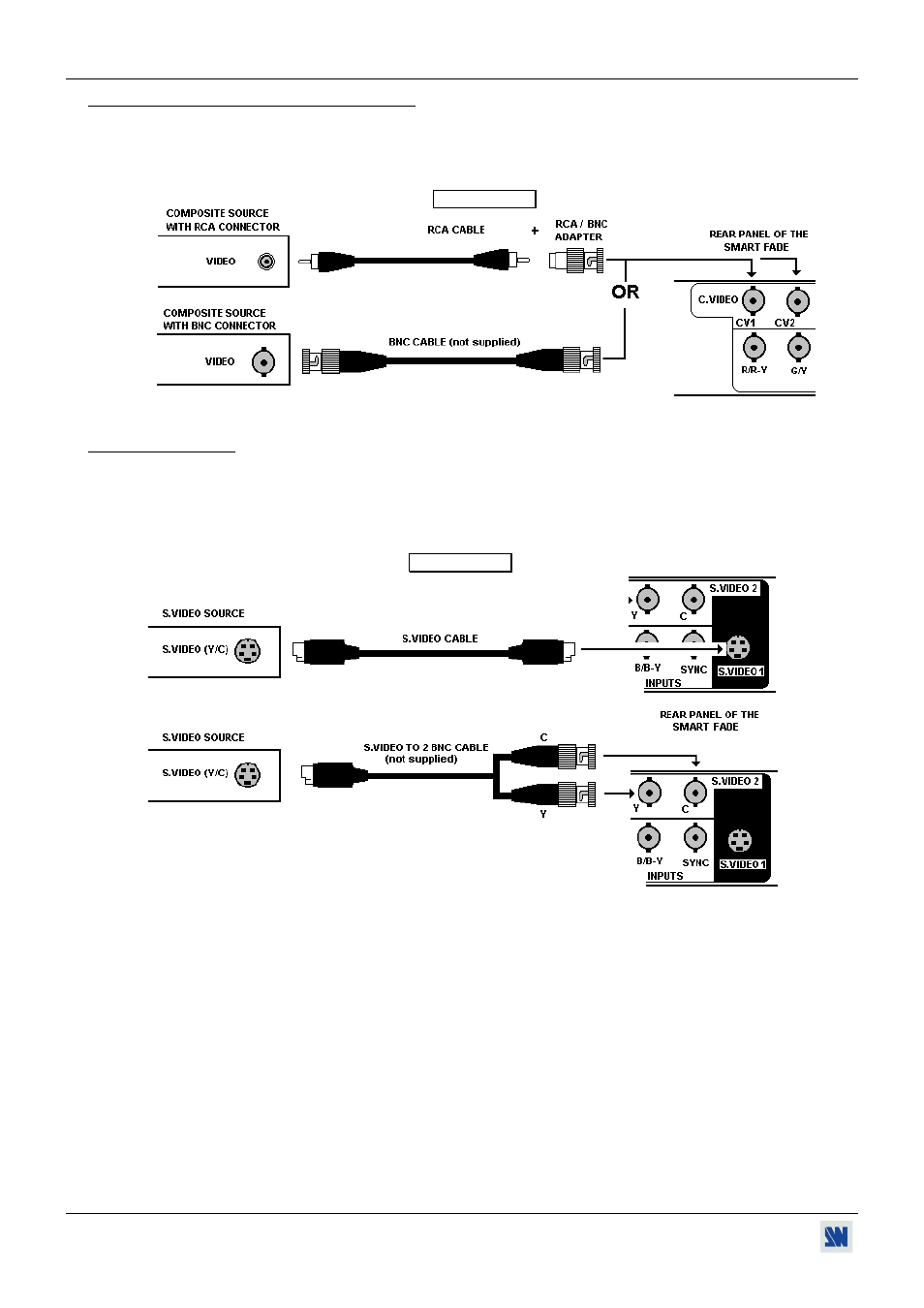

CONNECTION
4-3. S.VIDEO INPUTS
The S.VIDEO (Super Video) signal, also called Y/C, HI-8 ™ , or S.VHS ™ , is available on most DVD players and high
quality VCR (S.VHS). The S.VIDEO signal, in which the Luminance (Y) and Chrominance (C) information are
separately transmitted (2 wires), gives a higher quality picture than the Composite video signal. The S.VIDEO connector
is usually a 4-pins Mini-DIN connector also called Oshiden
™ connector. It can also sometimes be on 2 BNC connectors.
CONNECTION
