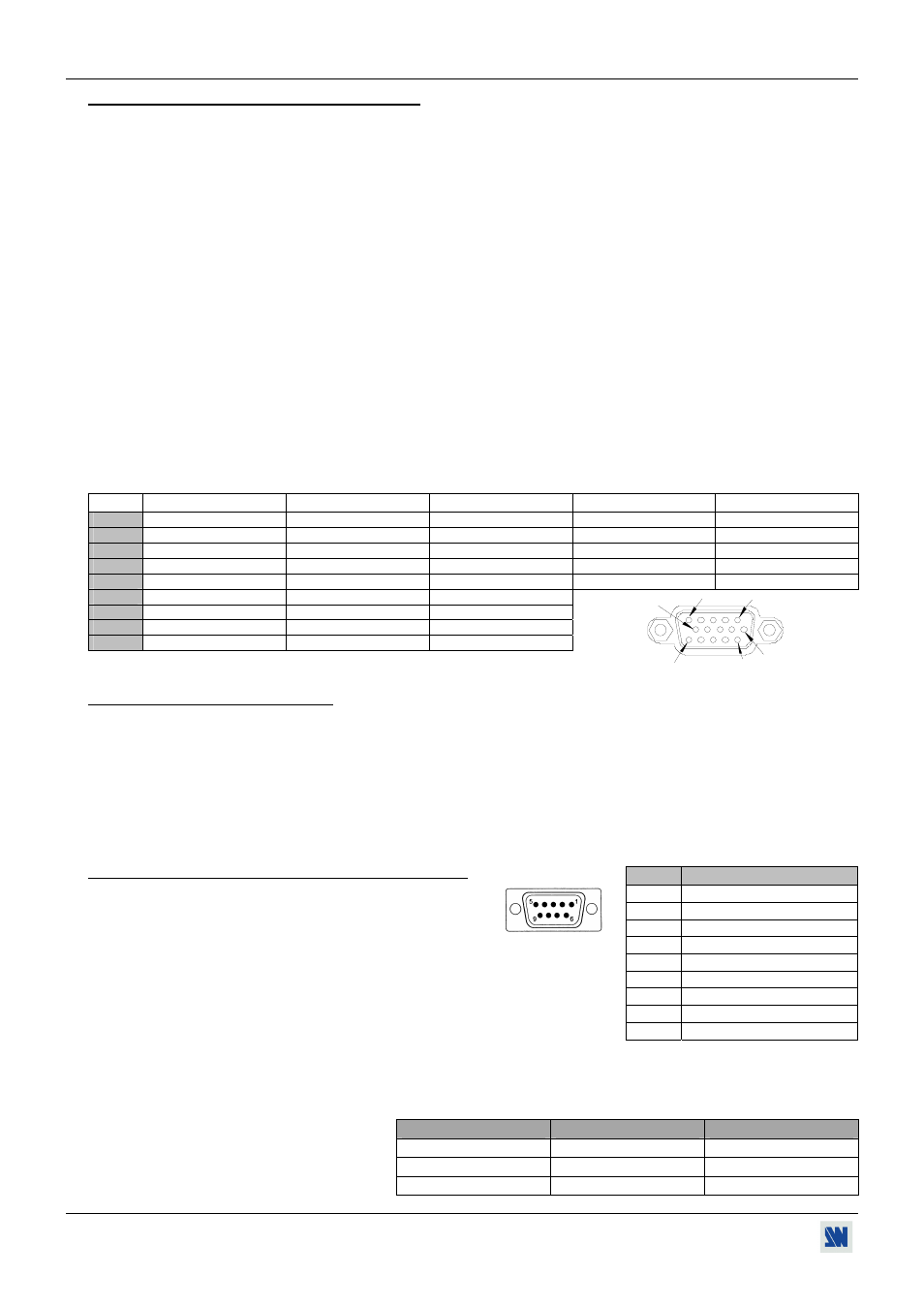

Chapter 7 : TECHNICAL SPECIFICATIONS (continued)

CENTRIX™ & EVENTIX™

PAGE 60

7-1. COMPUTER & VIDEO INPUTS (continued)

COMPOSITE VIDEO:

Connectors:

BNC female (inputs #1 to #4) or HD15 female (inputs #5 to #8).

Standard:

PAL / SECAM: 15.625 kHz - 50 Hz - 625 lines.

NTSC (3.58 MHz / 4.43 MHz): 15.735 kHz - 60 Hz - 525 lines.

Level:

1 Vp/p (0.7 V Luma + 0.3 V Sync.).

Impedance: 75

ohms.

DIGITAL COMPUTER (DVI) INPUT (CTX8022-D, EVX8022-D & EVX8022HD-D models only):

Connector:

DVI-I female.

Format:

Digital Visual Interface (DVI)-TMDS single link.

Resolution:

Up to 1600 x 1200 @ 60Hz BR (reduced blanking).

SDI (CTX8022-D, EVX8022-D & EVX8022HD-D models only):

Connector:

BNC female.

Signal:

270 Mbps serial digital input conforming to SMPTE 259M.

Impedance: 75

ohms.

HD15 PIN ASSIGNMENT

SIGNAL COMPUTER (analog)

RGB/S VIDEO

YUV & HDTV (analog)

S.VIDEO (Y/C)

COMPOSITE VIDEO

PIN 1

RED.

RED.

Cr / Pr. C

(chrominance).

PIN 2

GREEN.

GREEN.

Y.

Y (luminance).

VIDEO (NTSC, PAL...)

PIN 3

BLUE.

BLUE.

Cb / Pb.

PIN 6

RED return.

RED return.

Cr / Pr return.

C return.

PIN 7

GREEN return.

GREEN return.

Y return.

Y return.

return.

PIN 8

BLUE return.

BLUE return.

Cb / Pb return.

PIN 10

GND.

GND.

PIN 13

H sync or C sync (S).

C sync (S).

PIN 14

V sync.

HD15 female connector of the device.

7-2. MAIN & PREVIEW OUTPUTS

Connectors: HD15 female.

Levels:

R, G, B = 0.7 Vp/p.

Sync.:

Separate H & V = TTL.

Composite = TTL.

SOG = 0.3 Vp/p.

Impedance: R, G, B = 75 ohms.

7-3. COMMUNICATION PORTS & TALLY OUTPUTS

REMOTE RS-232 (on DB 9 female connector)

Level: RS-232.

Data Rate: 9600 Bauds, 8 data bits, 1 stop bit,

no parity bit, no flow control.

TALLY OUT (on DB 9 female connector)

Rating:

20 Vdc MAX, 50 mA MAX (open collector).

LAN (on RJ45 connector)

Protocol:

UDP (User Datagram Protocol) or TCP (Transmission
Control Protocol).

Data Rate: 10 / 100 Mbps.

LED functions (on RJ45 connector):

Top LED

Bottom LED

Meaning

OFF

OFF

No

link

OFF

ON

100 BASE-T link.

ON

OFF

10 BASE-T link.

PIN #

FUNCTION

1

tally # 1

2

Tx (transmit data)

3

Rx (receive data)

4

reserved for manufacturer

5 Ground
6

tally # 2

7 NC
8

reserved for manufacturer

9

tally # 3

DB9 Female

connector

5

6

1

15

10

11
