Chapter 3 : OPERATING MODE (continued) CENTRIX™ & EVENTIX™
PAGE 32
3-2. OPERATING WITH THE FRONT PANEL OF THE EVENTIX™ (continued)
3-2-2. OPERATING IN MATRIX MODE (continued)
• DISPLAY DEVICES ADJUSTMENTS
For each OUTPUT:
c Select the centering pattern with the LCD menu (OUTPUT X > test pattern > centering pattern).
d Adjust directly the display device itself, using its controls, to fill the centering pattern in full screen.

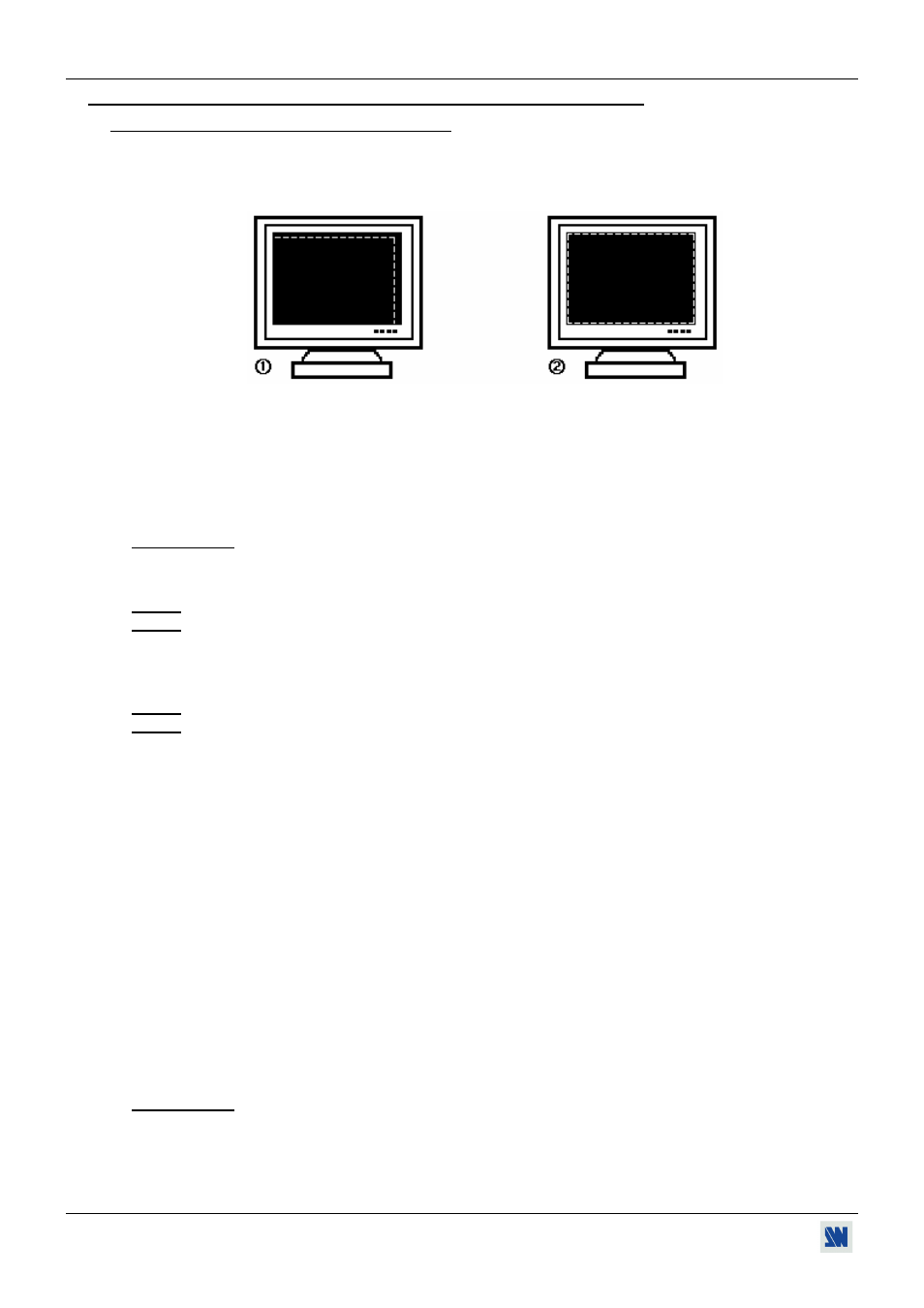

Figure 18: Centering pattern.
• IMAGE ADJUSTMENTS
For each input source connected to the EVENTIX
™ , make the following adjustments:
c Select the source you want to adjust.
d Select the aspect ratio of your input source with the LCD menu (IMAGE > aspect ratio).
e Use the Centering function (IMAGE > centering) to automatically position the image in the Centering
pattern.
IMPORTANT: For best results, display a full size bright image (no black border) to perform a centering. If
necessary, correct the position & size with the IMAGE POS. SIZE key or with the LCD menu
(IMAGE > pos settings).
NOTE: The centering function is only available for computer sources.
NOTE: In case of same Input/Output resolution, the centering also achieves automatic pixel clock adjustments. It
may be useful, to improve manually the pixel clock and phase using the LCD menu (IMAGE > optimize
> clock or phase).
f If needed, make the others adjustments, available in the LCD IMAGE menu (color, brightness…).
NOTE: To set the image adjustments to the factory settings, use the Preset function (IMAGE > preset > yes).
NOTE: The adjustments are automatically stored in NON-volatile memories. The EVENTIX
™ is provided with 40
NON-volatile image memories. Each of these memories contains the input channel number, the input and
output format parameters and all of the image adjustments (position, size, brightness...). When the 40
memories are used, each new memorization erases the oldest record.
• VIDEO OUTPUT ADJUSTMENTS
c Select the output standard (OUTPUT menu > video output > video standard > NTSC or PAL).
d Select the video "output rate" (OUTPUT menu > video output > output rate >...).
e Select a level of anti-flicker (OUTPUT menu > video output > flicker adj. >...).
f Select the zoom mode (OUTPUT menu > video output > U/Over scan > underscan or overscan).
• AUDIO ADJUSTMENTS
For each AUDIO output, make the following adjustment.
c Adjust the master volume (AUDIO xxxx > master volume).
d Select the mono or stereo audio mode (AUDIO xxxx > audio mode > mono or stereo)
e Select the auto follow or breakaway audio mode (AUDIO > audio source > auto follow or input # x):
- auto follow = the audio switching follows automatically the video switching.
- breakaway = the selected audio input is permanently diffused.
f For each audio input, adjust the level (AUDIO xxxx > audio level) and the balance (AUDIO xxxx > audio
balance).
IMPORTANT: If the auxiliary audio input (AUX) is used, don't forget to activate it with the LCD menu (AUDIO
xxxx > AUX input > ON).
