CENTRIX™ & EVENTIX™
PAGE 11

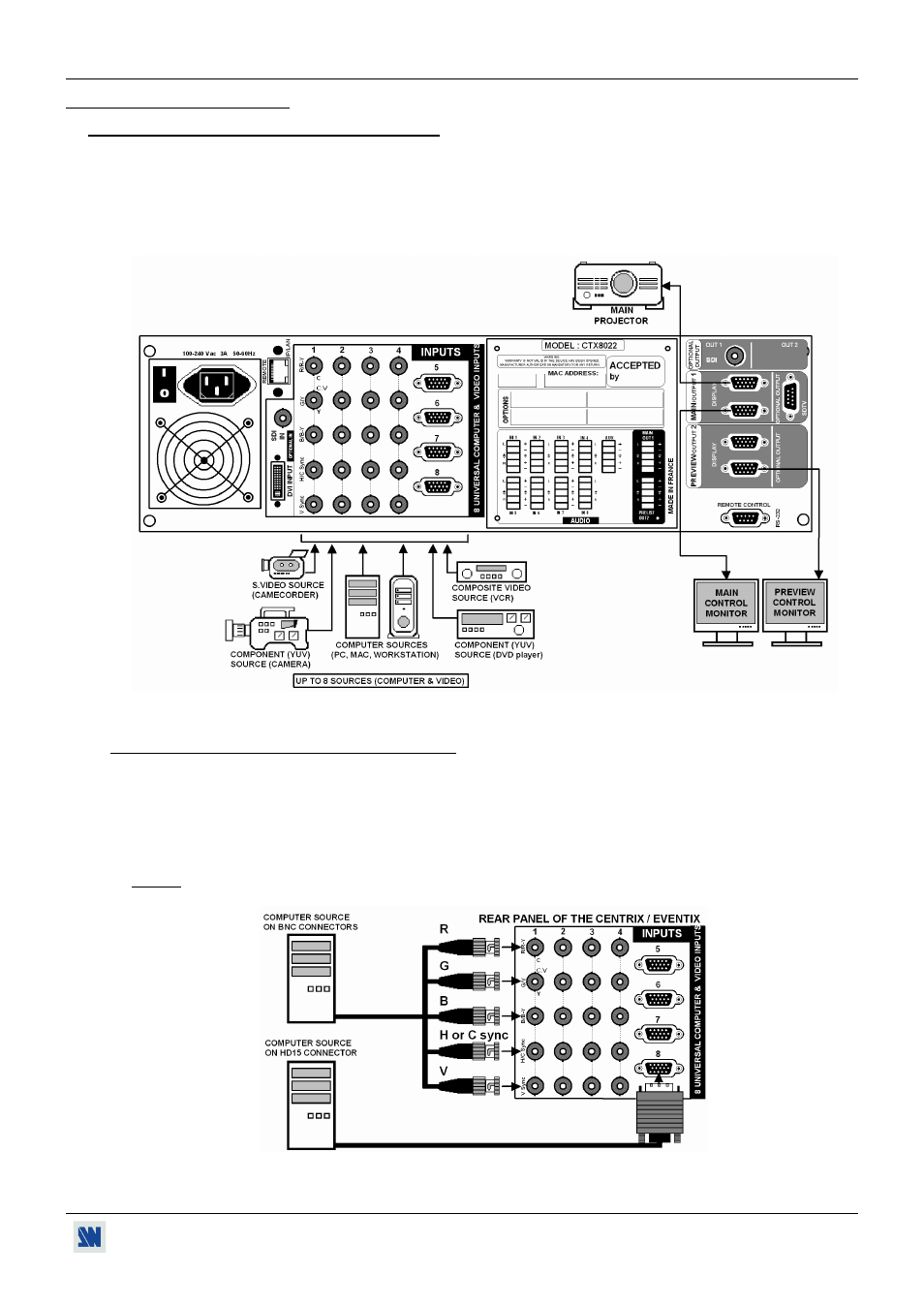

Chapter 2 : CONNECTING
2-1. CONNECTING THE CENTRIX ™ / EVENTIX ™
c Turn OFF all of your equipment before connecting.
d Connect your computers (PC, MAC, workstation) and your video sources to the inputs (1 to 8) of the device.
e Connect your MAIN display device (data projector, plasma screen...) to the "MAIN" output.
f Connect your control monitors to the PREVIEW & MAIN outputs.
g Connect the AC power supply cord to the device and to a power outlet.
h Turn ON the projector, the local monitors, the device (rear panel switch) and then all of your input sources.
Figure 4
2-1-1. UNIVERSAL COMPUTER & VIDEO INPUTS
The UNIVERSAL INPUTS can accept both COMPUTER sources (RGBHV, RGBS, and RGsB (SOG) signals),
standard TV/VIDEO sources (Composite video, S.VIDEO, Component (YUV), RGBS & RGsB (SOG)), and HDTV
sources (720p & 1080i).
c COMPUTER SOURCES:
The device accepts COMPUTER signals (RGBHV, RGB/S, and RGsB) on its 8 inputs. The inputs #1 to #4 are
provided with a 5x BNC female connectors. The inputs #5 to #8 are provided with a HD15 female connector.
NOTE: For RGBS signals connect the Sync cable to the H/C sync BNC connector.
Figure 5
