Analog Way CentriX - CTX8022 - Manuel (Page 36)

Chapter 3 : OPERATING MODE (continued) CENTRIX™ & EVENTIX™
PAGE 36
3-3. OPERATING WITH THE REMOTE KEYPAD (continued)
3-3-3. OPERATING IN MATRIX MODE
• SETTINGS
c We recommend resetting the CENTRIX ™ / EVENTIX ™ device to its default values, with the LCD menu
(CONTROL > default value > yes) before proceeding.
d Set the CENTRIX ™ / EVENTIX ™ in MATRIX MODE with the LCD menu (MODE > matrix mode).
e Select the input type connected to the INPUTS (# 1 to # 8) with the LCD menu (INPUT > input type).
f Make the following adjustments for the display device connected to the OUTPUT 1:
• Select the output sync. type which corresponds to the display device with the LCD menu (OUTPUT X>
output sync).
• Select the output rate mode with the LCD menu (OUTPUT X > output rate).
• Select one of the output formats with the LCD menu (OUTPUT X > output format).
NOTE: For fixed pixels display device (DMD, LCD, PLASMA…), always select the output format
corresponding to the native resolution of your display device. Thus, the display device will not have to
scale the image and the result will be better.
• Select the type of screen (4/3 or 16/9) with the LCD menu (OUTPUT X > type of screen > 4/3 or 16/9),
according to your wall mounted projection screen shape.
g Then renew the adjustments of the step f for the display device connected to the OUTPUT 2.
• INPUT SELECTION
c Select an output (OUT 1 or OUT 2) with the OUTPUT SELECT keys.
d Pre-select an input with the INPUT SELECT keys. The key starts blinking.
e Press on TAKE or move manually the T-BAR to display the pre-selected input onto the selected output. The
transition operates with a fading to black.
NOTE: You can switch simultaneously on the OUTPUT 1 & 2: do the operations c and d for the OUTPUT 1,
then do the operations c and d for the OUTPUT 2, finally press the TAKE key.

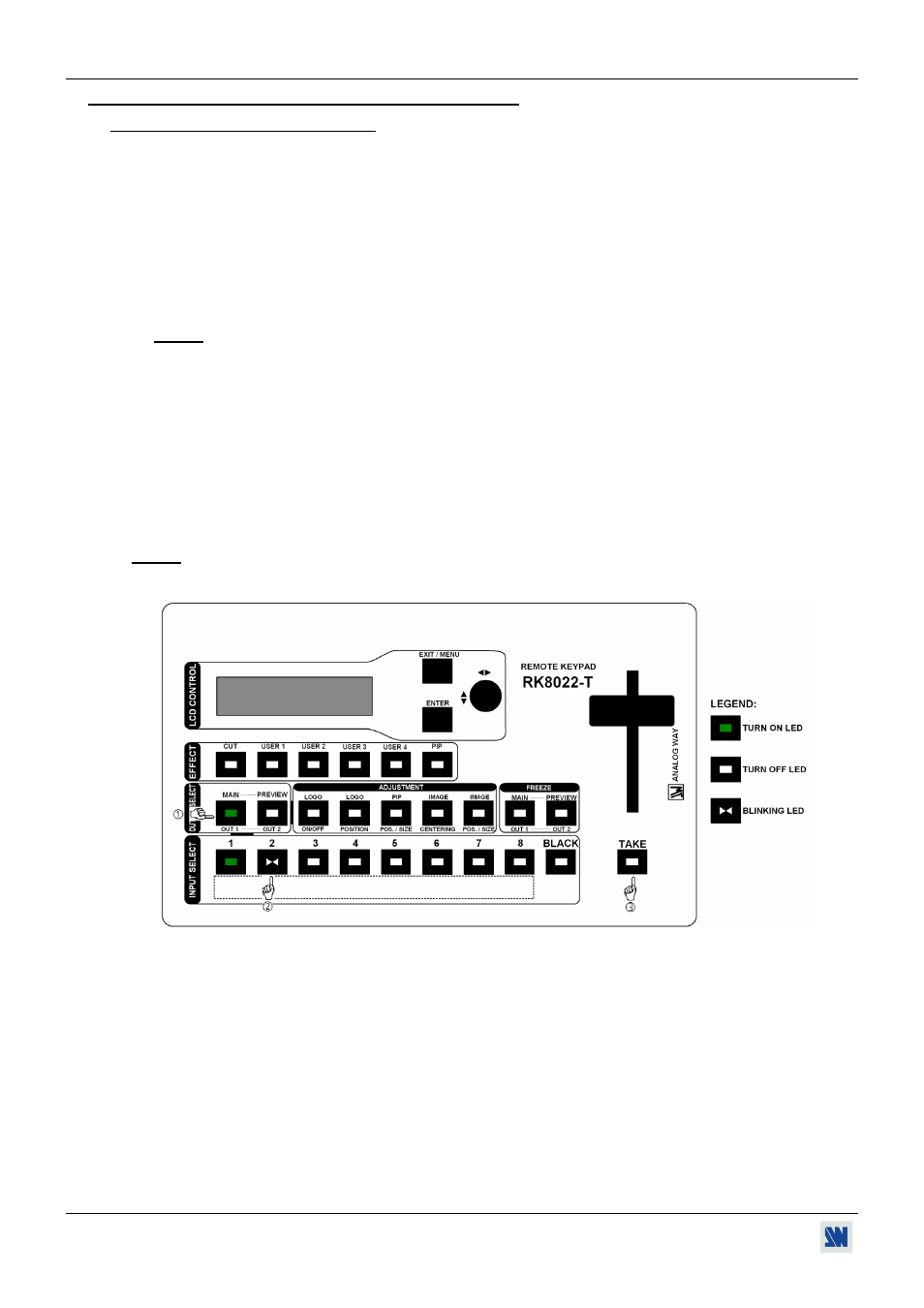

Figure 32
• DISPLAY DEVICES ADJUSTMENTS
For each OUTPUT:
c Select the centering pattern (OUTPUT X > test pattern > centering pattern).
d Adjust directly the display device itself, using its controls, to fill the centering pattern in full screen.
See Figure 18: Centering pattern. Page 18.
