2 Conncting Up/Raccordement
12

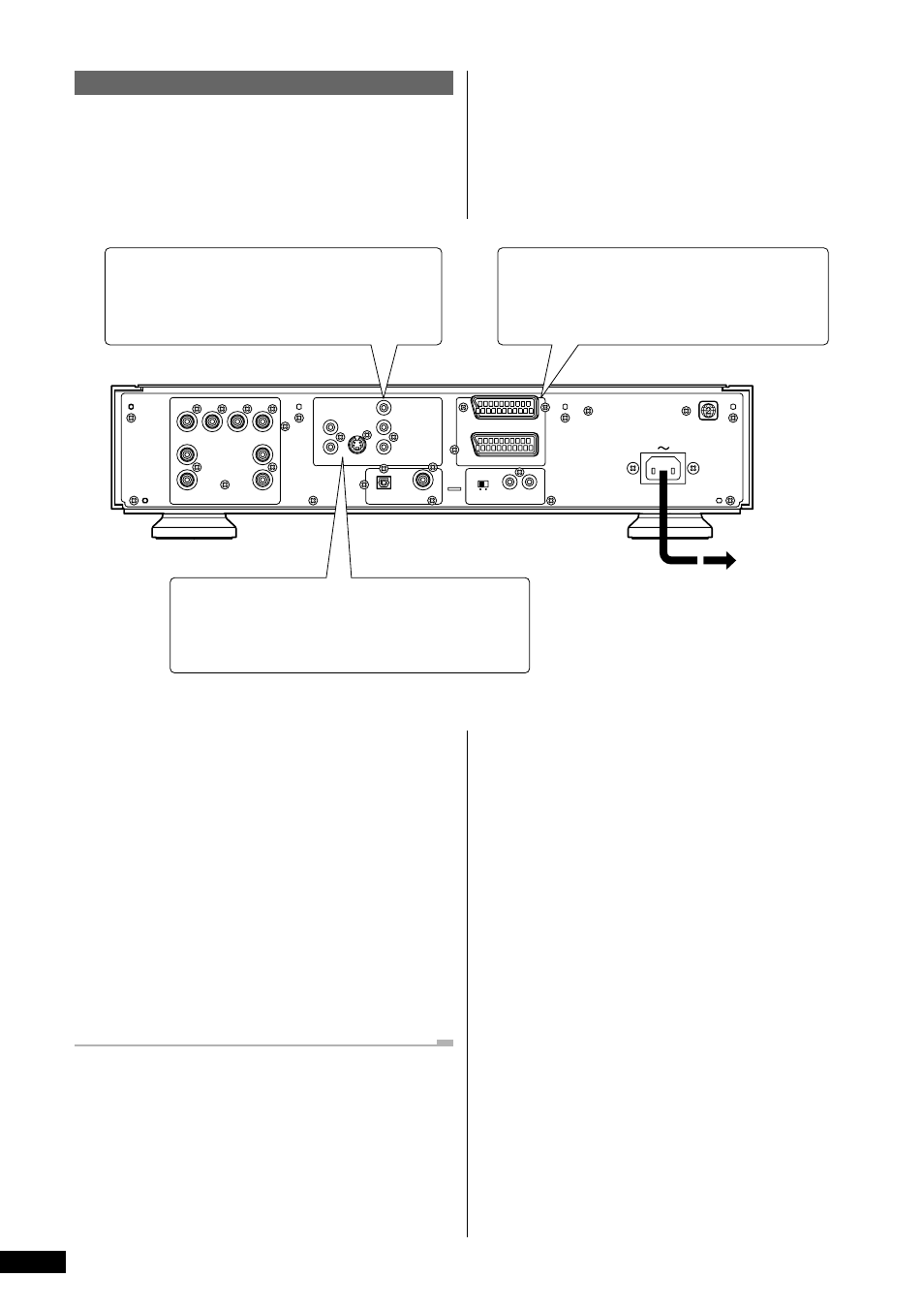

Home theater video connections
Important: Before making or changing any rear panel connec-
tions, make sure that all components are switched off and unplugged
from the wall outlet.
This player outputs video in a number of different ways. Choose the
one most suitable for your system using the guide below.
Connecting SCART and S-Video cables
SCART and S-Video cables will only plug in one way, so make sure the
plug is correctly lined up with the jack before inserting. Be sure to
fully insert for a good connection.
Note: The TV connector can output composite, S-Video or RGB
component video; the AUX SCART connector only outputs
composite video. If you connect just one TV, use the TV connector.
You can select the type of video output by changing the Video
Out setting in the Setup Menu (page 52, 53).
S-Video or composite video?
S-Video should give a better picture, so if you have an S-Video input,
use it. S-Video cables are available from any good audio/visual dealer.
S1/S2
AC IN
R C
B
Y COMPONENT
C
SURROUND
L R
CENTER WOOFER
SUB
LEFT RIGHT
1
2 2
1
VIDEO OUTPUT
OUTPUT
AUDIO COAXIAL OPTICAL
VIDEO
EXTERNAL INTERNAL
2
REMOTE CONTROL DIGITAL OUTPUT
IN OUT
1
A/V EUROCONNECTOR
AUX
TV
2
3
1
If your TV has a SCART input, we recommend using it
to connect directly to the
TV output on this player.
If your TV/monitor has component video inputs instead of
a SCART input, connect them to the
COMPONENT
VIDEO OUT jacks on this player.
If neither SCART nor component inputs are available to you,
connect this player to your TV or AV receiver using either the
VIDEO OUT or s 1/ s 2 - VIDEO OUT jacks.
