2 Conncting Up/Raccordement
10
S1/S2
AC IN
R C
B
Y COMPONENT
C
SURROUND
L R
CENTER WOOFER
SUB
LEFT RIGHT
1
2 2
1
VIDEO OUTPUT
OUTPUT
AUDIO COAXIAL OPTICAL
VIDEO
EXTERNAL INTERNAL
2
REMOTE CONTROL DIGITAL OUTPUT
IN OUT
1
A/V EUROCONNECTOR
AUX
TV
1
2
OUT
IN
REMOTE
CONTROL
3
EXTERNAL INTERNAL
REMOTE CONTROL
IN

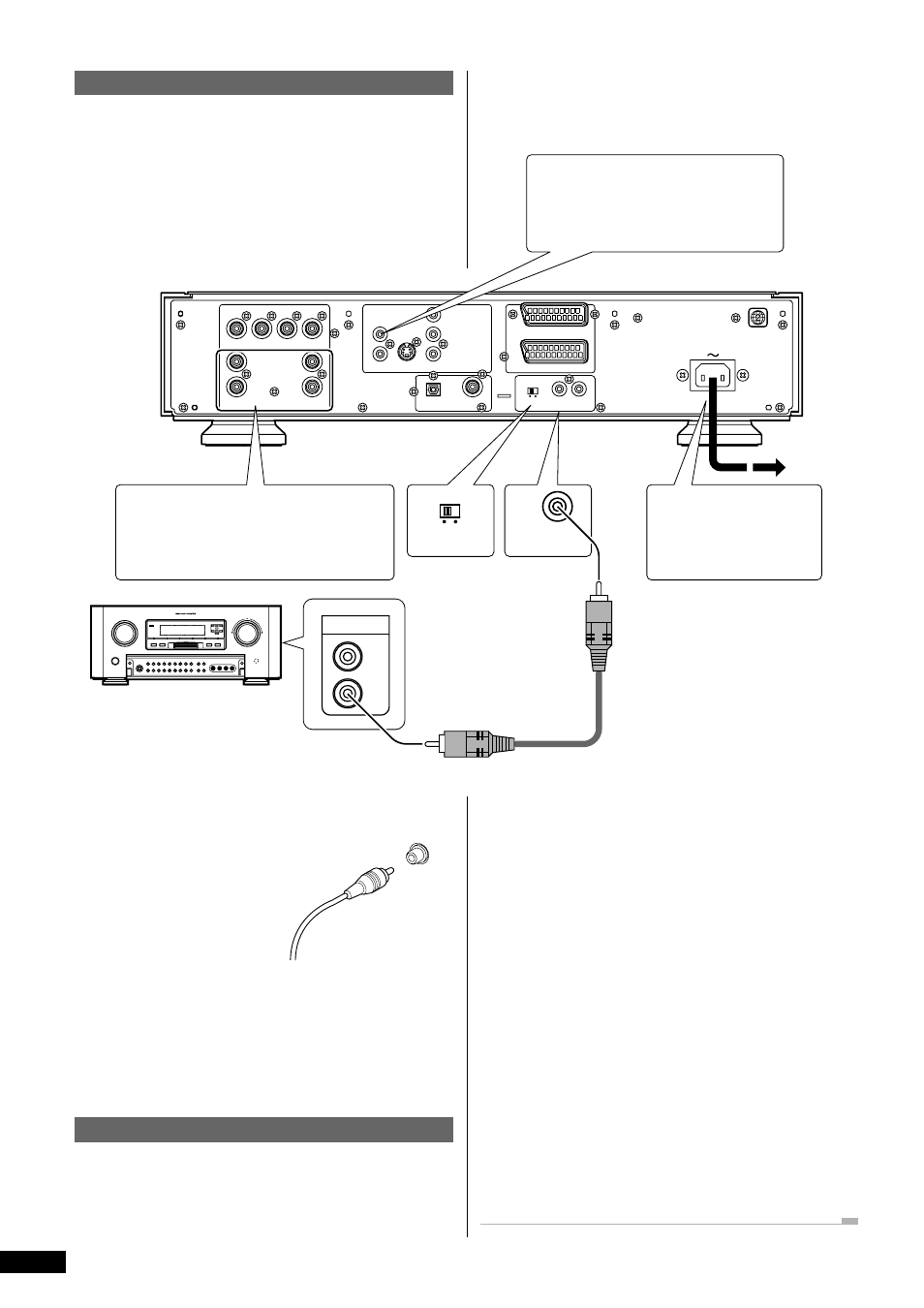

Easy Setup
Important: Before making or changing any rear panel connec-
tions, make sure that all components are switched off and unplugged
from the wall outlet.
This easy setup is the minimum set of connections you need to start
watching DVD video discs. Both sound and picture are fed directly to
your TV using the supplied audio/video cables. For other possible
connections, see pages 12 and 14.
Connecting audio and video cables
Be sure to insert each plug fully for
the best connection. The plugs and
jacks are colour-coded to make
connection easier.
• When connecting to component with a remote sensor (such as the
SR-14, SR-18, SR-19), be sure to connect the “REMOTE CONTROL
IN” jack of this DVD player to the “REMOTE CONTROL OUT” jack
of the component with the remote sensor.
• When connecting to component which is not equipped with a
remote sensor, be sure to connect the component to the “REMOTE
CONTROL OUT” jack of this DVD player.
Synchronized power on and off
• Connect with the remote control output jack of a compo-
nent (such as the SR-14, SR-18, SR-19) which is compatible
with Marantz remote control system. The remote control
allows to switch the power of this DVD player to “POWER ON
and Standby mode”.
Note
be sure to leave power switch on the Front panel in the power mode.
Remote switch
• When using this DVD player independently, set this switch to
“INTERNAL”. When using this DVD player in a system with
a Marantz tuner or timer equipped with a remote sensor,
set the switch to “EXTERNAL.
System Control Connections
REMOTE CONTROL IN/OUT jacks
By connecting this DVD player to another Marantz audio
component using a supplied System Control cable, you can
remotely operate the components as a single system.
Connect to a composite video input on your
TV using the supplied yellow video cable.
Plug into a standard AC wall
outlet. Connect to a pair of stereo audio inputs on your
TV using the supplied red/white stereo audio
cable.
