NOMENCLATURE DES PIÈCES
4-2
powermax30
Service manuel
1

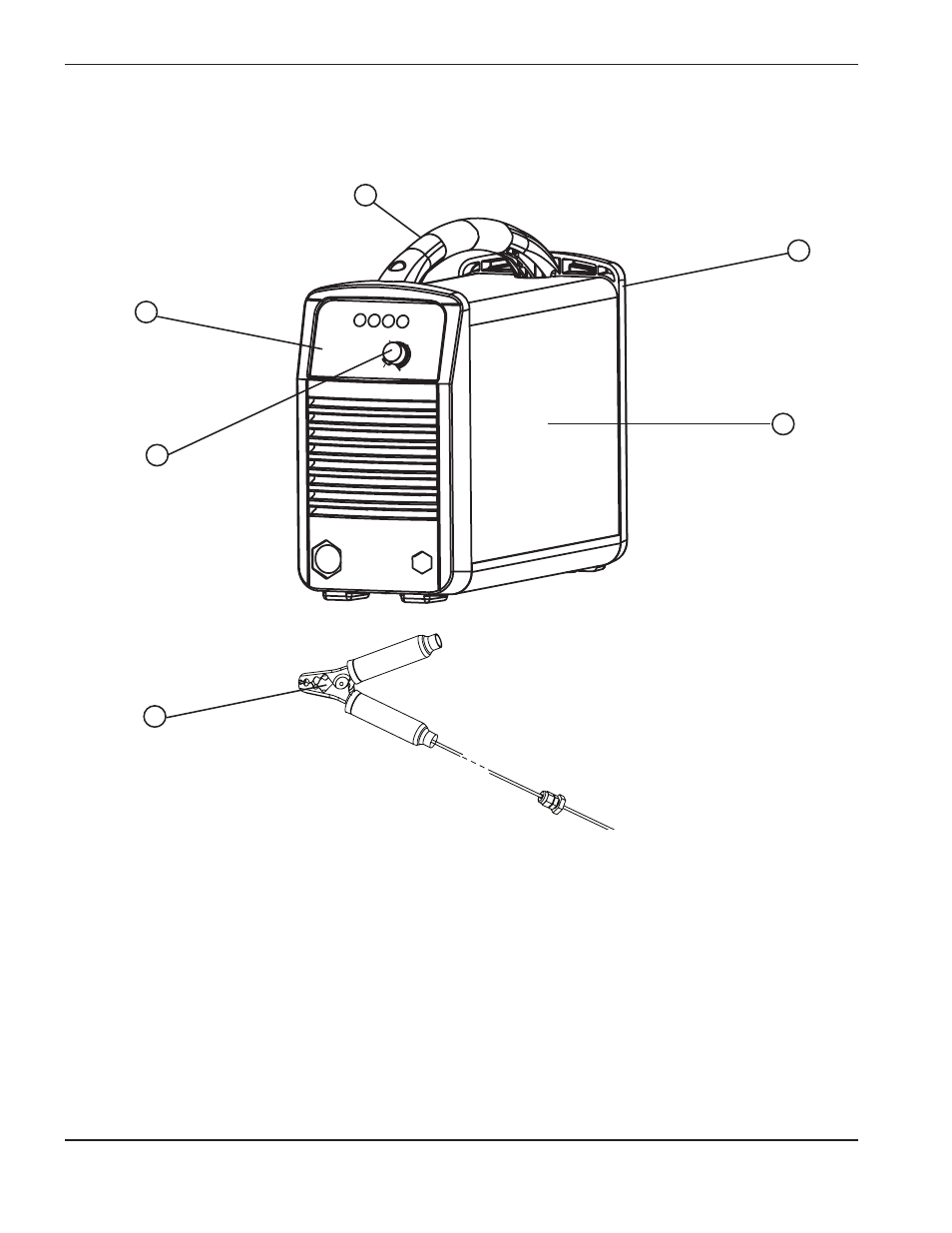

Pièces de la source de courant
Extérieur
Numéro
Article de référence Description Qté
228098 Kit: Labels, domestic 1
228097 Kit: Labels, CE 1
228096 Kit: Screws 49
1 228101 Kit: Front panel 1
2 108616 Current adjustment knob 1
3 123868 Work lead assembly 1
4 229121 Kit: Power supply cover with labels, domestic 1
229122 Kit: Power supply cover with labels, CE 1
5 228100 Kit: Rear panel 1
6 228099 Kit: Powermax30 handle 1
15
30
