Exemple: programmation fk 3 – HEIDENHAIN iTNC 530 (606 42x-02) Manuel d'utilisation
Page 265
Advertising
HEIDENHAIN iTNC 530
265
6.6 Cont
our
nag
e
s – Pr
ogr
ammation flexible de cont
ours FK

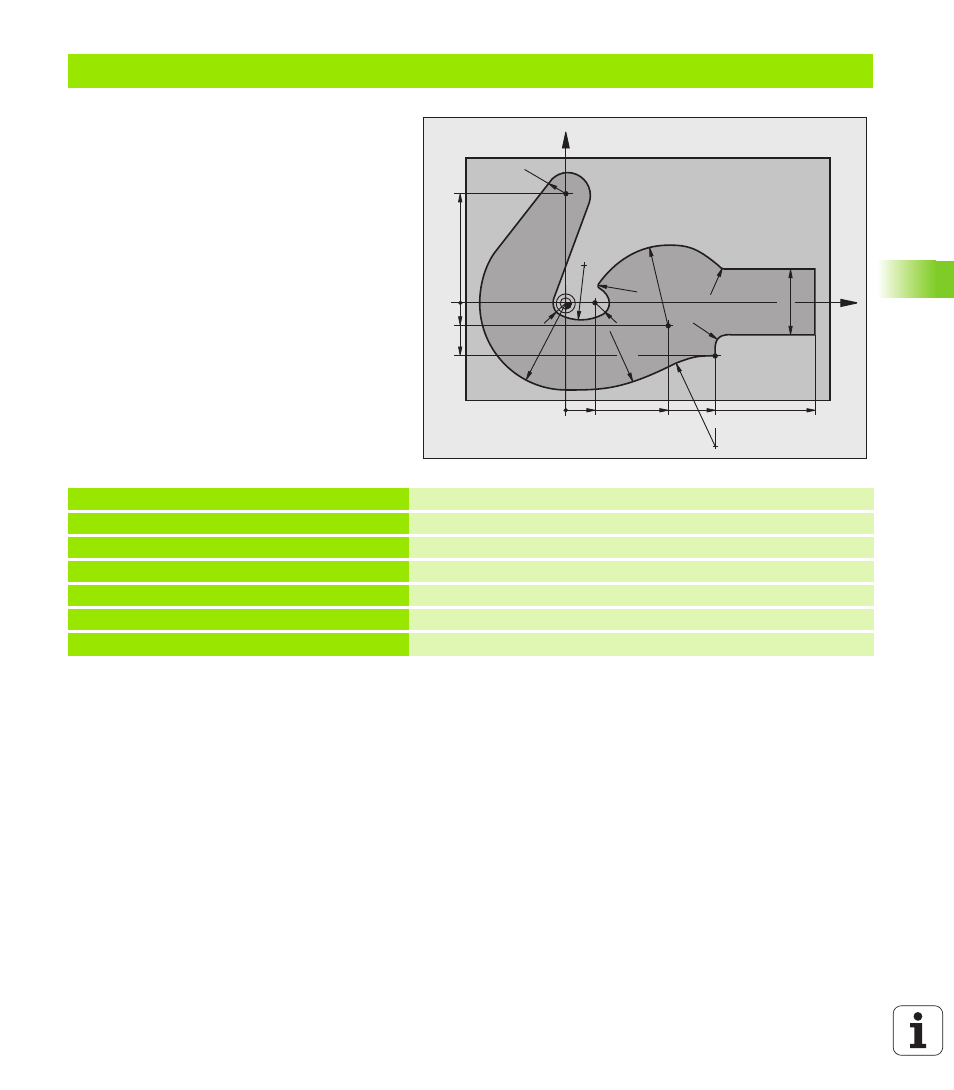

Exemple: programmation FK 3
0 BEGIN PGM FK3 MM
1 BLK FORM 0.1 Z X-45 Y-45 Z-20
Définition de la pièce brute
2 BLK FORM 0.2 X+120 Y+70 Z+0
3 TOOL CALL 1 Z S4500
Appel de l'outil
4 L Z+250 R0 FMAX
Dégager l'outil
5 L X-70 Y+0 R0 FMAX
Prépositionner l’outil
6 L Z-5 R0 F1000 M3
Aller à la profondeur d’usinage
X
Y
110
12
50
-10
44
65
R10
-25
30
R40
R6
R6
R24
R1,5
R36
R5
R5
R65
R50
