PUMP
SHUT OFF VALVE
CHECK VALVE
FILTER
THERMISTOR
FLOW SENSOR
TORCH
FINE FILTER
INTERNAL BYPASS
25', 50', 75' or 100'
Power supply
COLD PLATE
COARSE
DRAIN
POWER LEAD
HEAT EXCHANGER
RESERVOIR

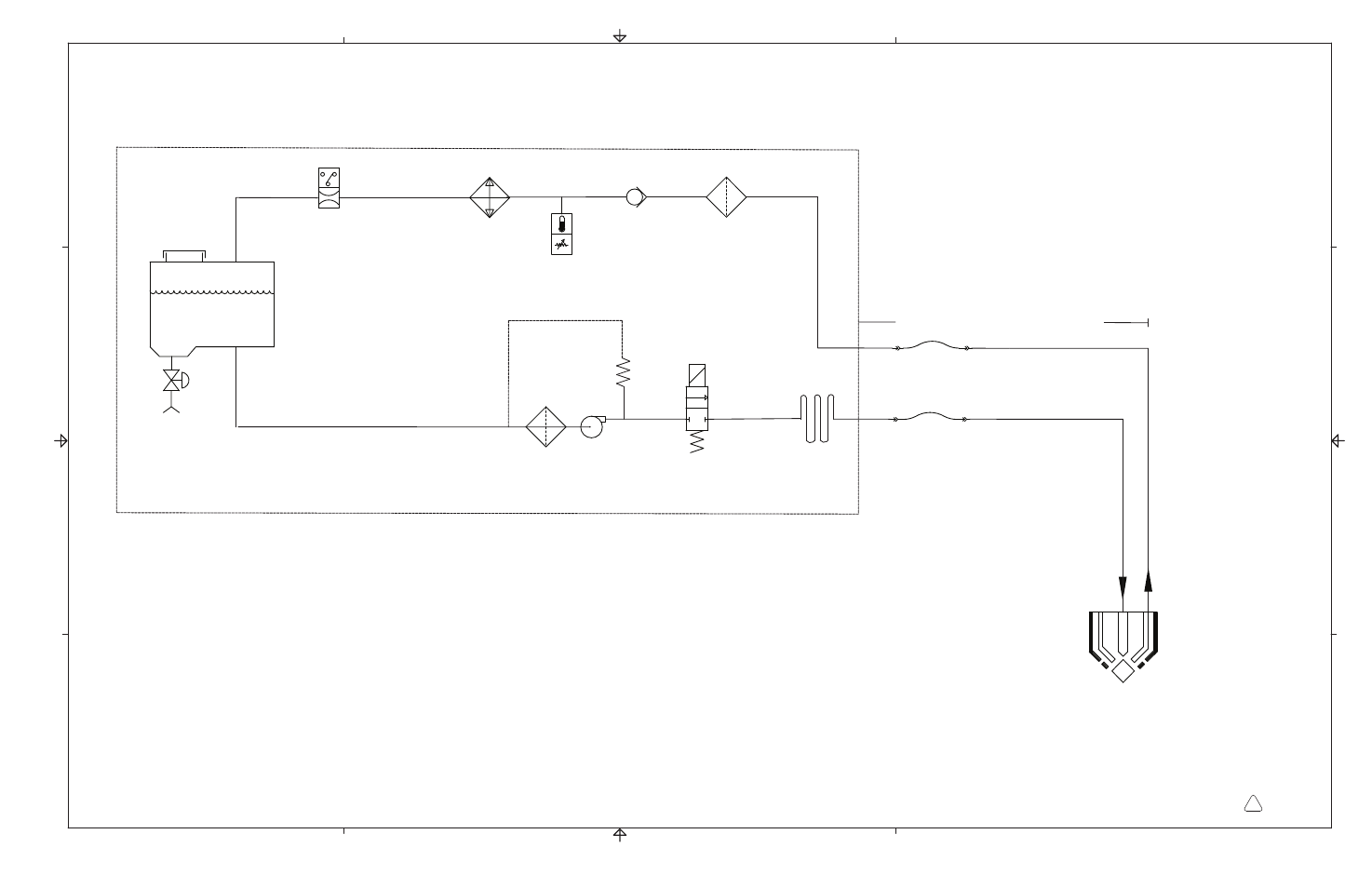

ELEC SCH:MAXPRO200 POWER SUPPLY
A
013384
SHEET 8 OF 9
