6

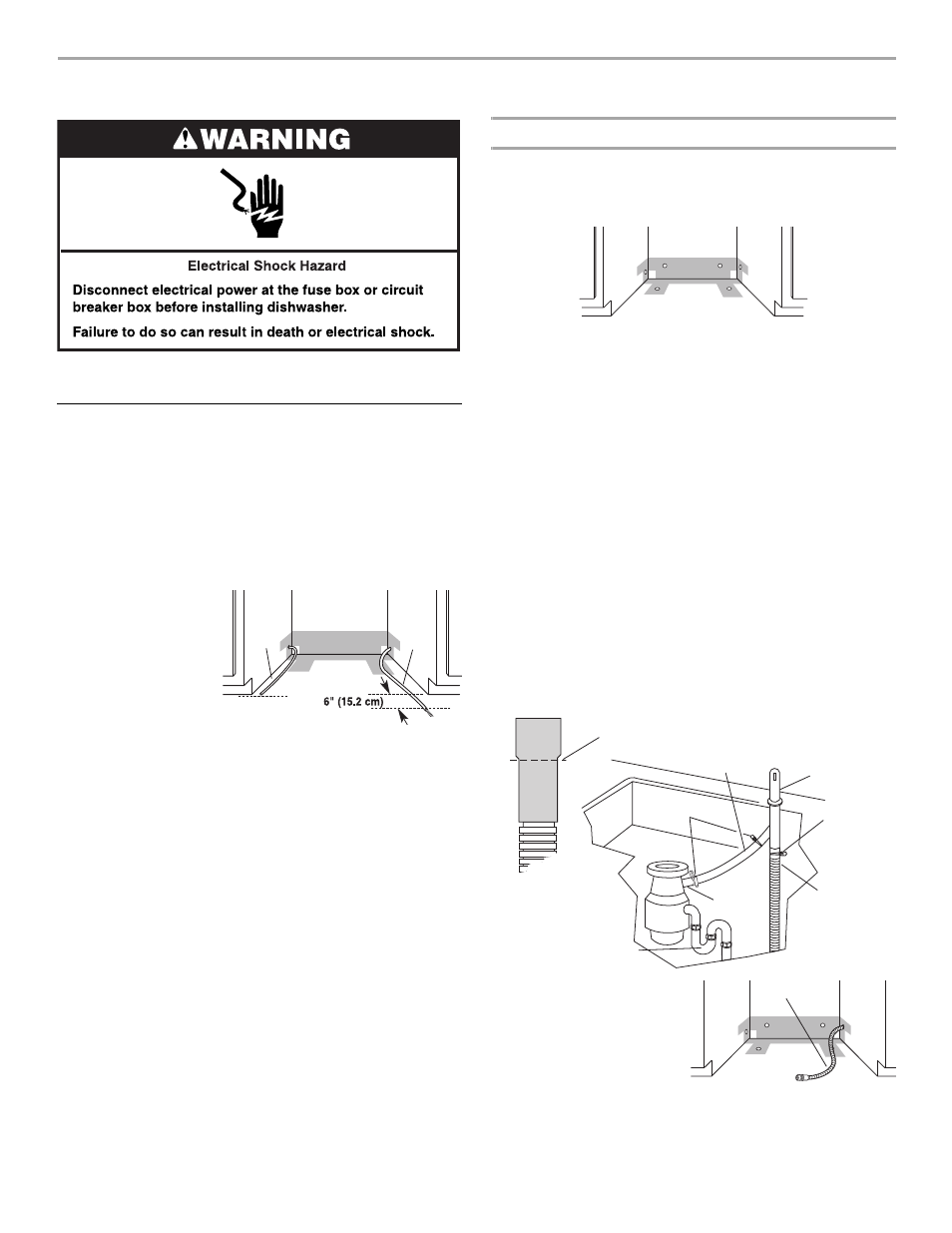

INSTALLATION INSTRUCTIONS
1. Disconnect power.
2. Turn off water supply.
Prepare cabinet opening using existing
utility hookups
■ Follow the steps in this section if you are installing the
dishwasher in an existing cabinet opening with utility
hookups.
■ If you are installing the dishwasher in a cabinet opening that
does not have hookups, follow the steps under “Prepare
cabinet opening where there are no existing utility hookups”
section.
1. Check that the water
line reaches to the
front left of opening
where the water
connection will be
made.
2. Check that the direct
wire reaches to the
front right of opening
where the electrical connection will be made.
If the water line and the direct wire reach far enough into the
opening, proceed to the next section “Install the drain hose.” If
they do not reach far enough, follow the steps under “Prepare
cabinet opening where there are no existing utility hookups.”
Install the drain hose
IMPORTANT: Always use a new drain hose when installing a new
replacement dishwasher.
1. Drill a 1 ¹⁄₂" (3.8 cm) diameter hole in cabinet wall or floor on
the side of the opening closest to the sink.
2. Connect drain hose to waste tee or waste disposer using one
of the following methods:
■ Option 1, Waste disposer – with air gap
■ Option 2, No waste disposer – with air gap
■ Option 3, Waste disposer – no air gap*
■ Option 4, No waste disposer – no air gap*
*An air gap is recommended.
Helpful Tip: To reduce the vibration of the hose, keep the
hose away from the floor and the edge of the hole where it
passes through the cabinet.
Option 1, Waste disposer - with air gap:
1. Remove the disposer knockout plug. Cut end of drain hose if
needed (do not cut ribbed section).
2. Attach drain hose to air gap with large spring-type clamp. If
the drain hose was cut, use a 1 ¹⁄₂" to 2" (3.8 to 5 cm) screw-
type clamp*.
3. Use a rubber hose connector* with spring- or screw-type
clamps* to connect air gap to disposer inlet.
This connection must be before the drain trap and at least
20" (50.8 cm) above the floor where dishwasher will be
installed.
4. Insert drain hose through
hole cut in cabinet to the
front center of opening
where drain connection will
be made.
*Parts available from local
plumbing supply stores.
Water
line
Direct
wire
Drain hose -
cut here if needed
Rubber hose
connector
Air gap
Large
spring-type
clamp
Spring- or
screw-type
clamps
Drain
hose
Disposer
inlet
Drain trap
Drain hose
