10

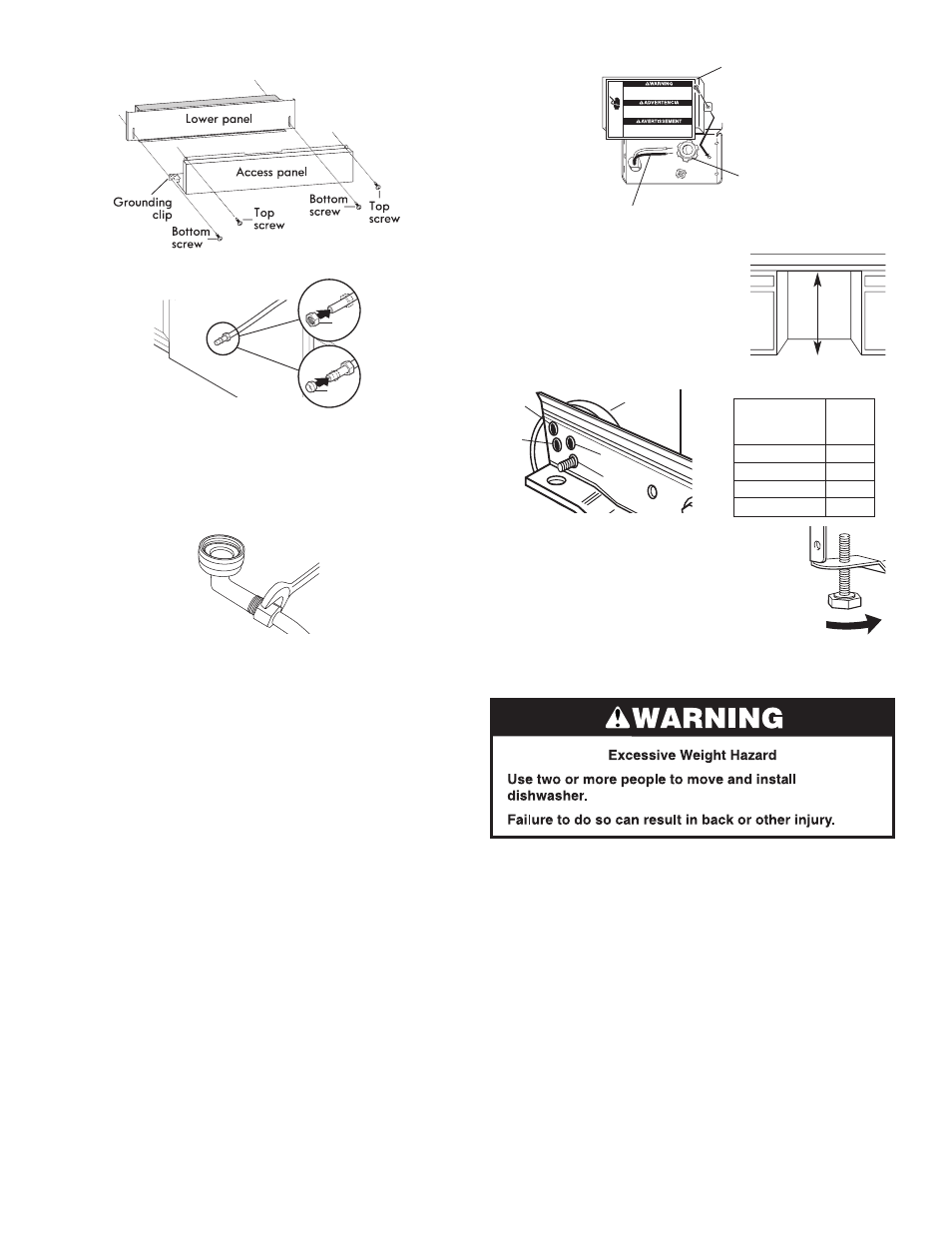

4. Check that grounding clip is attached to the lower panel.
5. Slide nut and ferrule onto tubing.
Copper tubing only: Slide nut, then ferrule, about 1" (2.5 cm)
onto copper tubing.
NOTE: To avoid vibration during operation, route the water
supply line so that it does not touch the dishwasher base,
frame or motor.
6. Add 90° elbow fitting to the water supply line.
Connect the
³⁄₈" compression fitting to the water supply line
prior to installing the unit into the cabinet opening. Attach
such that the
³⁄₄" connection is facing upward.
Copper tubing only: Put the tubing into the 90° elbow fitting
as far as it will go (the copper tubing bends and kinks easily).
Slide the nut and ferrule forward and start the nut onto the
elbow threads. Flexible braided connection: Secure nut to
elbow using
⁵⁄₈" open ended wrench or adjustable wrench.
NOTE: Do not use Teflon ®† tape with compression fittings.
7. Remove terminal box cover.
– If you are direct wiring: Install a UL Listed/CSA Approved
clamp connector to the terminal box. If using conduit, use a
UL Listed/CSA Approved strain relief.
– If you are installing a power supply cord kit, do so now,
following kit instructions. The power supply cord kit must
be UL Listed and marked for use with dishwashers (that is,
Power Supply Cord Kit Part Number 4317824).
†®Teflon is a registered trademark of E.I. Du Pont de Nemours and Company.
8. Measure height of cabinet opening
from underside of countertop to
floor where dishwasher will be
installed (you need the lowest
point). Check chart for that height
opening. Put wheels in the
required position.
9. Turn both front leveler legs to the same
height.
If the minimum cutout height is less than
34" (86.4 cm), the rear wheels can be
removed for additional clearance. This will
allow the dishwasher to fit into a 33
⁷⁄₈"
(86 cm) high cutout, but the dishwasher
will be more difficult to move into position.
If the wheels are removed, cover the floor
when moving the dishwasher.
10. Using 2 or more people, stand the dishwasher up.
NOTE: Do not attach the dishwasher. This will be done later.
Nut
Ferrule
Terminal
box cover
Dishwasher wires
Cable clamp
connector
1
2
3
4
34" (86.4 cm)
34 ¹⁄₈ " (86.7 cm)
34 ⁵⁄₁₆ " (87.2 cm)
34 ¹⁄₂ " (87.6 cm)
1
2
3
4
Wheel
Minimum
cutout height
Wheel
position
Front leg
