4

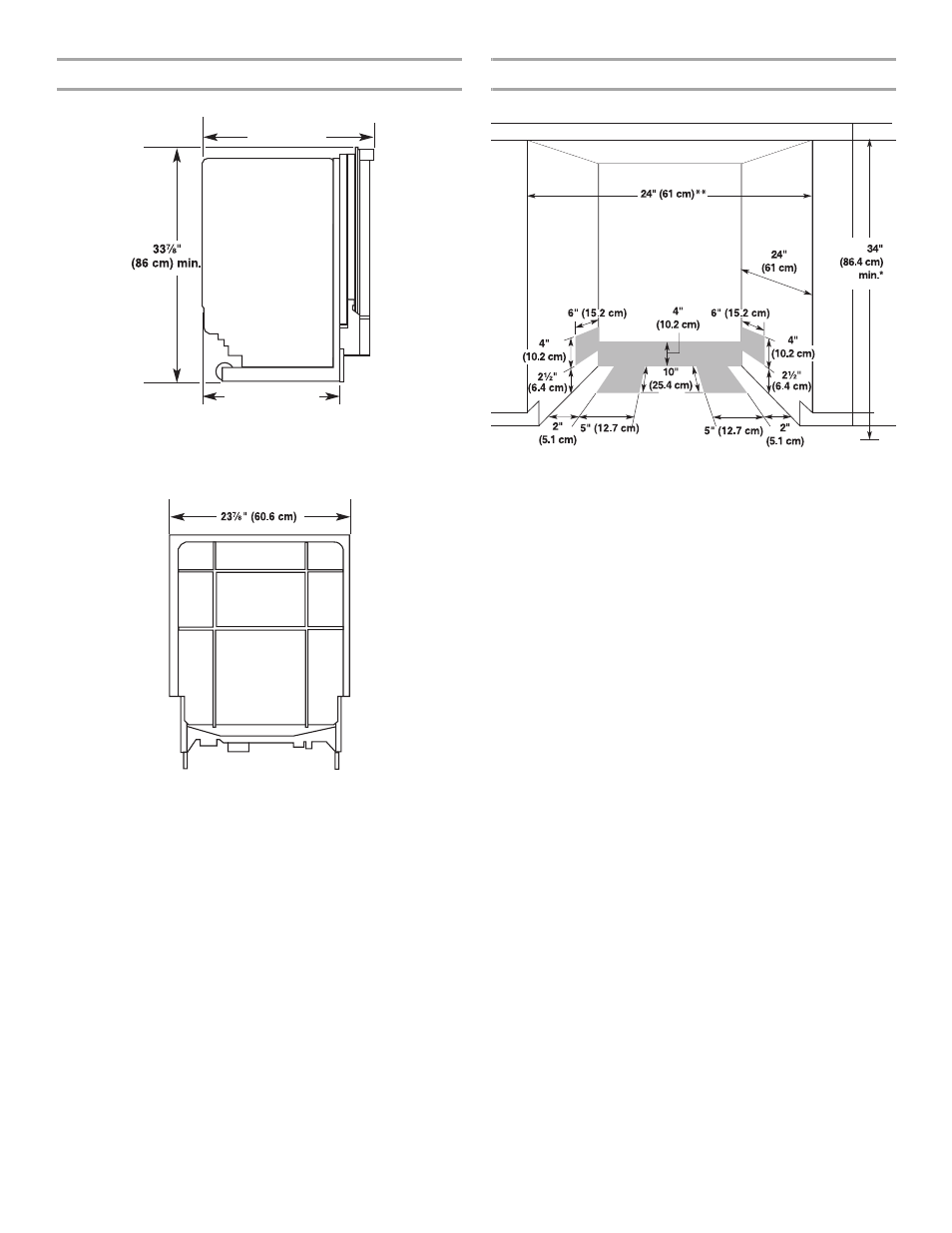

Product dimensions Cutout dimensions
Cut holes in shaded area of cabinet walls or floor as specified
below:
water line –
¹⁄₂" (1.3 cm)
drain line – 1 ¹⁄₂" (3.8 cm)
direct wire – ³⁄₄" (1.9 cm)
power supply cord – 1
¹⁄₂" (3.8 cm)
*Measured from the lowest point on the underside of
countertop.
**Minimum, measured from narrowest point of opening.
*To front of door frame
SIDE VIEW
24" (61 cm)*
20 ³⁄₄ " (52.7 cm)
REAR VIEW
