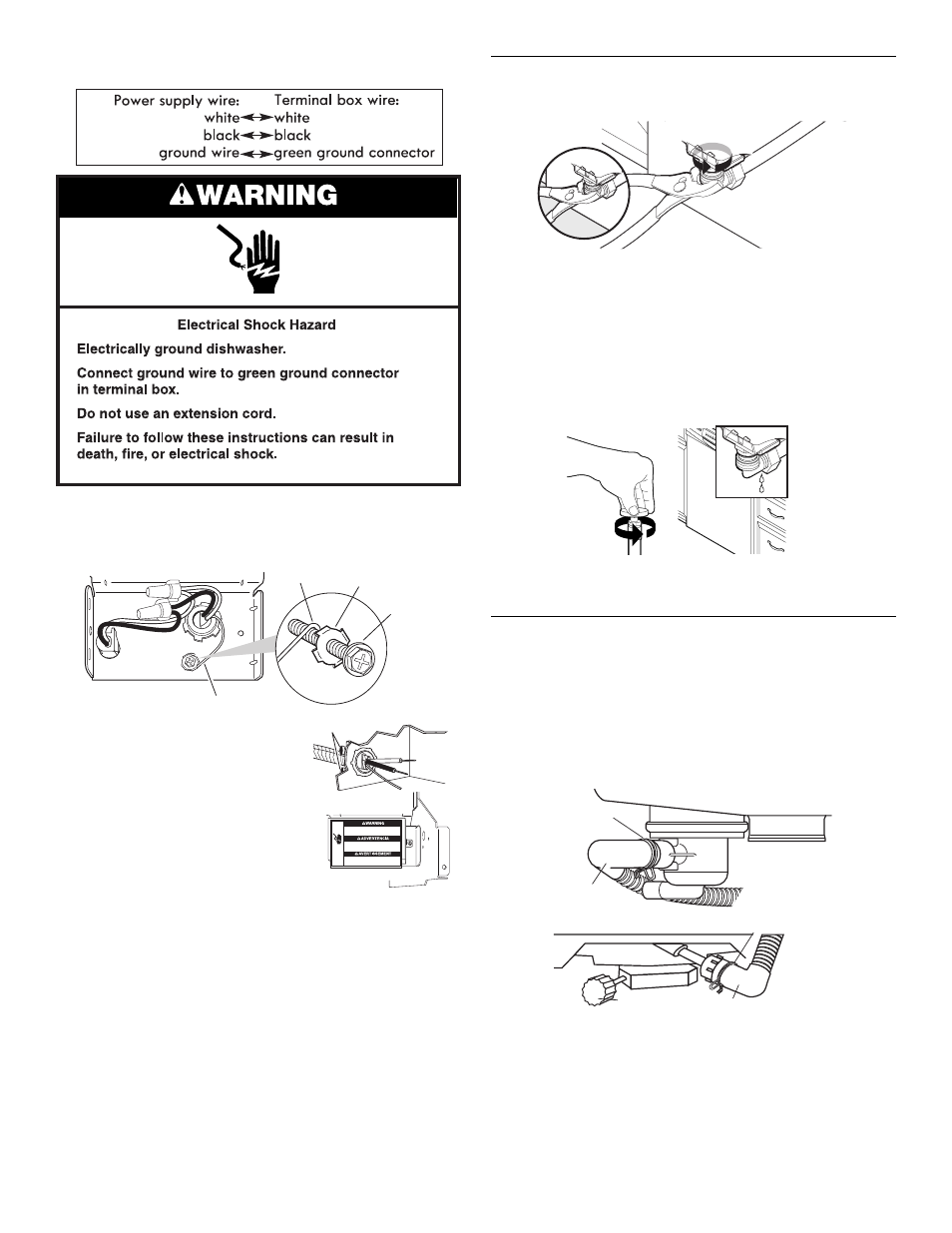

3. Connect the wires as follows using twist-on connectors sized
to connect power supply cord to 16-gauge dishwasher wire:
4. Form bare ground wire into a U-shaped hook. Wrap ground
wire hook clockwise around ground connector and under the
washer.
5. Securely tighten ground connector.
6. Tighten clamp connector or
conduit connector screws.
7. Reinstall terminal box cover with
wires inside terminal box.
The cover must be outside the box
on the left side.
8. Make sure no wires are pinched by
cover.
9. Do not plug the dishwasher cord into the outlet until
instructed to do so.
10. Check that power supply cord does not touch dishwasher
motor or lower part of dishwasher tub.
Connect to water supply
1. Tighten 90° elbow fitting to valve.
Be sure rubber washer is properly seated in fitting. Slide the
³⁄₄" fitting up to the valve and hand tighten to avoid
unintentional cross-threading. Hand tighten until the coupling
is tight. Using pliers, check the tightness of the coupling. An
additional
¹⁄₄ to ¹⁄₂ turn may be required to seal the rubber
gasket.
NOTE: Do not overtighten. Damage to the coupling can
result.
2. Check for leaks.
Place paper towel under 90° elbow fitting. Turn on water
supply and check for leaks. If leak occurs, repeat previous
step.
Connect to drain
1. To help minimize vibration, route drain hose to avoid contact
with motor, door springs, water line, cabinet, flooring or the
edge of the hole where it passes through the cabinet.
2. Place shallow pan under end of drain hose connector. Pan
will collect any water in drain hose.
3. Remove the drain hose connector cap.
4. Put the drain hose clamp onto the drain hose connector.
NOTE: Depending on the model, the drain connector may be
located near the back or front of the dishwasher. For either
location, connect the drain hose to the drain hose connector as
follows:
Ground wire Washer
Ground
connector
Ground wire
Screws
Do not remove
Located near back
Located near front
Hose clamp
Drain hose
Hose clamp
Drain hose
