14
5. Put the spring-type drain hose clamp over the drain hose
connector.
6. Push the drain hose onto the drain hose connector.
7. Use pliers to open the clamp over the drain hose and drain
hose connector. Push the drain hose onto connector as far as
it will go.
Release the clamp. Check that the drain hose is secure.
NOTE: If a screw-type clamp is used instead of spring-type
clamp, use a
⁵⁄₁₆" nut driver to tighten the drain hose securely to
the drain hose connector.

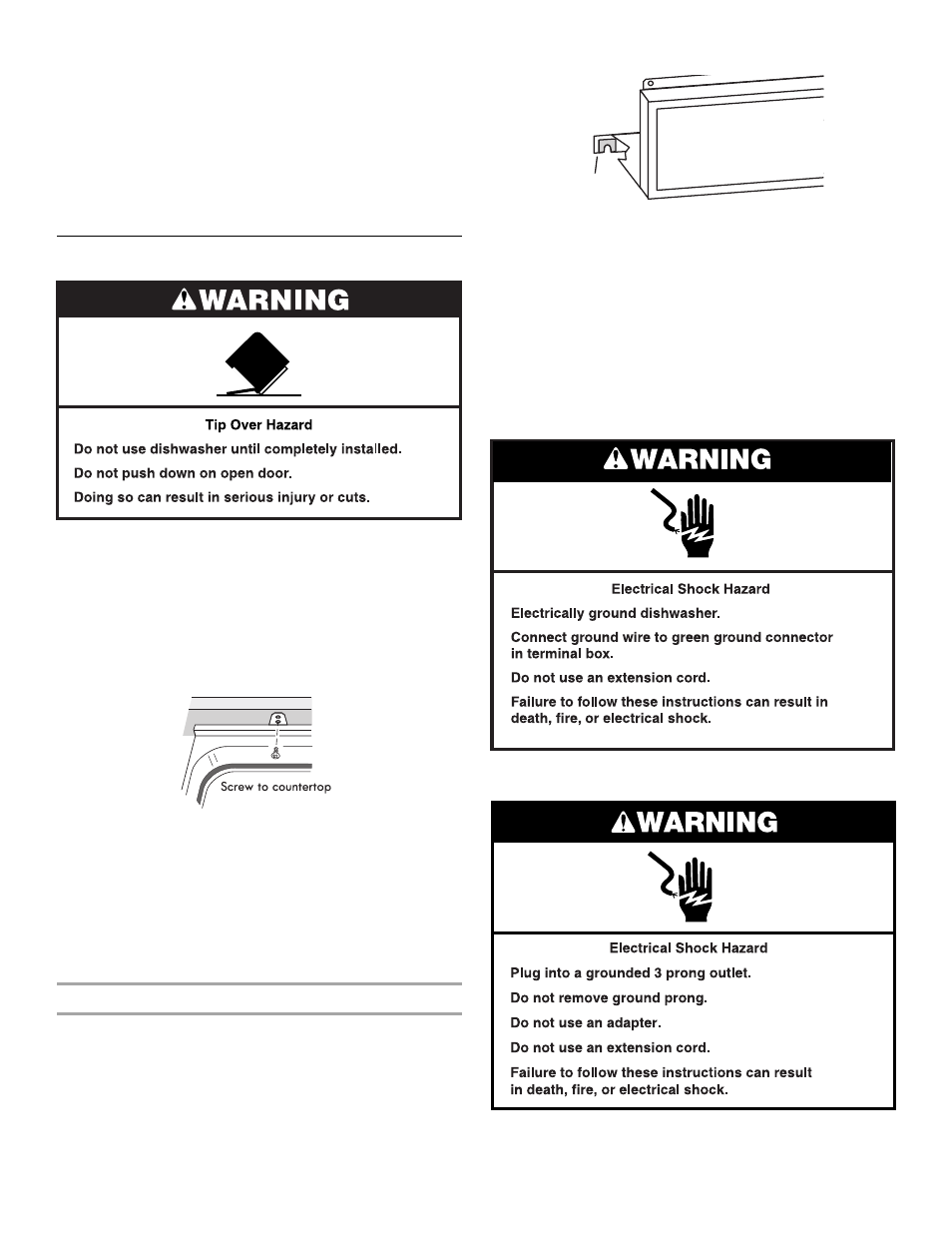

Secure dishwasher in cabinet opening
1. If you have not already done so, open dishwasher door and
place towel over pump assembly and spray arm of
dishwasher. This will keep screws from falling into pump area
if you unintentionally drop them when securing dishwasher to
countertop.
2. Check that dishwasher is still level and centered side to side
in the opening.
3. Secure dishwasher to countertop or sides of cabinet with
two, #10 x ¹⁄₂" Phillips-head screws. The dishwasher must be
secured to keep it from tipping when door is opened.
4. Open door about 3" (7.6 cm) and check that space between
inner door and tub is equal on both sides. If spacing is not
equal, loosen bracket screws and shift tub. Tighten bracket
screws.
5. Check that top of door does not contact screws, brackets, or
countertop. If it does, dishwasher must be lowered and re-
leveled.
6. Remove towel from dishwasher.
7. Reinstall the lower dish rack.
Complete installation
1. Check that grounding clip is attached to the access panel.
2. Start the screws in the lower panel holes on the dishwasher.
Do not tighten.
3. Place the lower panel behind the access panel.
4. Slide the lower panel over and down onto the screws.
5. Hold the 2 panels together and place them against the
dishwasher leg.
6. Reattach the access panel to the dishwasher.
7. Reinstall the screws through the holes in the access panel
and the slots in the lower panel. Install the right side screw
first.
8. Check that the lower edge of the lower panel contacts the
floor.
9. Tighten the screws.
Direct wire method:
Power supply cord method:
10. Reconnect power or plug in dishwasher.
Grounding
clip
