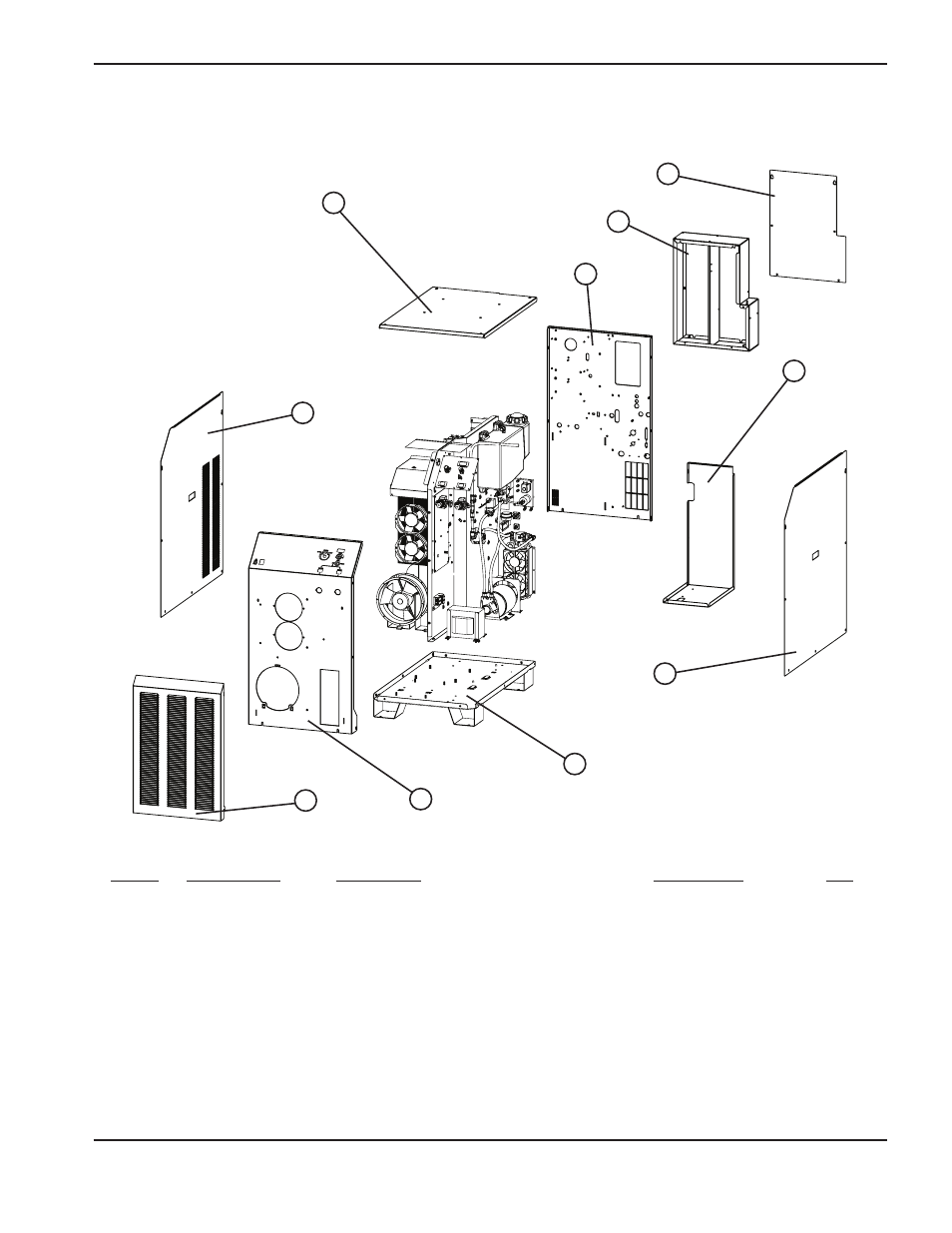

NOMENCLATURE DES PIÈCES
HySpeed HSD130 Manuel d’instructions 6-3
Source de courant
Numéro
Article de référence Description Désignation Qté
1 001963 Cover: power supply 1
2 001965 Cover: LHF rear box 1
3 001964 Enclosure: LHF rear box 1
4 001960 Panel: power supply rear 1
5 001966 Enclosure: power supply PCB 1
6 001962 Panel: power supply left side 1
7 001810 Base: power supply 1
8 001957 Panel: power supply front 1
9 001958 Panel: fan cover 1
10 001961 Panel: power supply right side 1
1
3
4
5
6
7
9 8
10
2
