8
ENGLISH

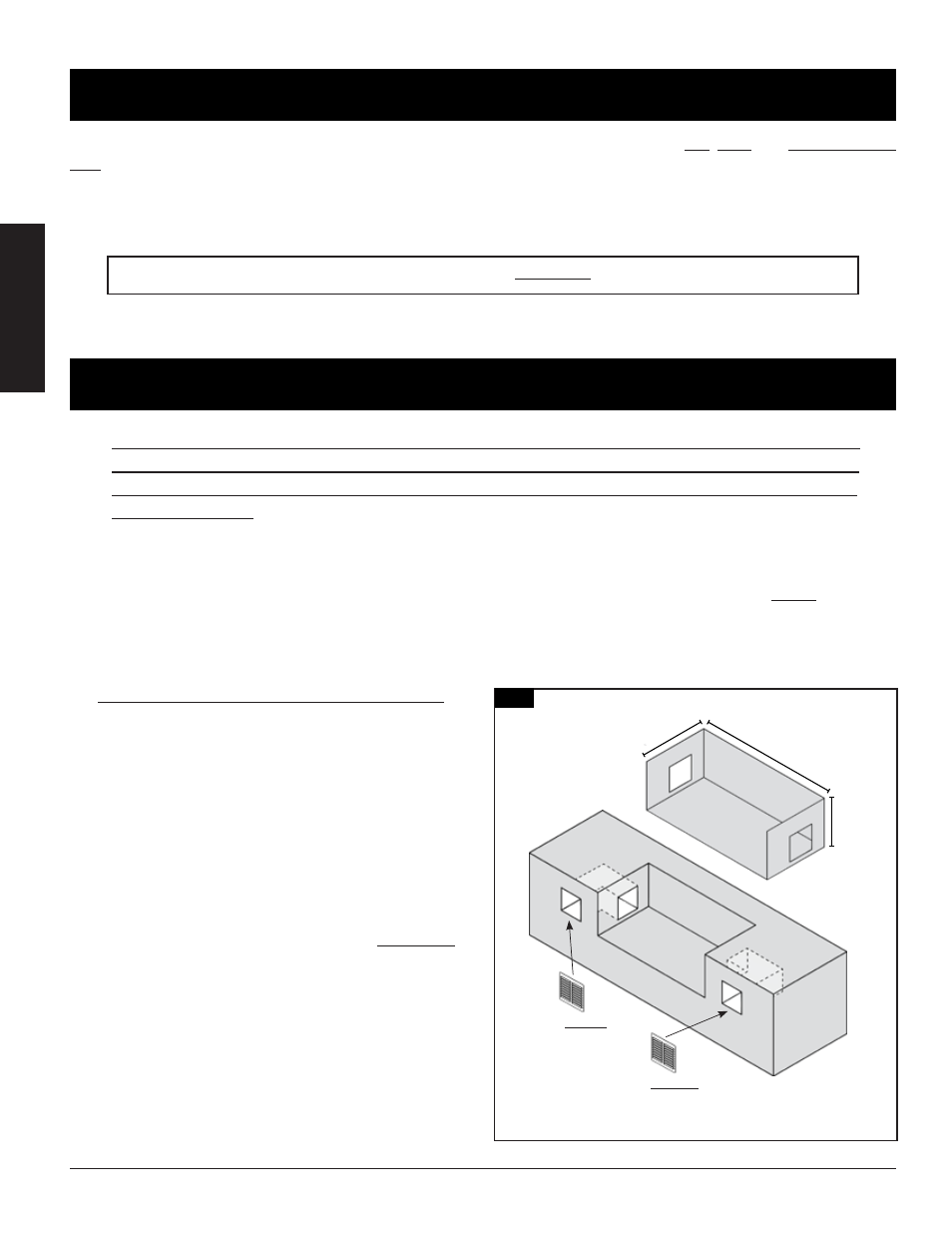

LG860BI (BUILT-IN) INSTRUCTIONS
MAJOR CAUSES OF APPLIANCE FIRES ARE A RESULT OF POOR MAINTENANCE AND
A FAILURE TO MAINTAIN REQUIRED CLEARANCE TO COMBUSTIBLE MATERIALS. IT IS
IMPORTANT THAT THIS PRODUCT BE INSTALLED IN ACCORDANCE TO THE FOLLOWING
INSTRUCTIONS.
Building an outdoor kitchen is possible with the right planning and measurements. Good air ventilation, clearance from
combustibles, and proper care and maintenance are key factors to consider before installation.
IMPORTANT: As a built-in project is complex, we recommend knowing the dimensions of your appliance before attempting
installation. It is also highly recommended to seek assistance of trade professionals when planning your outdoor cooking
space. As simple or elaborate as your project may be, each contractor will have concerns regarding the placement of
materials, safety clearances, proper ventilation, electric routing, etc.
1. PREPARING THE SUPPORT STRUCTURE
The unit has been designed to sit in a cavity, or cutout, of
an outdoor kitchen. Planning and proper care should be
made to ensure there is sufficient air ventilation for the
unit to operate properly in the support structure. Note
illustration 1A.
Prepare a masonry support structure, such as brick,
building stone, cast stone, or concrete block. Other non-
combustible support structures , such as cement base
board, metal studs or framing may also be used. The unit
can be installed without additional insulation; however,
proper care must be taken to ensure that it is not installed
under or on any combustible materials.
Parts Required:
2 x Air Register Vent Cover (#A1)
Installation:
• Install the air register vent covers to the air
ventilation openings. Choose a fastener appropriate
to your support structure material (hardware not
included).
ASSEMBLY PREPARATION
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill
before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt
to assemble. Shipping damage is not covered under warranty. Contact your dealer or Louisiana Grills Customer Care for parts.
[email protected] | USA: (480) 923-9632 | CANADA (TOLL FREE): 1-877-942-2246
IMPORTANT: To ease installation and avoid injury, use two people when assembling this appliance.
Tools required for assembly: screwdriver. Tool included.
1A
1113.2
mm / 43.83 in
527.1
mm
/ 20.75 in
388.5mm
/ 15.3 in
NON-COMBUSTIBLE
SUPPORT STRUCTURE
203.2mm x
203.2mm
/ 8.0 in x 8.0 in
Air Supply
Ventilation
203.2mm x
203.2mm
/ 8.0 in x 8.0 in
Air Exhaust
Ventilation
