10
ENGLISH

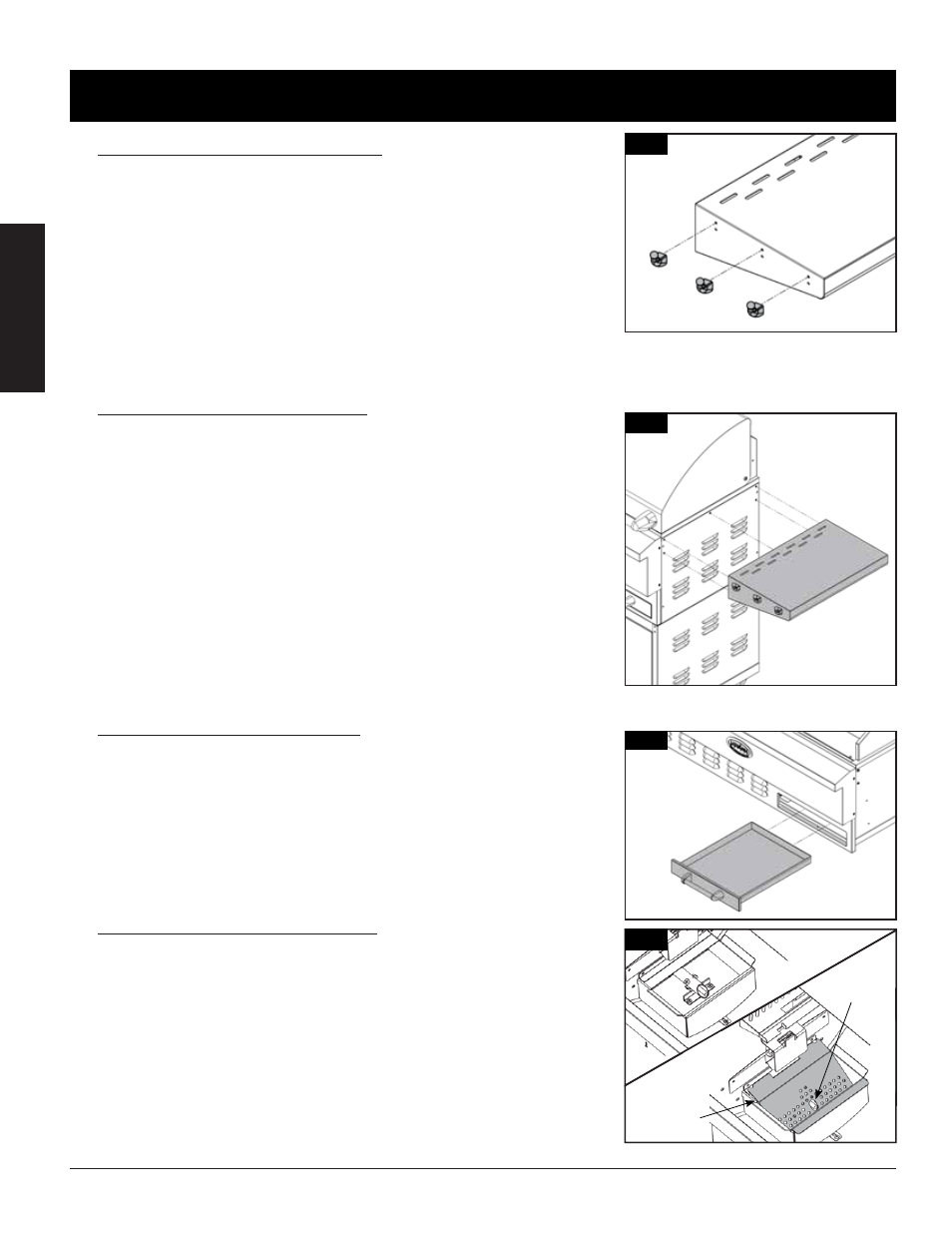

LG860C ASSEMBLY INSTRUCTIONS
1
2
3
4
IGNITER
CURVED
LIP SITS
FLUSH
1. ASSEMBLING THE SIDE SHELVES
Parts Required:
2 x Side Shelf (#9)
6 x Tool Hook (#B1)
6 x Screw (#B3)
Installation:
• Align tool hook with a set of holes on the outside edge of the side shelf. From
underneath, secure the tool hook with a screw, using the bottom hole as an
anchor for proper took hook alignment. Secure the other two tool hooks on
same the edge. Repeat same installation for other side shelf.
2. MOUNTING THE SIDE SHELVES
Parts Required:
10 x Screw (#B2)
Installation:
• Each side shelf requires five screws to mount to the unit. From underneath,
secure the side shelf to the side panel of the main grill.
NOTE: Do not tighten any screws completely until all screws have been
installed. Once all screws are installed, then tighten securely.
• Repeat same installation for other side shelf.
IMPORTANT: Avoid using the side shelves to move or lift the grill. The
weight of the unit will cause the side shelf to break, which is not covered
by warranty.
3. INSERTING THE GREASE TRAY
Parts Required:
1 x Grease Tray (#7)
Installation:
• Slide the grease tray into the tray opening on the front panel of the unit. The
grease tray is completely inserted once the front of the tray is flush with the
front panel of the unit.
4. POSITIONING THE BURN GRATE
Parts Required:
1 x Burn Grate (#5)
Installation:
• A proper placement of the burn grate is vital to the use of the unit. Insert the
burn grate into the fire pot. The hole in the burn grate should align and be
open for the igniter to light the pellets. To verify proper positioning, ensure
the lip of the burn grate is flush with the top of the fire pot.
