Scotsman EH222 D with ECC Condensing Unit - Manuel (Page 6)

EH222 D and Condensing Unit
Remote Low Side Cuber User Manual
October 2014
Page 6

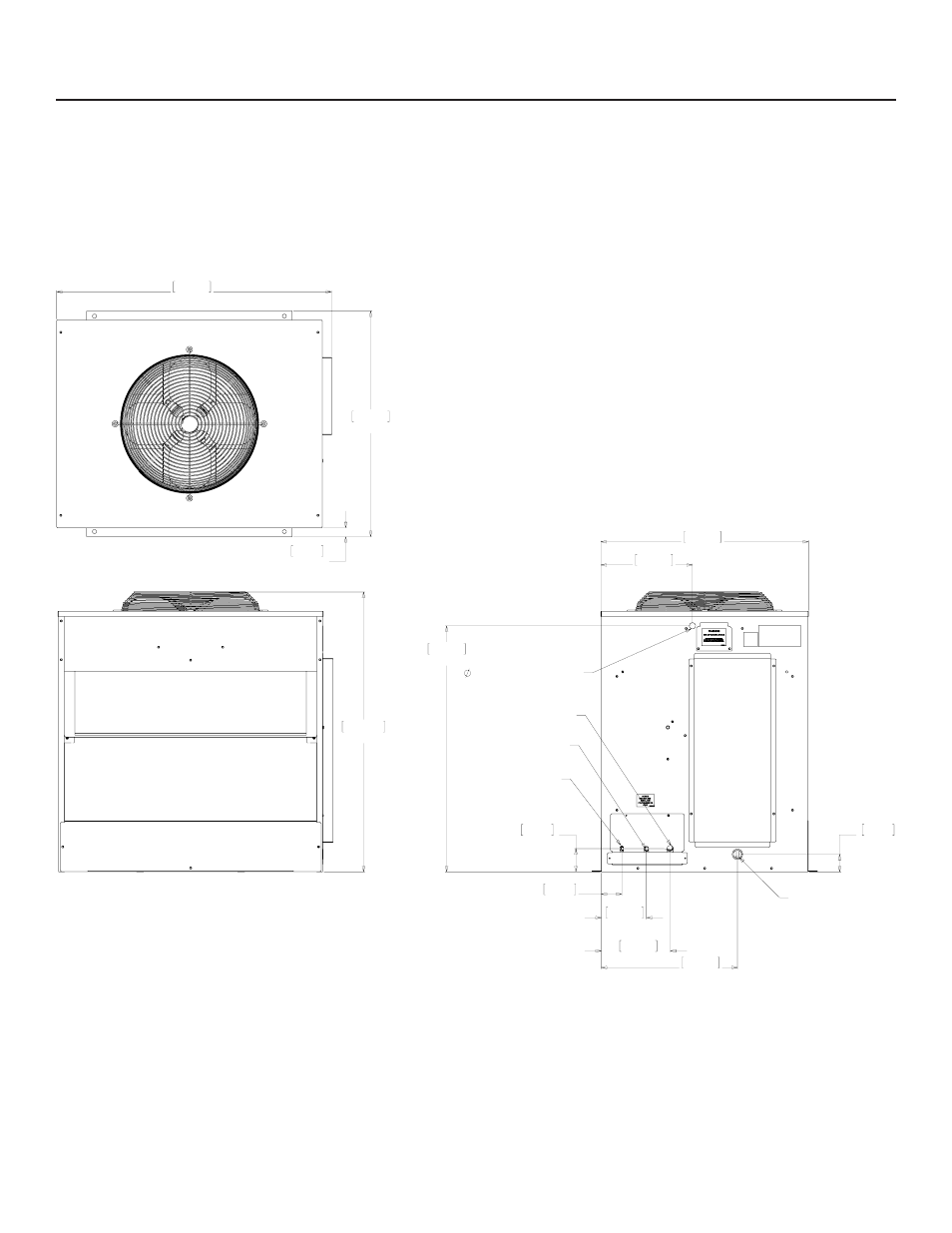

Cabinet Drawings, Condensing Unit
992.81
39.09
814.22
32.06
32.05
1.26
TYP.
TOP VIEW
1009.65
39.75
FRONT VIEW
83.67
3.29
74.12
2.92
163.02
6.42
248.87
9.80
491.69
19.36
63.50
2.50
887.73
34.95
750.06
29.53
330.86
13.03
SIDE VIEW
LINE SET AND ELECTRICAL ATTACHMENT SIDE
1/2" COOL VAPOR LINE
3/8" LIQUID LINE
3/4" SUCTION LINE
.88" ELECTRICAL INLET
INTERFACE HARNESS
ACCESS HOLE
