Adjustable Ice Level Control
There is an adjustment post and an additional
indicator light to the right of the four indicator lights.
The ultrasonic ice level control allows the user to
control the point that the ice machine will stop making
ice before the bin or dispenser is full. Reasons for this
include:
• Seasonal changes in ice used
• Planning to sanitize the bin
• Certain dispenser applications where maximum
ice level is not desired
Use of control
There are several positions the ice level can be set
to, including Off (knob and label indicators lined up),
where it fills the bin until the standard bin control shuts
the machine off.
Rotate the adjustment post to the desired ice level.
The machine will fill up to that level and when it shuts
off the indicator light next to the adjustment post will
be On.

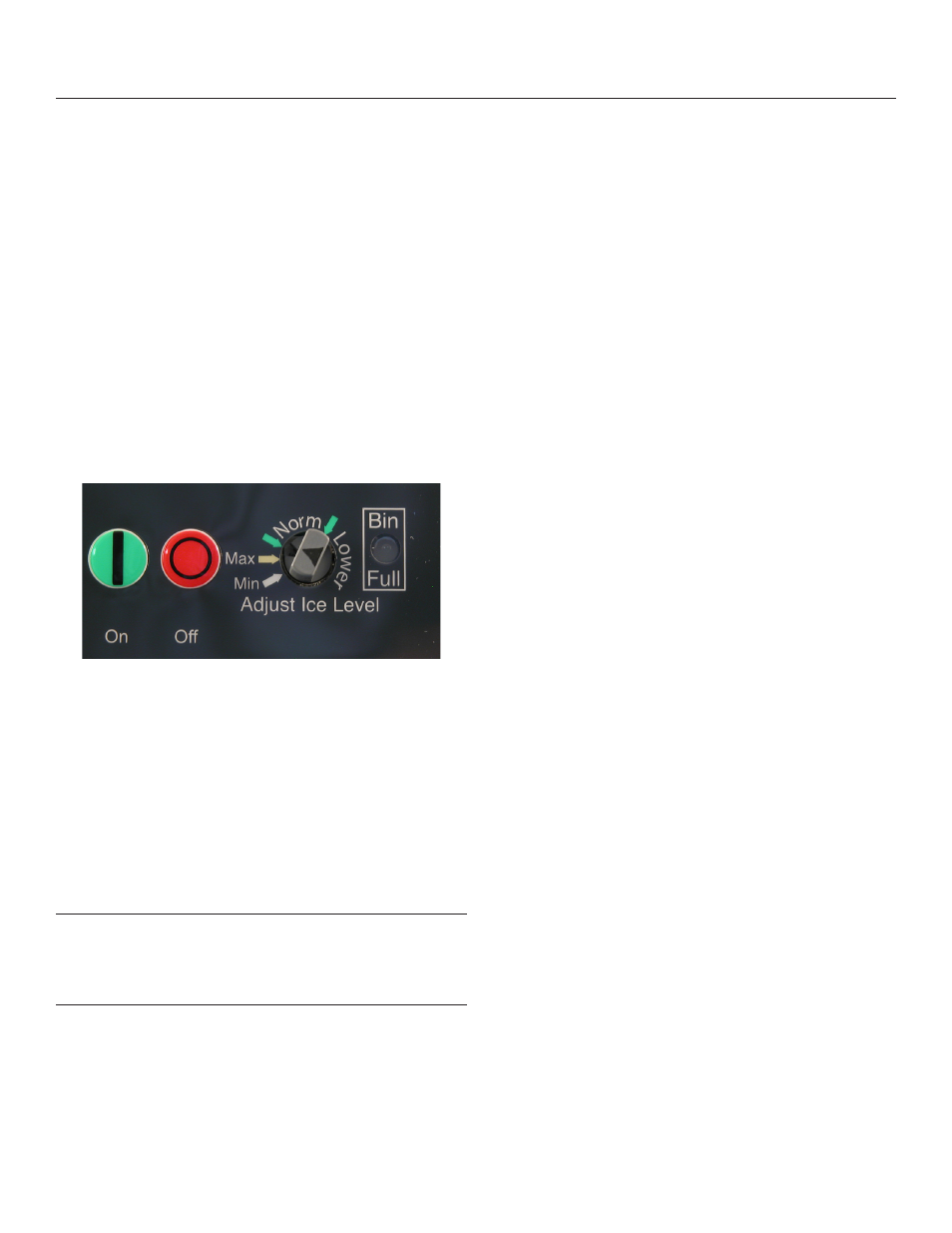

Suggested Adjustment Knob Position for use with the
ABS or Freestyle: first CW position - as shown above.
DO NOT ADJUST TOO LOW OR THE MACHINE
WILL STOP MAKING ICE
Note: Ice will build up in the bin or dispenser at an
angle, the distance set will be from the sensor to the
top of the ice. The sensor position is shown in the
cabinet layout diagrams.
The actual distance between the highest point of the
ice may be closer or further away than the distance
set, depending upon the angle of the ice.
Ice
The cuber drops ice in large sections. That ice will
break up into random parts as it falls into the bin, but
some large sections may remain on top of the ice
in the bin. In a dispenser this ice will break up into
mostly individual cubes as the dispense mechanism
moves the ice.
Noise
The ice machine will make little noise when it is in
ice making mode. The compressor and fan motor are
remote from the ice making head. The water pump
in the ice making head will produce some sound. It
is also normal to hear some cracking just before the
harvest cycle begins. In addition, during the harvest
cycle the harvest assist solenoid will click twice as it
pushes the ice out and returns to its normal position.
The ice harvests as a unit or slab, which makes some
noise when it impacts the bin or dispenser. These
noises are all normal for this machine.
