Place Ice Making Head
Remove from carton.
Place adapter kit onto bin or dispenser top. If adapter
does NOT have gasket tape install tape such as
Scotsman part number 19-0503-04. The adapter to
ice head base MUST be sealed with gasket tape or
food grade sealant.
Attachment
ABS (Automatic Beverage Dispenser) in drive up
installations: Route refrigerant tubing and install drain
and water supply tubing onto ice making section
before placing unit on the dispenser.
Place EH222 onto adapter, do not secure at this time.
Uncoil power cord and route to the power supply.
Plug interconnecting control wire to the wire harness
in the ice making head.
Located at the top panel:
• Refrigeration connections.
• Interconnecting control wire.
• Access port for water supply.
• Power cord.
The drain may be routed to the left or right, allowing
the ice making section to be placed with its back tight
against a wall.
Water and Drain
The ice maker requires an adequate potable water
supply and a gravity drain.
Determine how the drain will be connected to the ice
making section.
• If access is available behind the unit, route the
drain in from the back.
• If the unit is to be flush mounted to the back of
the dispenser and tight against the wall, route the
drain out either the left or right.
In some tight situations it will be necessary to
assemble the ice making section to the dispenser or
bin and install the water and drain connections before
placing the system in its installed position. A loop of
water supply tubing will aid movement of the system.
In other tight situations the unit should have its water
and drain tubing connected and stubbed out before
placing on the dispenser or bin.
The drain fitting is adaptable to drain connections to
the left, right and back.
The unit is shipped ready to drain right. The drain
fitting elbow with PVC adapter can be rotated to drain
right, left or back.
Drain Fitting

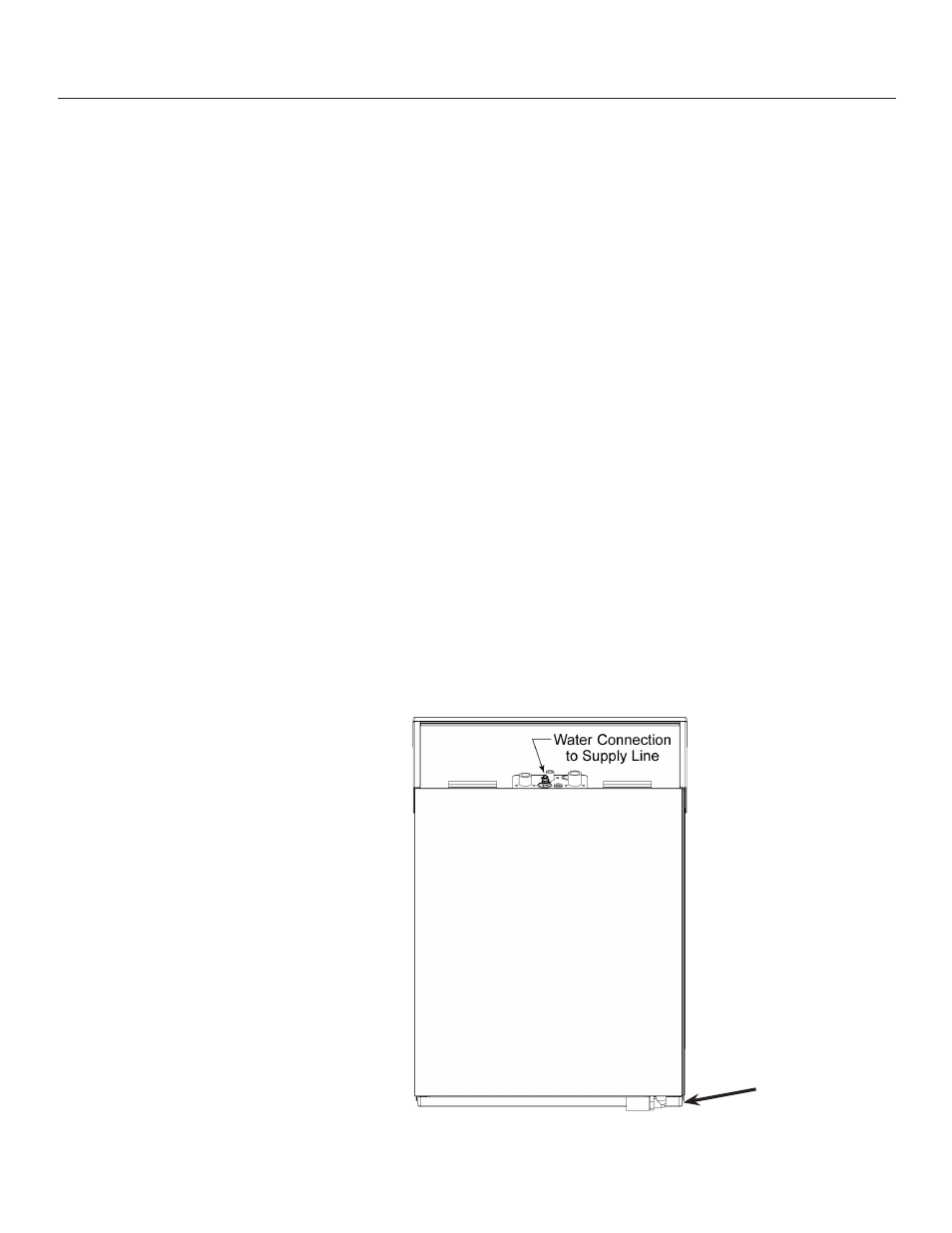

EH222 Back View
