16
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. See “Alternate Parts”. Minimum siphon
break height: 28" (710 mm) from bottom of washer. (Additional
hoses may be needed.)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)
diameter to 1" (25 mm) diameter Standpipe Adapter Kit is
available (Part Number 3363920). Top of standpipe must be at
least 30" (762 mm) high; install no higher than 55" (1.4 m) from
bottom of washer. If you have an overhead sewer and need to
pump higher than 96 inches, a sump pump and associated
hardware are needed. See “Alternate Parts”.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 30" (762 mm) above floor; install no higher than
55" (1.4 m) from bottom of washer.
Floor standpipe drain system
See requirements for floor standpipe drain system.
Floor drain system

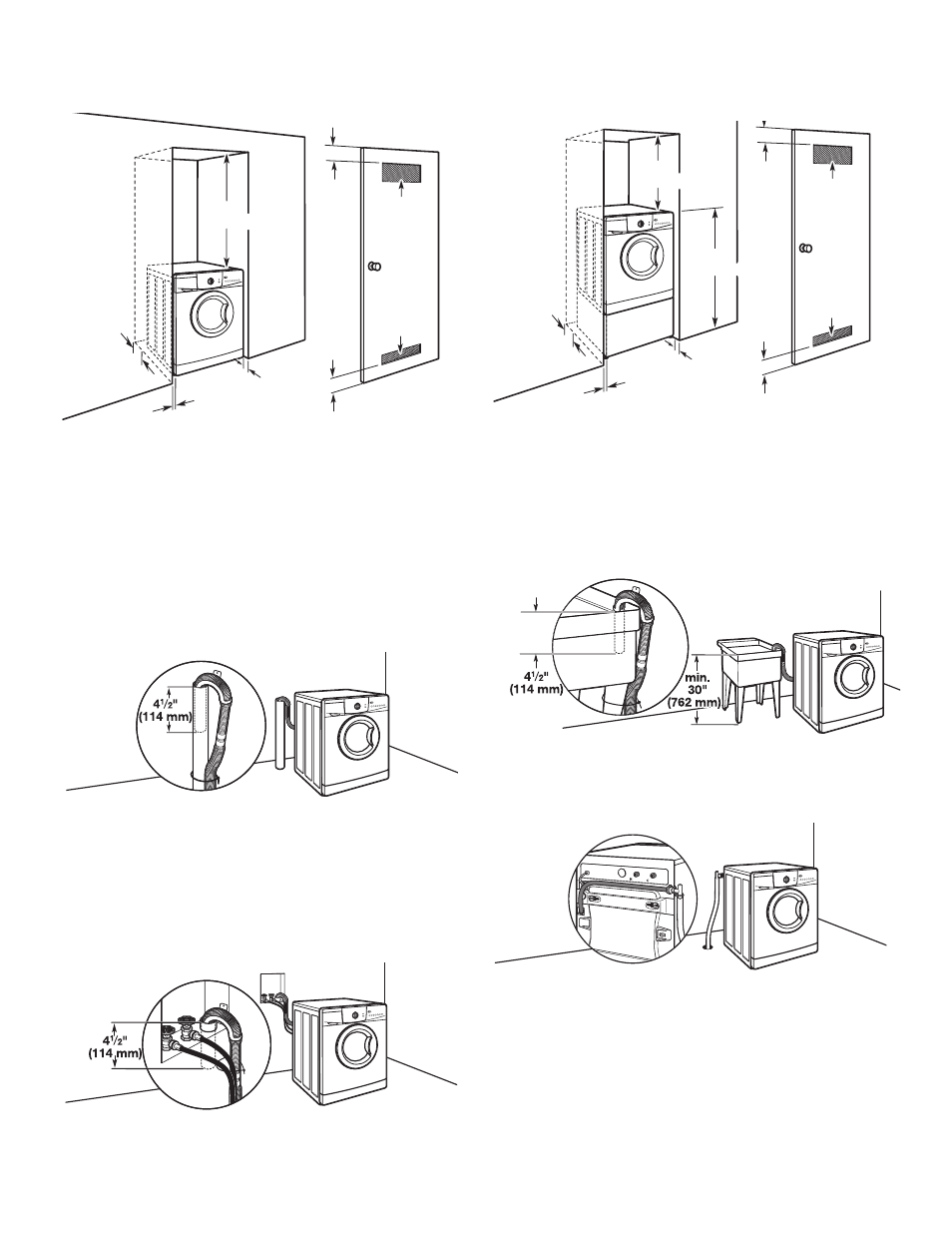

DRAIN SYSTEM
Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select method you need.
IMPORTANT:
To avoid siphoning, only 4
1
⁄
2
" (114 mm) of drain
hose should be inside standpipe. Always secure drain hose with
cable tie.
LOCATION REQUIREMENTS (cont.)
Recessed area or closet installation (washer on pedestal):
1"
(25 mm)
4"
(102 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
9"
(229 mm)
18"
(457 mm)
44
11
/
16
"
(1135 mm)
44
11
/
16
"
(1135 mm)
Recessed area or closet installation (washer only):
1"
(25 mm)
4"
(102 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
9"
(229 mm)
34"
(864 mm)
1"
(25 mm)
