Part Names and Functions

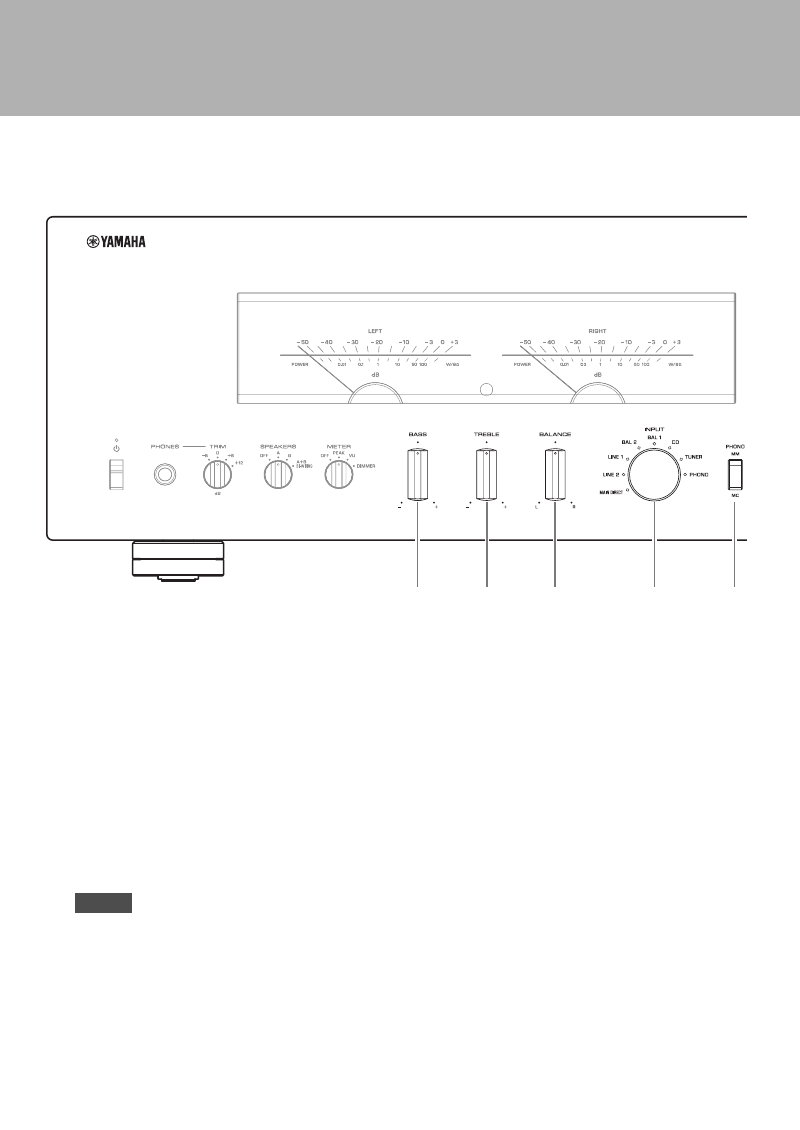

Front panel
8 BASS control
Adjusts the volume level of the bass range.
Adjustable range: − 10 dB – 0 – +10 dB
9 TREBLE control
Adjusts the volume level of the treble range.
Adjustable range: − 10 dB – 0 – +10 dB
0 BALANCE control
Adjusts the audio output balance between the left and
right speakers to compensate for sound imbalances
caused by speaker locations or listening room
conditions.
• If both BASS and TREBLE controls are set to 0 (zero), the
audio signal will bypass the tone control circuit.
• The BASS, TREBLE, and BALANCE control settings will not
affect the input signals at the MAIN IN jacks nor the output
signals at the LINE 2 OUT jacks.
A INPUT selector/indicator
Selects the input source. The indicator for the selected
input source lights up. Audio signals of the selected
input source will be output at the LINE 2 OUT jacks.
MAIN DIRECT: Selects the component connected to
the MAIN IN jacks as the input source.
LINE 1/LINE 2: Selects the component connected to
the LINE 1 or LINE 2 jacks as the input source.
BAL 1/BAL 2: Selects the component connected to
the BAL 1 or BAL 2 input jacks as the input
source.
CD: Selects the CD player connected to the CD input
jacks as the input source.
TUNER: Selects the tuner connected to the TUNER
input jacks as the input source.
PHONO: Selects the turntable connected to the
PHONO input jacks as the input source.
B A 8 9 0
Note
