Part Names and Functions

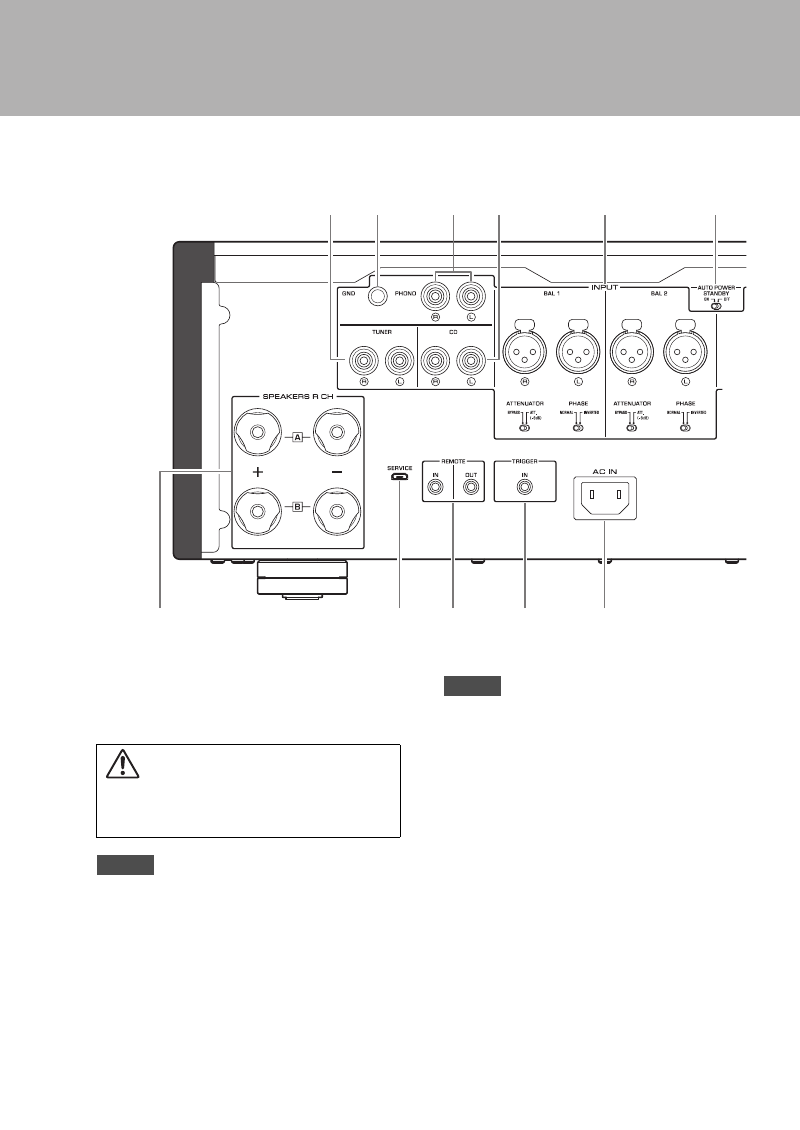

Rear panel
1
TUNER input jacks
2
GND (Ground) terminal
If you connect your turntable to this unit, ground it to
the GND terminal. Doing so may reduce noise.
This is not a safety ground.
3
PHONO input jacks
4
CD input jacks
5
BAL 1/BAL 2 (balanced) input jacks
Set the ATTENUATOR selector and PHASE selector
appropriately for the playback components that are
connected to the unit. (
6
AUTO POWER STANDBY switch
ON:
The unit enters standby mode automatically if it
is left turned on and not operated for eight hours
(Auto Power Standby function).
OFF:
The unit does not enter standby mode
automatically.
7
LINE 1 input jacks
8
LINE 2 jacks
Connect external components that feature analog
audio in/out jacks.
A
B
C
D
E
2
1
4
5
6
3
CAUTION
Do not loosen the GND terminal knob excessively.
Otherwise, the knob may come off and a child may
swallow it accidentally.
Note
Note
