Part Names and Functions

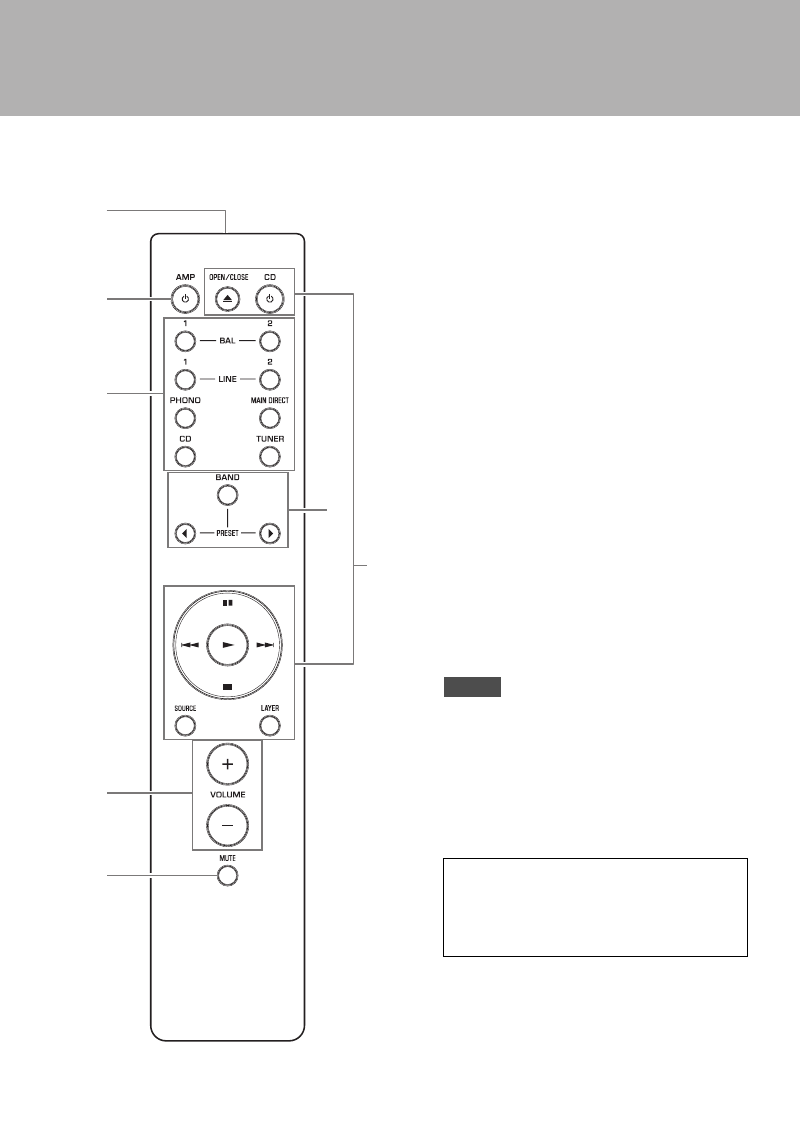

Remote control
1 Infrared signal transmitter
Outputs infrared control signals toward the unit.
(
➔ page 14)
2 A AMP key
Turns on the power to the unit or switches it to
standby mode. (
➔ page 6)
3 Input select keys
Select the input source.
Audio signals of the selected input source will be
output at the LINE 2 OUT jacks.
BAL 1/BAL 2: Selects the component connected to
the BAL 1 or BAL 2 input jacks as the input
source.
LINE 1/LINE 2: Selects the component connected to
the LINE 1 or LINE 2 jacks as the input source.
PHONO: Selects the turntable connected to the
PHONO input jacks as the input source.
MAIN DIRECT: Selects the component connected to
the MAIN IN jacks as the input source.
CD: Selects the CD player connected to the CD input
jacks as the input source.
TUNER: Selects the tuner connected to the TUNER
input jacks as the input source.
• If MAIN DIRECT is selected as the input source, audio
signals will not be output at the PRE OUT, LINE 2 OUT or
PHONES jacks.
• If LINE 2 is selected, audio signals will not be output at
the LINE 2 OUT jacks.
4 VOLUME +/− keys
Adjust the volume level. This setting will not affect
the output level at the LINE 2 OUT jacks.
5 MUTE key
Press this key to reduce the current volume level by
approximately 20 dB. Press the key again to restore
the previous volume level.
1
2
3
4
6
5
7
Note
NOTICE
If you select MAIN DIRECT as the input source for this
unit, the volume level will be fixed. In this case, to adjust
the volume level, use the volume control on the
external amplifier connected to the MAIN IN jacks.
