4
powermax1250
Service manuel 4-3

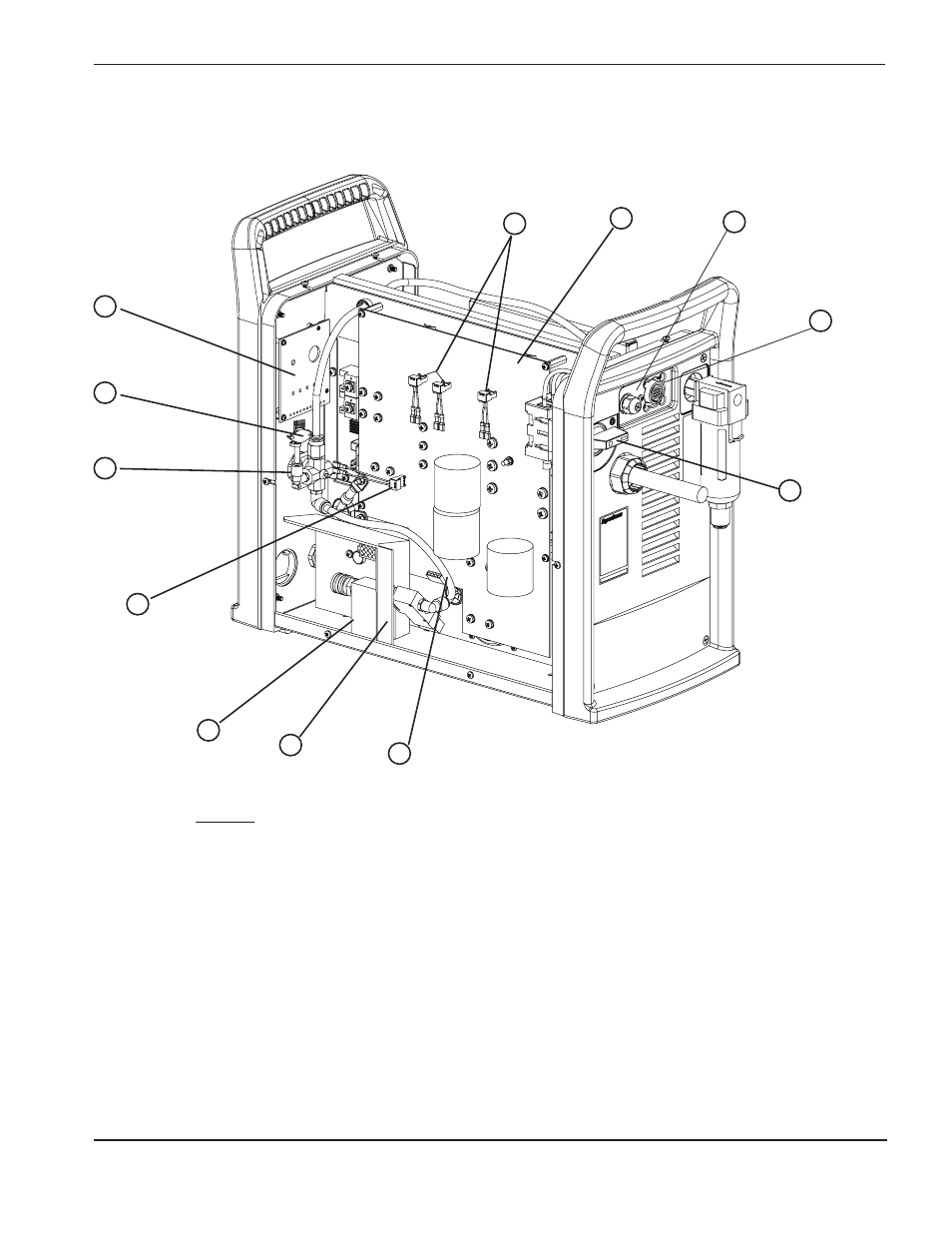

NOMENCLATURE DES PIÈCES – SOURCE DE COURANT
Intérieur côté droit
Numéro
Article de référence Description Désignation Qté
1 128660 Kit: Control board, domestic PCB3 1
128661 Kit: Control board, CE PCB3 1
2 128659 Kit: Pressure Sensor 1
3 128801 Kit: Pressure Regulator 1
4 123604 Pilot Arc IGBT Cable 1
5 128622 Kit: Gas Manifold with solenoid valve V1 1
6 128628 Kit: ETR Box 1
7 046116 Tubing, 8mm OD, 6mm ID, nylon 3 ft.
8 123602 Gate Drive Cables 3
9 128663 Kit: Power board PCB2 1
10 108211 On/Off Knob 1
11 128662 Kit: Machine Interface 1
12 128665 Kit: Strain relief, arc voltage 1
1
2
3
4
6
8
9
10
7
5
11
12
