Hypertherm Powermax1250 Rev.4 - Manuel (Page 67)

4
4-2
powermax1250
Service manuel

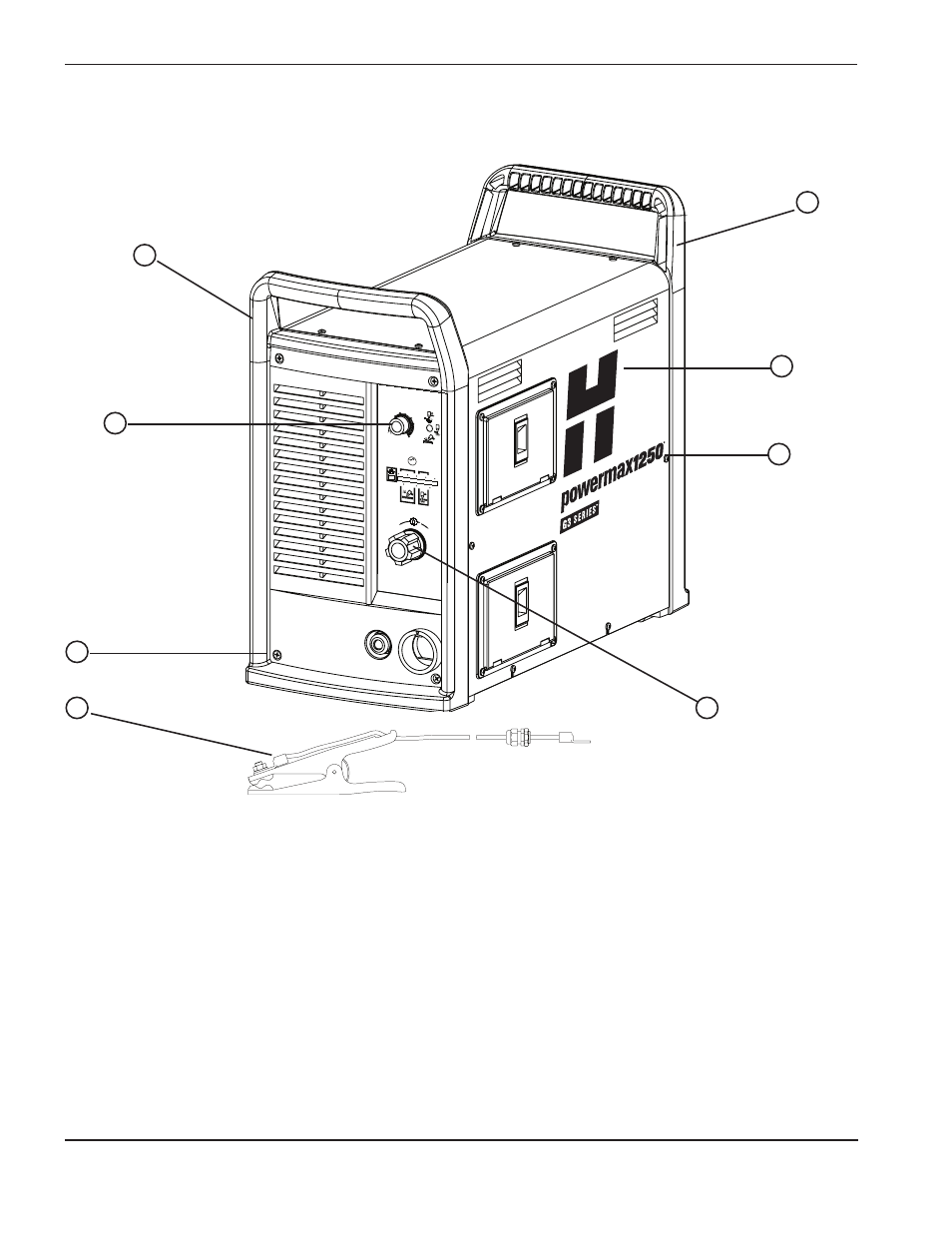

NOMENCLATURE DES PIÈCES – SOURCE DE COURANT
Extérieur
Numéro
Article de référence Description Qté
128631 Kit: Labels, domestic 1
128632 Kit: Labels, CE 1
1 008965 Current adjustment knob 1
2 128624 Kit: Front panel, Domestic 1
128625 Kit: Front panel, CE 1
3 128974 Kit: Rear panel 1
4 128620 Kit: Power supply cover with labels, domestic 1
128621 Kit: Power supply cover with labels, CE 1
5 123645 Work cable with clip, 20 ft (6.1 m) 1
6 128629 Kit: Cover screws 12
7 128630 Kit: End panel screws 8
8 011096 Regulator knob 1
