Installation Procedure
Installation Procedure
Prepare the Countertop
9 WARNING
To avoid electrical shock hazard, before installing
the cooktop, switch power off at the service panel to
prevent the power from being switched on
accidentally.
Cut out the countertop per the dimensions shown in the
section “Cabinet Requirements” .
Some solid surface materials require different cutting
methods. Consult with the solid surface manufacturer for
the correct cutting method needed. Apply heat reflective
tape such as Scotch Aluminum Foil Tape #425 or #427
(not included) around the cutout so that it folds over the
top and sides. Do not wrap the tape underneath the
cooktop. Be sure the tape extends beyond the outermost
flange of the cooktop. All corners should be covered with
tape.

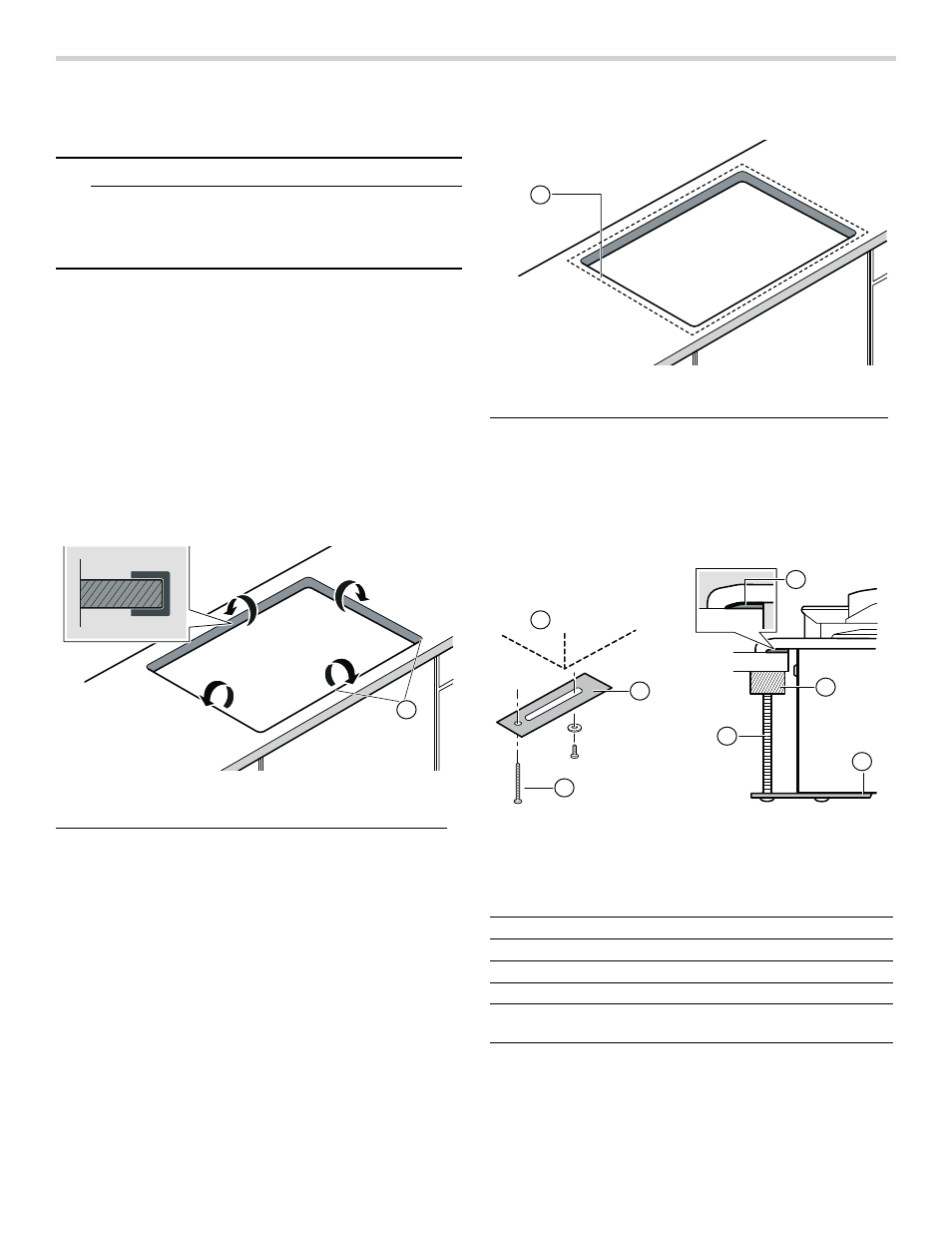

Solid Surface Countertops-Counter Cutout
Seal the Cooktop with Foam Tape
Note: Failure to install the foam tape may affect burner
performance.
Apply the self adhesive foam tape in one continuous
rectangle directly to the counter around the perimeter of
the cutout as shown by the dotted line in the image
below. The foam tape should be flush with the edge of
the cutout.
Foam Tape Placement-Counter Cutout
Install the Cooktop
Insert the cooktop into the cutout. Attach the clamps of
the mounting brackets packaged with the cooktop. Use
the washer and screws provided.
Adjust the mounting brackets to desired position and
tighten screws to cooktop. Insert adjusting screw into
clamp and secure cooktop to countertop.
Attaching Mounting Brackets
Note: For solid surface material installations:
▯
Insert a wooden block between the end of the screw
and the bottom of the countertop.
▯
Do not overtighten adjusting screw.
▯
Trim excess aluminum tape around cooktop flange.
A Heat Reflective Tape
$
A Foam Tape Placement
A Cooktop
B/H Hold Down Bracket
C/E Adjusting Screw
D Foam Tape (Seal)
G Wooden Block (to be used with solid surfacing
material)
$
$
%
*
(
+
'
&
