Important Notes for Gas Connection:

The appliance and its individual gas shutoff valve must

be disconnected from the gas supply piping system

during any pressure testing of that system at test

pressures in excess of 1/2 psi (3.5kPa).

The appliance must be isolated from the gas supply

piping system by closing its individual manual shut-off

valve during any pressure testing of the gas supply

piping system at test pressures equal to or less than

1/2 psi (3.5kPa).

Connect Electrical Supply

Before connecting the 5-foot (1.5m) supply cord to a wall

receptacle, make certain that gas shut-off valve and all

burner controls are in OFF position.

Burner Cap Placement

9

WARNING

To prevent flare-ups, do not use the cooktop without

all burner caps and all burner grates properly

positioned.

9

WARNING

To prevent burns, do not touch burner caps or

grates while hot. Turn the cooktop off and allow the

burners to cool.

Do not attempt any adjustment of the pressure regulator,

except conversion to propane.

The burner caps must be properly placed for the cooktop

to function properly. If the burner cap is not properly

placed, one or more of the following problems may

occur:

Burner flames are too high.

Flames shoot out of burners.

Stainless steel discolors.

Burners do not ignite.

Burner flames light unevenly.

Burner emits gas odor.

Burner Cap Placement

Each cap has a letter (B, D or F) cast in the underside

of the cap that corresponds to a letter (B, D or F) cast

in the burner base that is attached to the appliance.

After electrical connection is complete, place each

burner base on the corresponding location on the

cooktop. One of the three bars on the burner base

should line up with the notch and prevent the base

from rotating. The small hole or cutout near the edge

should also line up with the igniter. See Illustration

below.

Once each base is located and resting evenly, place

each burner cap on its correct burner base. See

Illustration below.

Place burner cap gently on top of base so that the

prongs of the burner base fit snugly into the groove of

the burner cap.

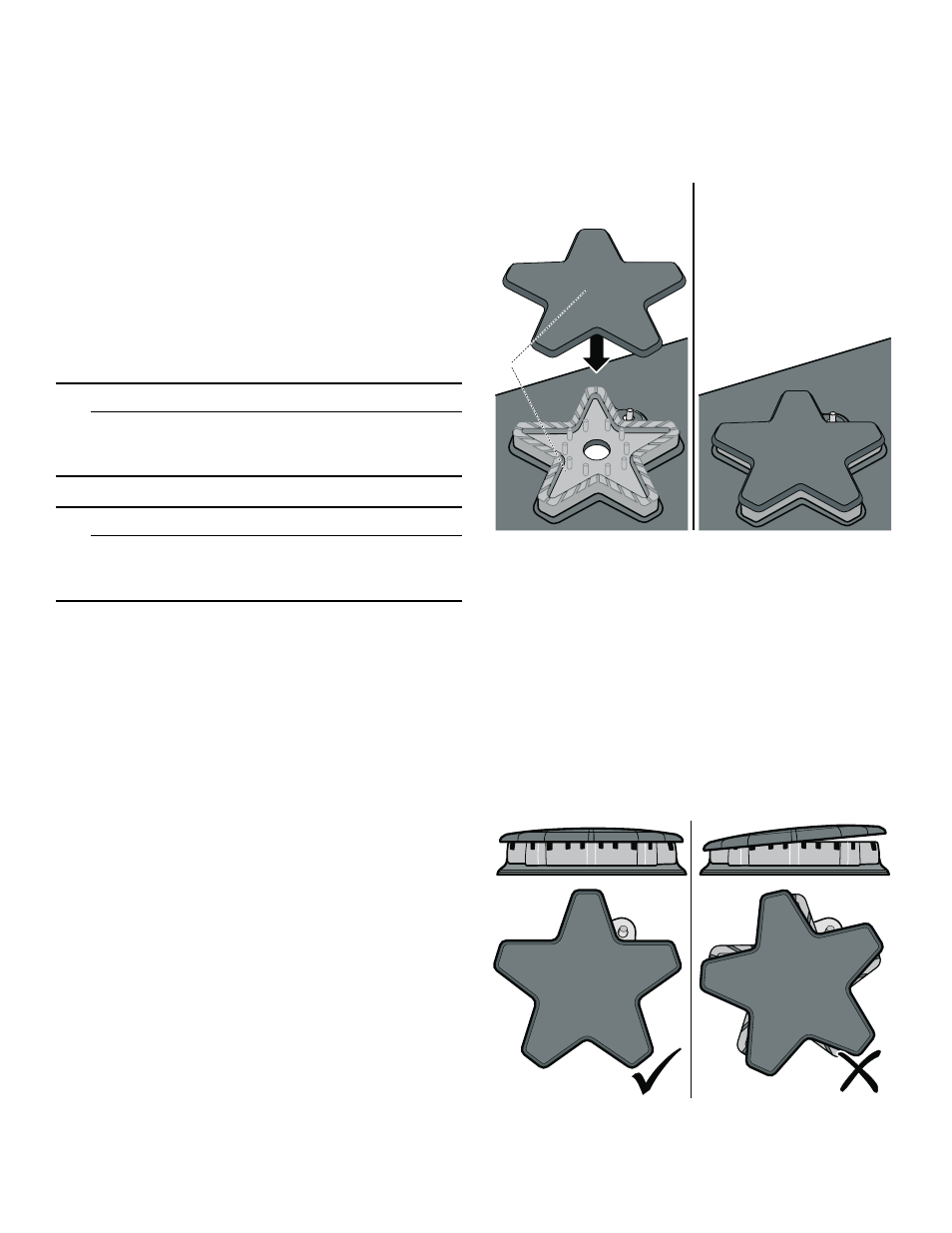

Placing Burner Caps

Checking Burner Cap Placement

Check to make sure that there is no gap between the

burner cap and burner base. See illustration below for

correct and incorrect placements of the burner cap.

You may gently try to move the burner cap from side

to side to check if it is properly placed. If properly

placed, the cap will click from side to side as the

prongs hit the groove ridge.

Checking Burner Cap Placement

'

'
