7
Before You Begin
Tools and Parts Needed
▯
Phillips Head Screwdriver
▯
Tape Measure
▯
Teflon Tape (Gas Rated)
▯
Drill with 1/4” (6.5mm) bit
Parts Included
▯
Foam Tape
▯
Mounting Brackets (4)
▯
Screws, #10-32 x 2 1/2” (63.8 mm) (4)
▯
Sheet Metal Screws, #8 x 3/8” (9.5 mm) (4)
▯
Washers (4)
▯
Burner Grates (3)
▯
Burners (5)
▯
Burner Caps (5)
▯
Pressure Regulator
Note: Carefully check all packaging for grates, burners,
caps and regulator. If parts are missing or damaged, call
the number or write to the address listed on the inside
back cover.
General Information
Overall Dimensions
Note: These are overall dimensions NOT cutout
dimensions.
Preparation
Electrical Requirements
9 CAUTION
Do not use an extension cord with the gas cooktop.
This appliance requires a 60 Hz, 15 Amp, 120 VAC
connection. Plan the installation so that the power
connection is accessible from the front of the cabinet.
Gas Requirements
A metal flex line or fixed metal pipe shall be used to
connect gas to the appliance. If a metal gas line cannot
be used, consult your local certified electrician or local
electric codes for proper grounding.
Supply Pressure:
▯
Natural Gas: 7 inches water column (14.9 Millibars)
▯
Propane Gas: 11 inches water column (27.4 Millibars)
The propane gas tank must be equipped with its own
high pressure regulator in addition to the pressure
regulator supplied with this unit. The cooktop is shipped
from the factory for use with natural gas. For use with
non pedestal LP conversion kit model SNLPKITW must
be purchased separately. Pedestal cooktops need to
order LP conversion kit model SLPKITPEDW and must
also be purchased separately. A certified technician or
installer must do the conversion.
Cabinet Requirements

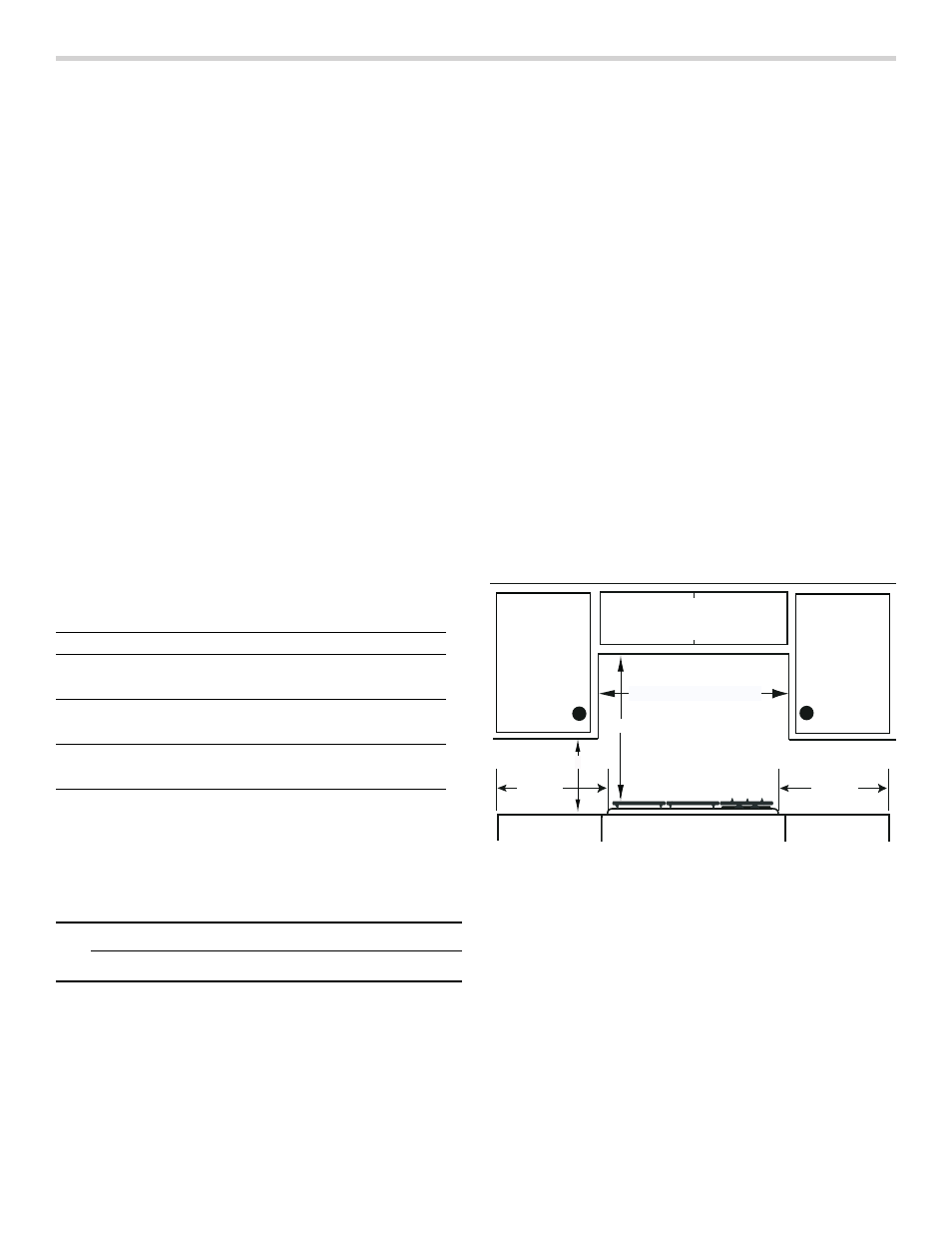

Dimension requirements in image below are for
combustible surfaces. When the surface is protected by
a material listed by UL as a Floor Protector and Wall
Shield covered with not less than No. 28 MSG sheet
metal 0.015 inch (0.38mm) stainless steel, 0.024 inch
(0.6mm) aluminum copper, it is considered
noncombustible and some dimensions may be reduced.
For a noncombustible surface over the cooktop, the
minimum clearance is 24” (61cm) rather than 30”
(76cm).
* Side wall clearance dimensions can be reduced to 5”
(127 mm) if opposing side wall is ≥ 23” (584 mm).
▯
Instructions are based on standard American cabinets
36” high (91cm) x 24” deep (61cm) with a 25”
(63cm) countertop.
▯
The maximum depth of a cabinet installed above the
cooktop is 13” (33cm).
Note: All measurements given must be precisely
followed. If nonstandard cabinets are used, make sure
they are installed with minimum dimensions shown in
image above.
Plan the installation of the unit so that the power cord,
gas shut-off valve and gas pressure regulator are
accessible from the front of the cabinet.
30” Models 36” Models
Width (Side to Side) 31”
(788 mm)
37”
(940 mm)
Depth (Front to Back) 21 1/4”
(540 mm)
21 1/4”
(540 mm)
Height (Top to Bottom) 3 13/16”
(97 mm)
3 13/16”
(97 mm)
PP
PLQ
5HDUZDOOPLQ
5LJKWVLGH
&RPEXVWLEOHVXUIDFH
6*6;PLQ
'HSWKIURPEDFNZDOO
&DELQHWPD[
6*6;PLQ
$ERYHFRXQWHUPLQWR
&HQWHUHGRYHUFRRNWRS
/HIWVLGH
PLQ PLQ
