NOMENCLATURE DES PIÉCES
7
6-2 Command THC (Robotisé) Manuel d’instructions
Module de commande THC
Nº Index Réf. Description Quantité
– 053018 THC Control Module 1
1 002261 Enclosure, THC Control Module 1
129067 Heatsink SA, THC Control Module 1
2 004705 Heatsink, THC
3 005186 Module, Power Entry, Fused Filter 1
4 008971 Fuse, T,3.15 Amp H 250V 5 mm x 20 mm 2
5 229070 Power Source, 130W (see Fig. 6-2) 1
6 041511 PCB Assy, Motor Driver (see Fig. 6-2) 1
7 128407 PCB Assy, Control (see Fig. 6-2) 1
081061 Firmware, Real-Time Microprocessor 1
081062 Firmware, Interface Microprocessor 1
8 123254 Cable, THC 50/C Ribbon (not shown) 1
9 129066 Harness Wiring THC (not shown) 1

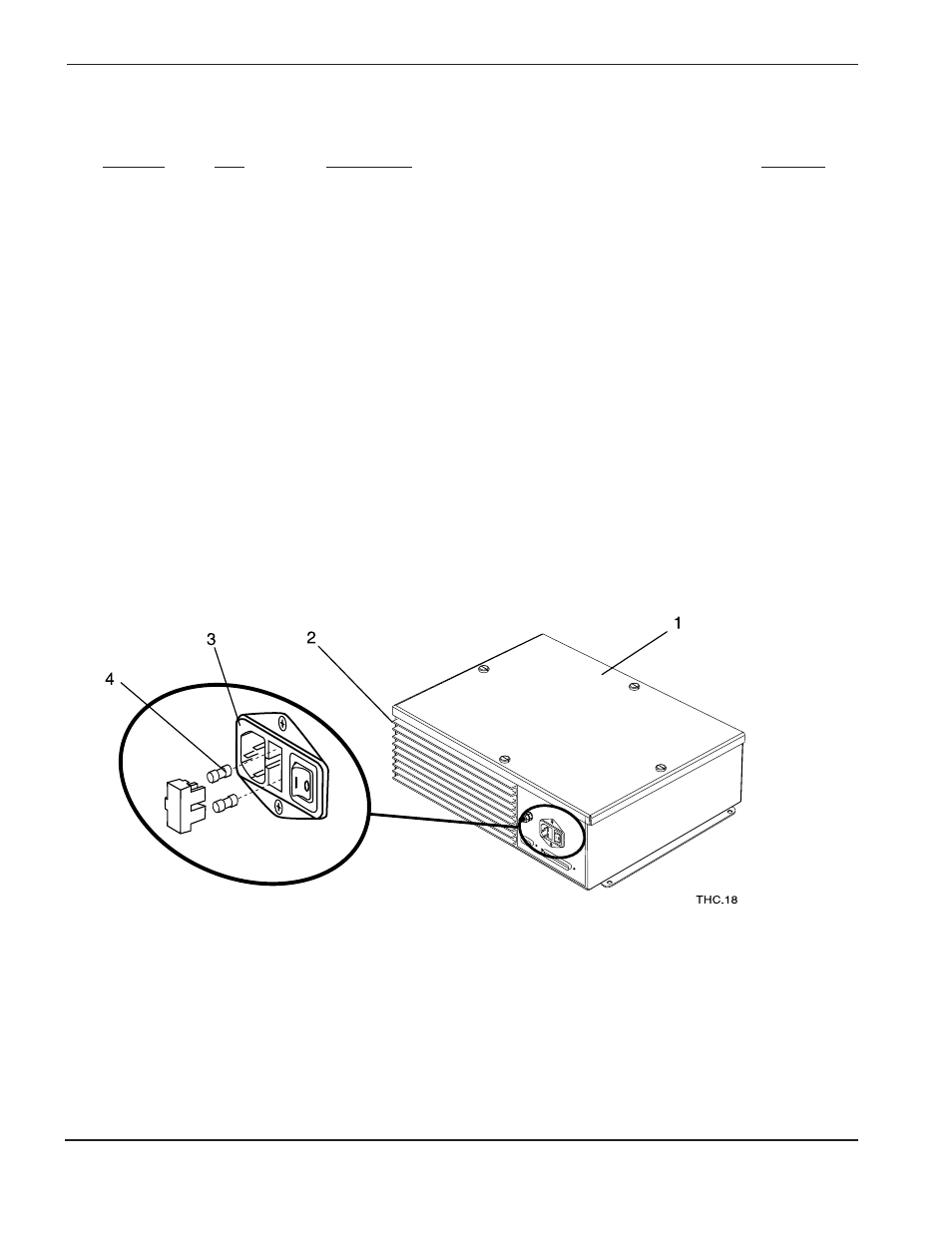

Figure 6-1 Extérieur du module de commande THC
