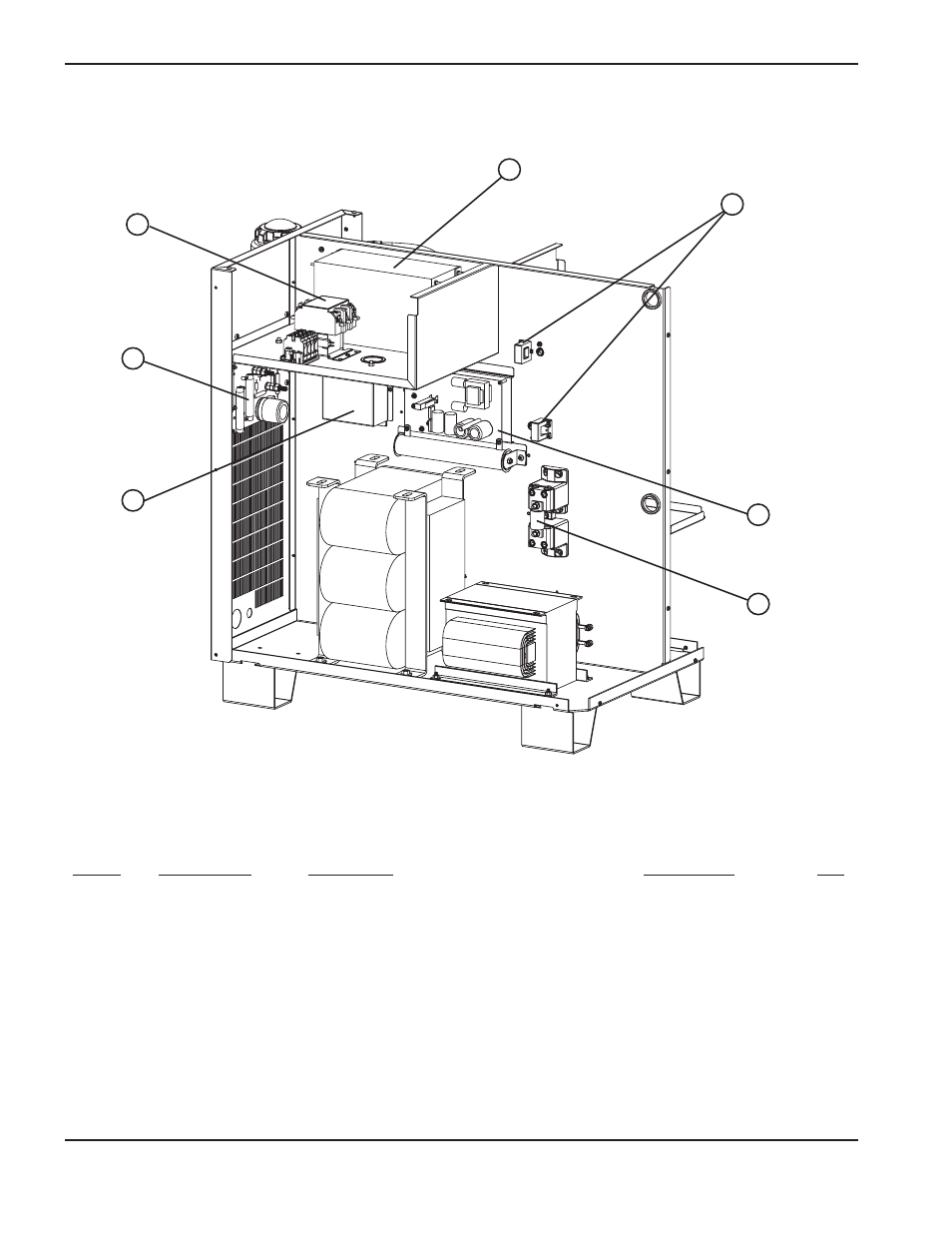

NOMENCLATURE DES PIÈCES
6-4
HPR130 gaz auto
Mode d’emploi
Source de courant
Numéro
Article
de référence
Description
Désignation
Qté
1
003149
Relay: pilot arc, 120 VAC
CR1
1
2
041837
PCB: I/O
1
3
003139
Contactor
CON1
1
4
109036*
EMI filter: 60 amp, 440 VAC 3PH
1
5
109004
Current sensor: hall 100 amp, 4 volt
2
6
129791
Start circuit assembly
PCB1
1
7
108263
Fuse: 150 amp, 250 volt
F3
1
* Alimentation 400 V uniquement
3
4
5
1
2
6
7
