2. Connect neutral wire to center terminal block.
3. Connect remaining wires to outer terminal block.
Connecting Ground and Neutral Wires (cont.)
2.
Connect ground and neutral wire to center terminal block.
Connecting Direct Wire Ground
3.
Connect ground wire (green or bare) with external ground
connector screw.
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer
can be moved if needed.
Strip 3
1 ⁄
2
" (89 mm) of outer covering from end of cable. Strip
insulation back 1" (25 mm). If using 3-wire cable with ground wire,
cut bare wire even with outer covering. Shape ends of wires into
a hook shape.
Connecting Neutral Wire
1.
Loosen or remove center terminal block screw.
Connecting Remaining Wires
4.
Connect remaining wires to outer terminal block.

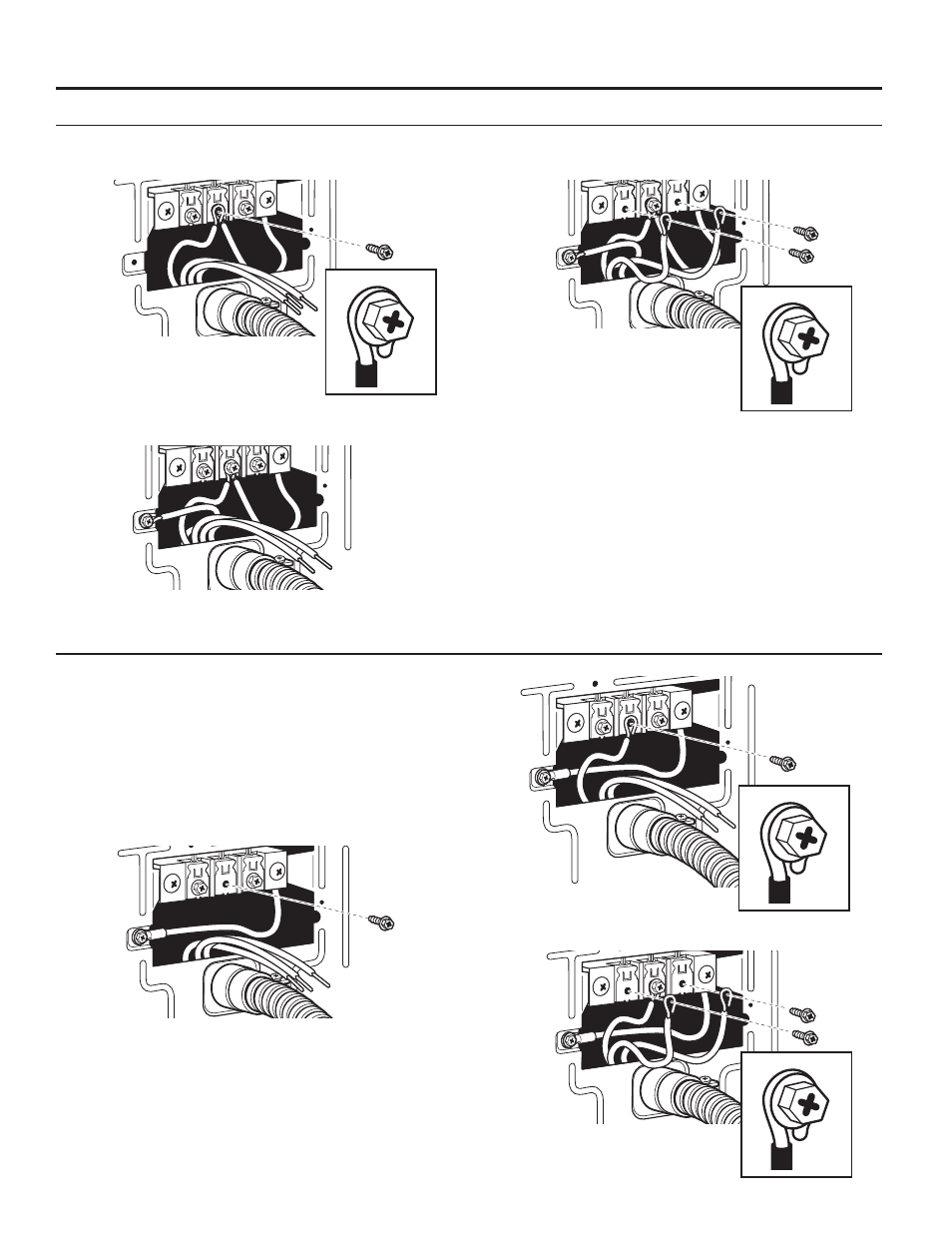

Connecting 3-Wire Connection: Direct Wire
Connecting 4-Wire Connection: Direct Wire
ELECTRIC DRYER ELECTRICAL CONNECTIONS
