2. Connect neutral wire to center terminal block.
3. Connect remaining wires with outer terminal block screws.
Standard Power Cord Connectors
Flanged spade connector Ring Connector
Connecting Neutral Wire
1.
Loosen or remove center terminal block screw.
IMPORTANT: A 4-wire connection is required where local codes
do not permit the use of 3-wire connections.
Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable, leaving bare
ground wire at 5" (127 mm). Cut 1 1 ⁄
2
" (38 mm) from 3 remaining
wires. Strip insulation back 1" (25 mm). Shape ends of wires into
a hook shape.
Connecting 3-Wire Connection: Power Supply Cord
Connecting 4-Wire Connection: Direct Wire

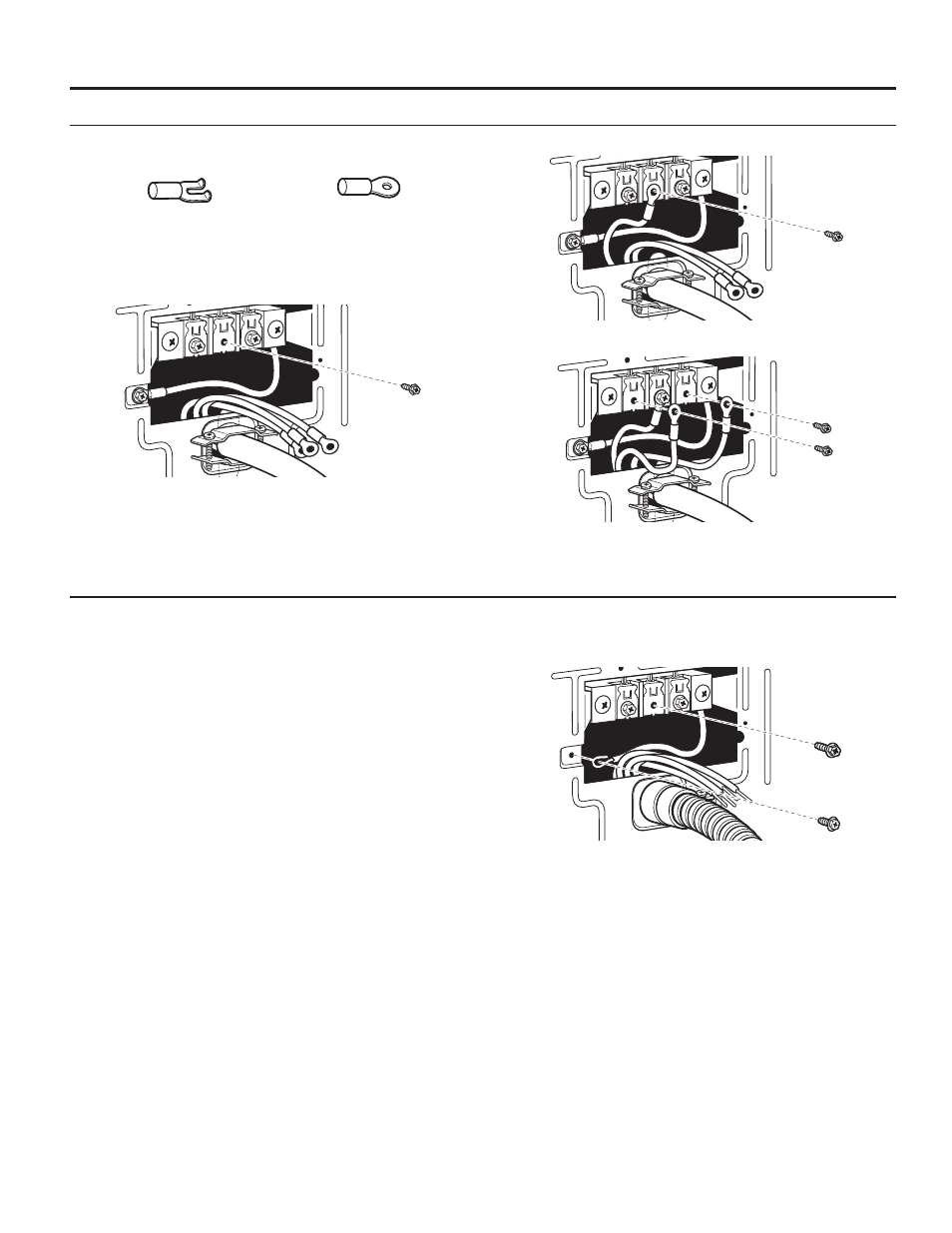

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connecting Ground and Neutral Wires
1.
Remove center terminal block screw and the ground wire by
removing the external ground connector screw.
