18

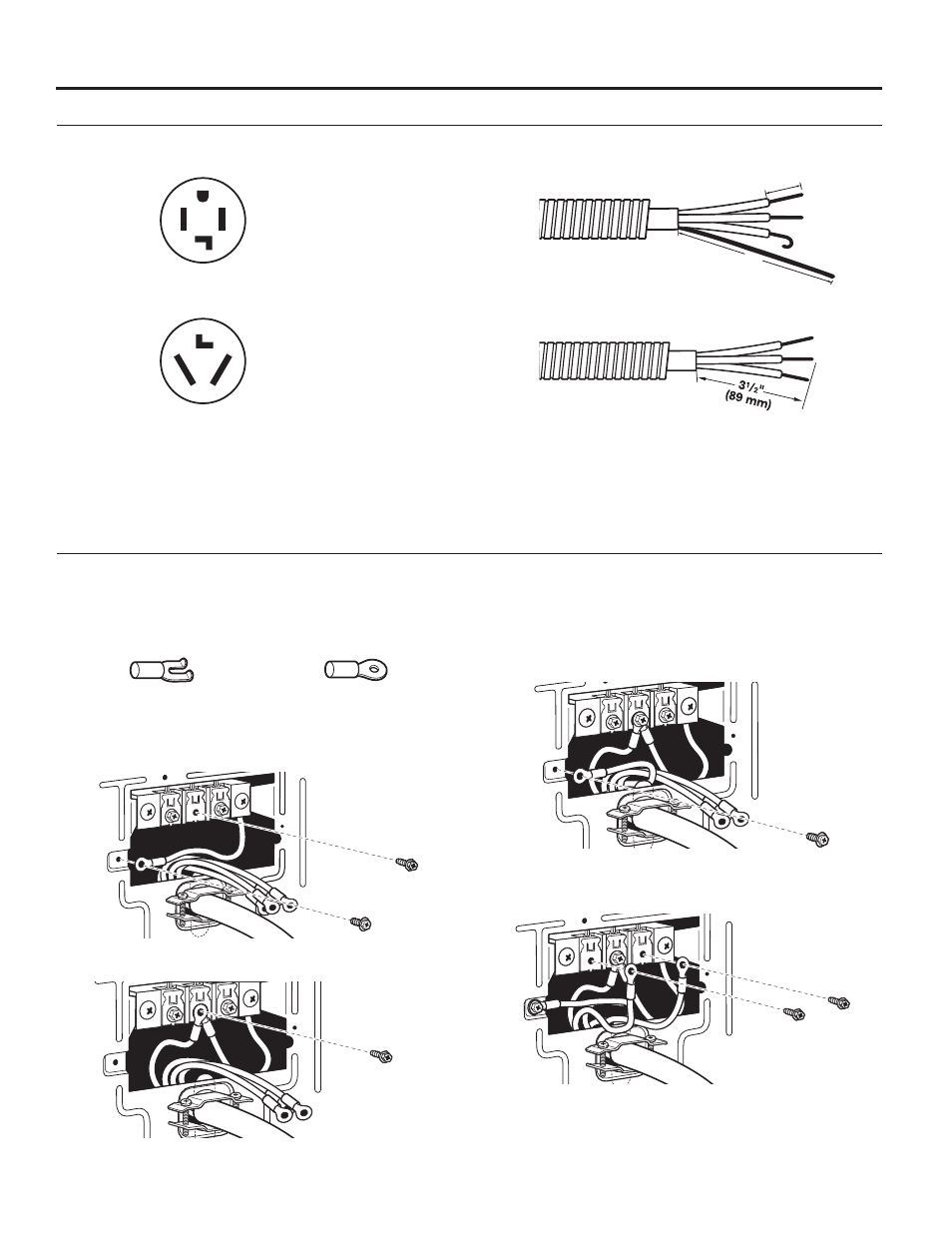

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Power Cord
4-wire receptacle (NEMA Type 14-30R)
3-wire receptacle (NEMA Type 10-30R)
Standard Power Supply Cord Connectors
Flanged spade connector Ring Connector
Connecting Ground and Neutral Wires
1.
Remove center terminal block screw and the ground wire
by removing the external ground connector screw.
2. Connect ground and neutral wire to center terminal block.
Connection Options
Connecting 4-Wire Connection: Power Supply Cord
IMPORTANT: A 4-wire connection is required where local codes
do not permit the use of 3-wire connections.
Direct Wire
4-wire direct
3-wire direct
1"
(25 mm)
5"
(127 mm)
Connecting Power Cord Ground Wire
3.
Connect ground wire (green or bare) with external ground
connector screw.
Connecting Remaining Wires
4.
Connect remaining wires with outer terminal block screws.
