Reversing Door
180
2 1

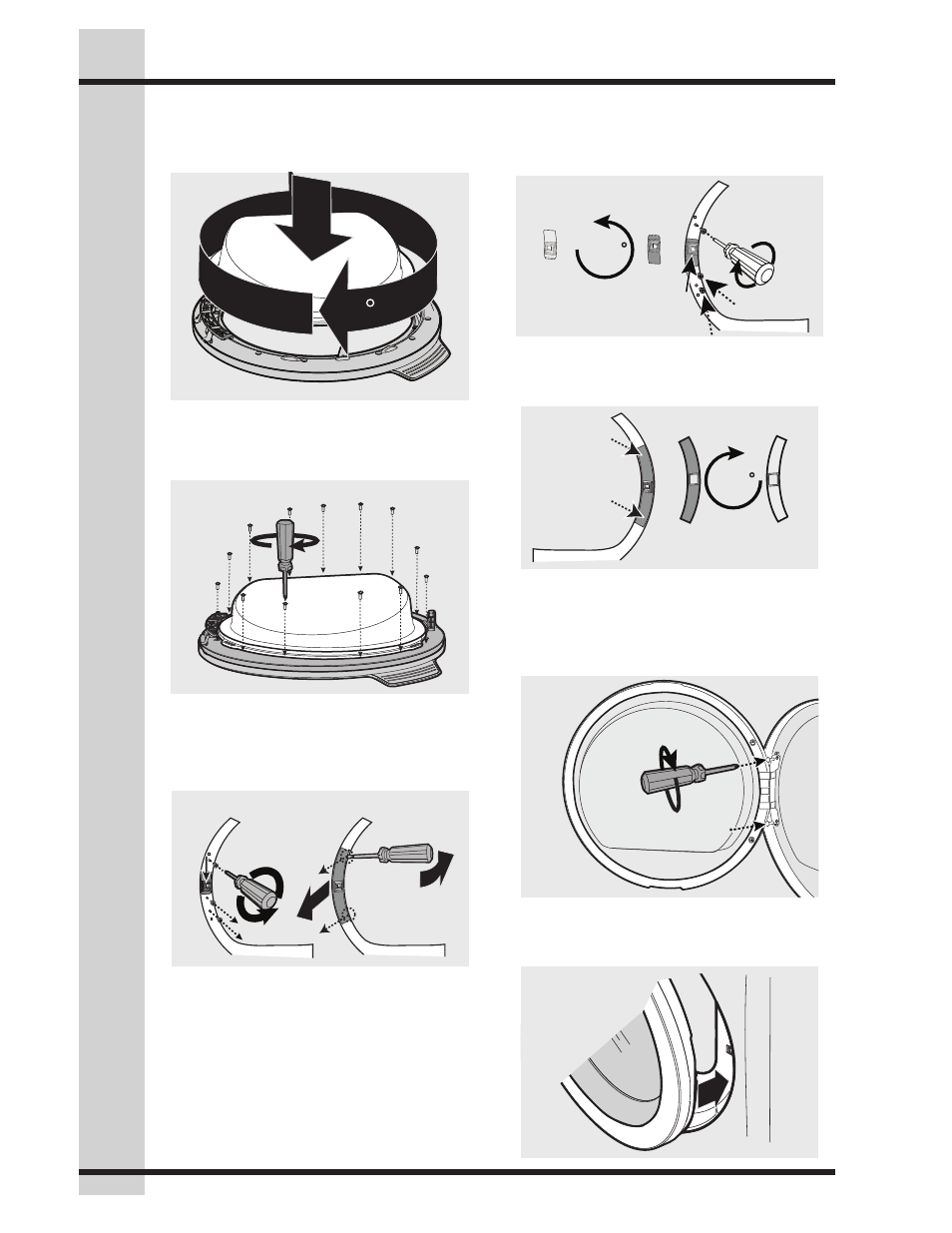

9. Rotate inner lens clockwise 90
˚
from its
original position and place back into door
assembly.
10. Rotate the inner door ring counterclock-
wise 90
˚
from its original position and
reattach with 13 screws removed earlier.
11. Gently pry the plastic latch cover from
the front panel and set it aside. Remove
the 3 screws securing the door latch and
release the latch.
12. Rotate the latch 180° and reinstall it in
the opposite location with the 3 screws
removed in previous step.
13. Rotate the plastic latch cover 180° and
snap it in place around the door latch.
14. While supporting the door, install the 2
hinge mounting screws removed in first
step. Attach the upper screw first and
then the lower one.
15. Close the door and test operation of
hinge, strike and latch.
