Installation Instructions

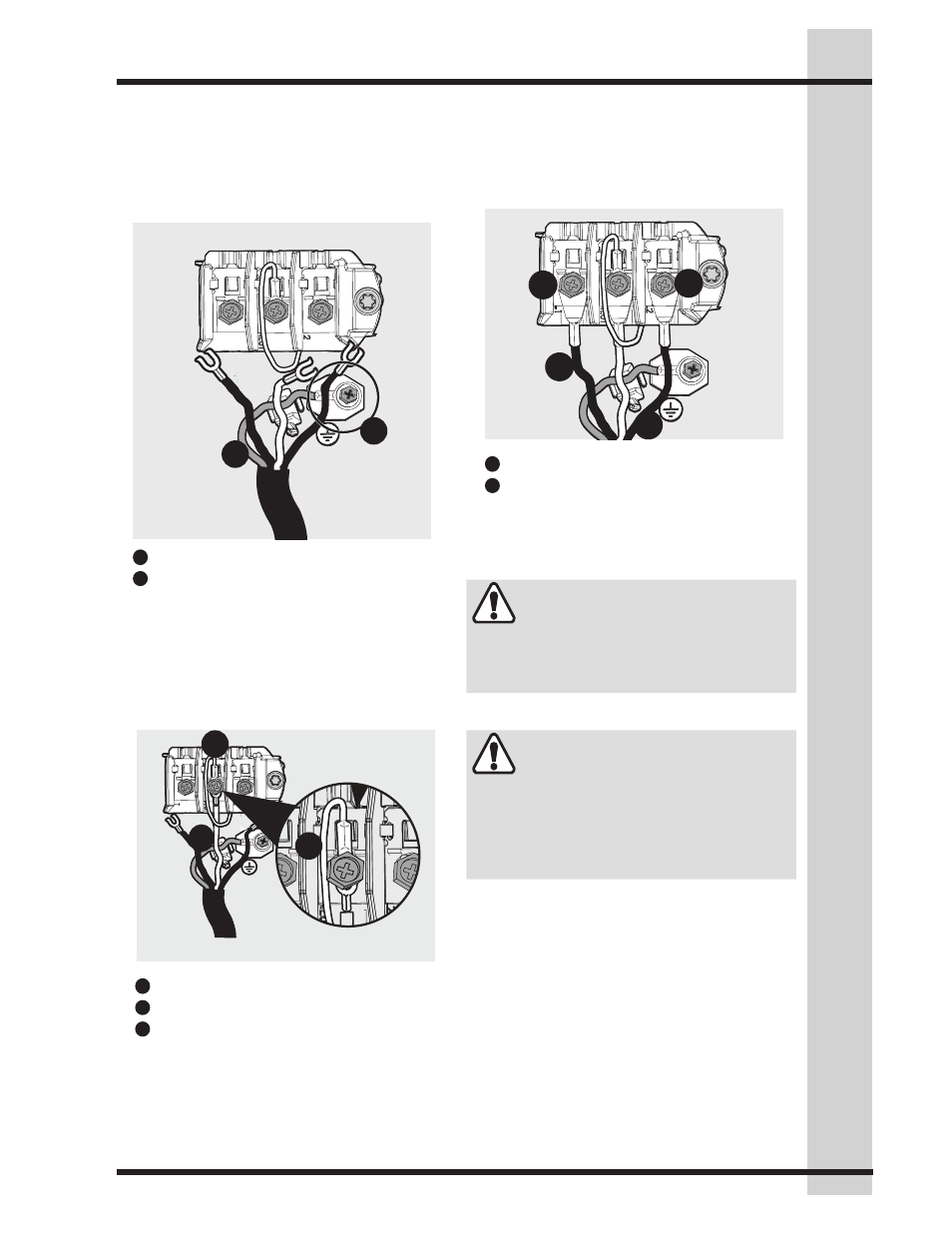

4. Using an UNPLUGGED, UL-approved,
30 amp. power cord, NEMA 14-30 type
ST or SRDT, attach the ground (GREEN)
power cord wire to the cabinet with the
ground (GREEN) screw. Tighten the screw
securely.
5. Move the internal (WHITE) dryer harness
wire to the terminal block and attach it
along with the neutral (WHITE) power cord
wire conductor to the center, SILVER
colored terminal on the terminal block.
Tighten the screw securely.
6. Attach the RED and BLACK power cord
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten
both screws securely.
Ground GREEN screw
GREEN ground wire
1
1
2
2
Neutral silver terminal
Internal WHITE harness wire
1
1
2
2
3
WHITE neutral wire 3
Brass Terminal
BLACK or RED power wire
1
2
1
2
1
2
WARNING
ELECTRICAL SHOCK HAZARD
Do not operate dryer without terminal cover
in place. A correctly installed terminal block
cover also acts a qualified strain relief for the
power cord.
WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/
conductor at connections.
7. Reinstall the terminal block access cover.
