Installation Instructions
Direct Drain Kit (on some
models)
If your model included a direct drain kit, you
may follow the instructions below to install it
on your dryer for convenient drainage of your
dryer’s condensed water.
1. Locate the red tubing and plastic fitting on
the back of the dryer.
2. With a pair of pliers, release the hose
clamp and remove the tubing from the
plastic fitting.
NOTE

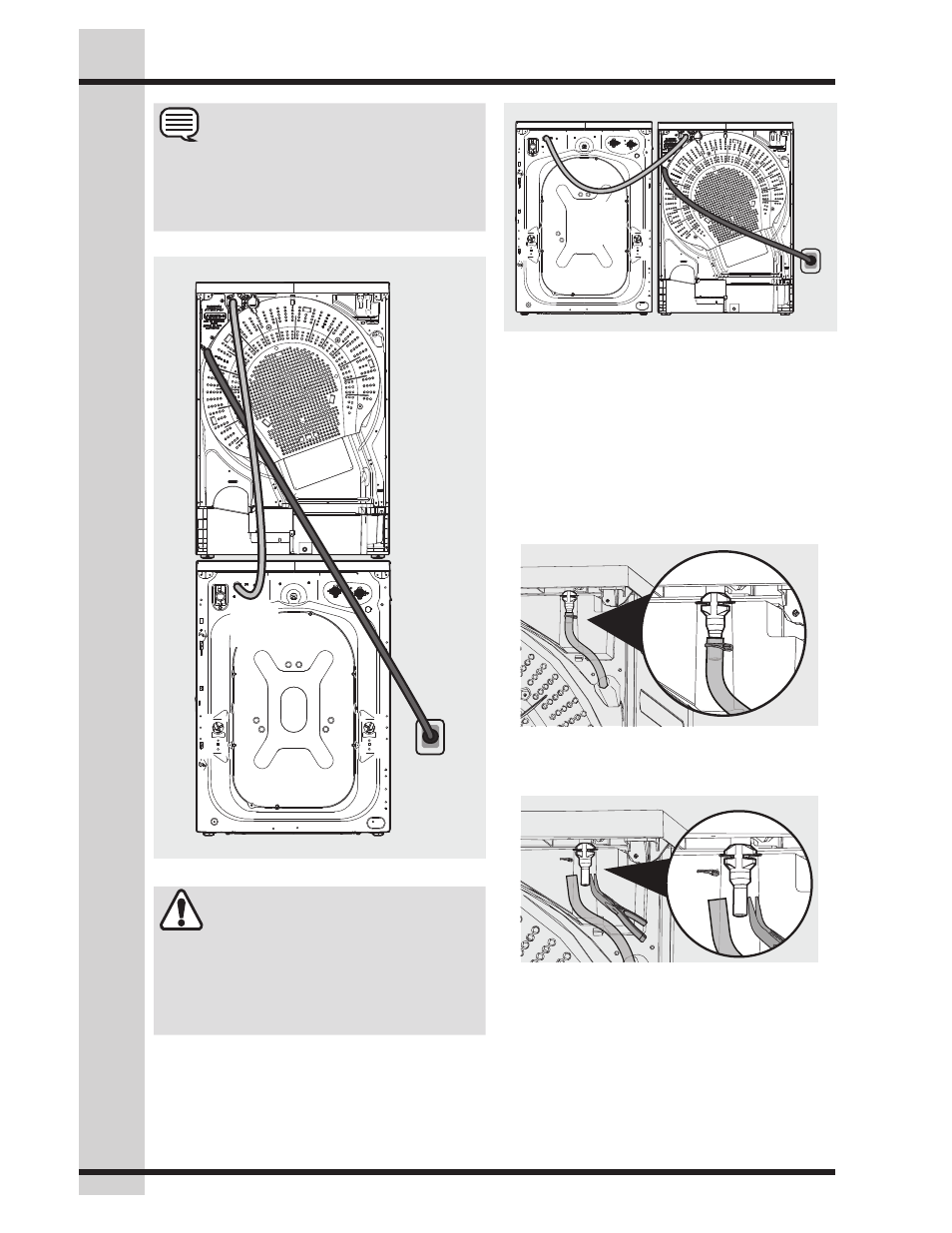

If you have an Electrolux compact dryer model
number ELFE4222AW or ELFE422CAW, you
may choose to power your Electrolux compact
washer through it as shown. See illustrations.
WARNING
NOT A GENERAL USE RECEPTACLE! Only
for use with compatible Electrolux washer
models listed in this Use & Care Guide. Keep
the outlet closed if a compatible Electrolux
washer plug is not connected to the dryer.
