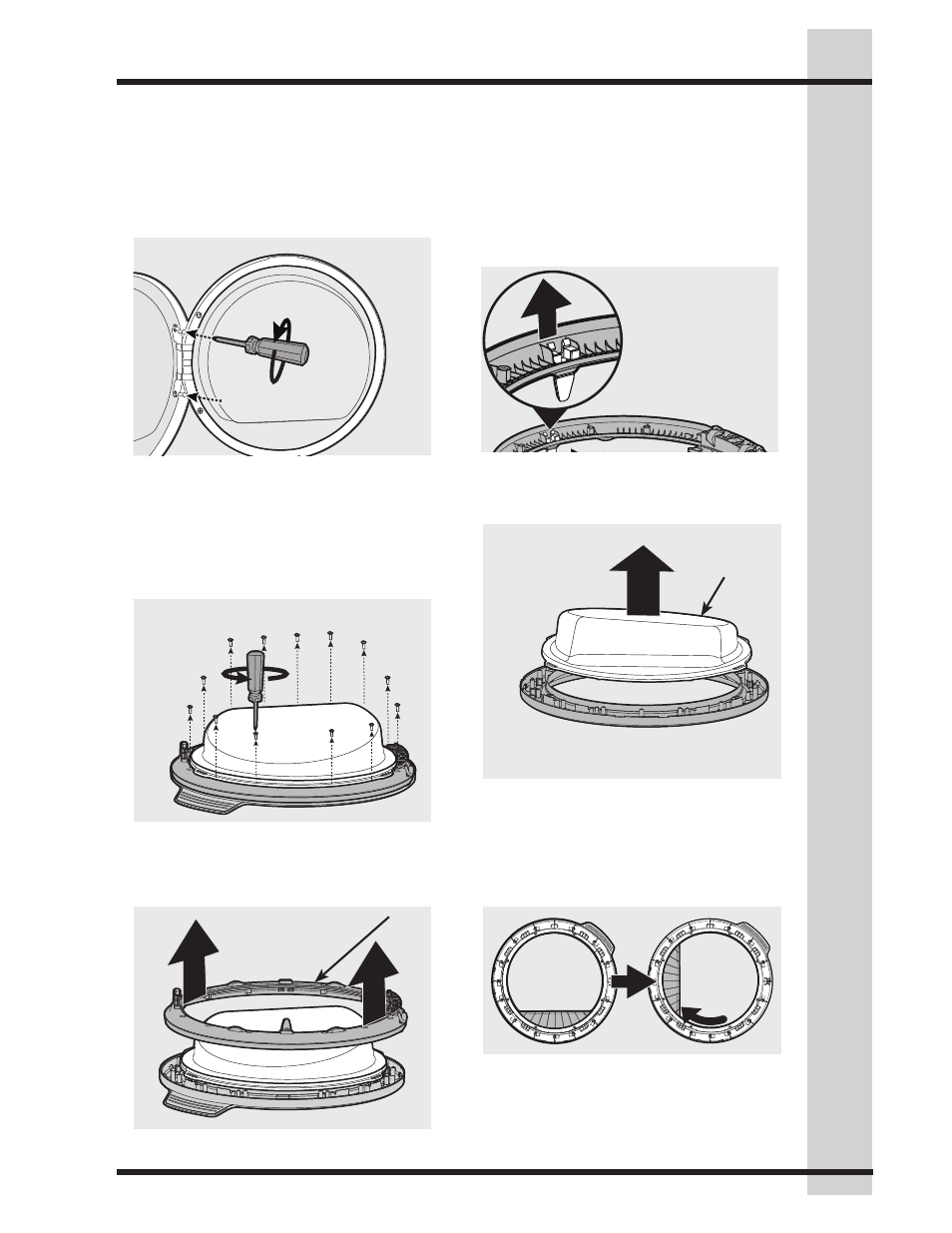

Reversing Door
1. Locate a flat work surface, such as the
top of the dryer or the floor near the dryer,
and protect it with a soft cloth or towel.
2. Open the dryer door and remove the two
hinge screws. Remove lower screw first,
then upper screw.
3. Gently place dryer door face down on flat,
covered work surface.
4. Locate the 13 screws on the inner door
ring. Remove and save these 13 screws.
5. Separate inner door ring from the rest of
the door.
6. Release the door switch striker by pulling
on the two snap hooks located on the
rear side of the inner door ring. Install the
door switch striker on the opposite
location (180 degrees from its original
position in the inner door ring). Set the
inner door ring aside.
7. Lift the inner lens and set it aside.
8. Lift and rotate the semi-circular trim piece
clockwise 90
˚
from its original position
and place onto the available plastic
alignment features.
Inner
Lens
Inner
Door
Ring
