IMPORTANT
If moving dryer from a 4-wire system and
installing it now in a 3-wire system, move the
internal ground wire from the center terminal
back to the GREEN screw under the
terminal block.
4-wire receptacle
(NEMA type 14-30R)

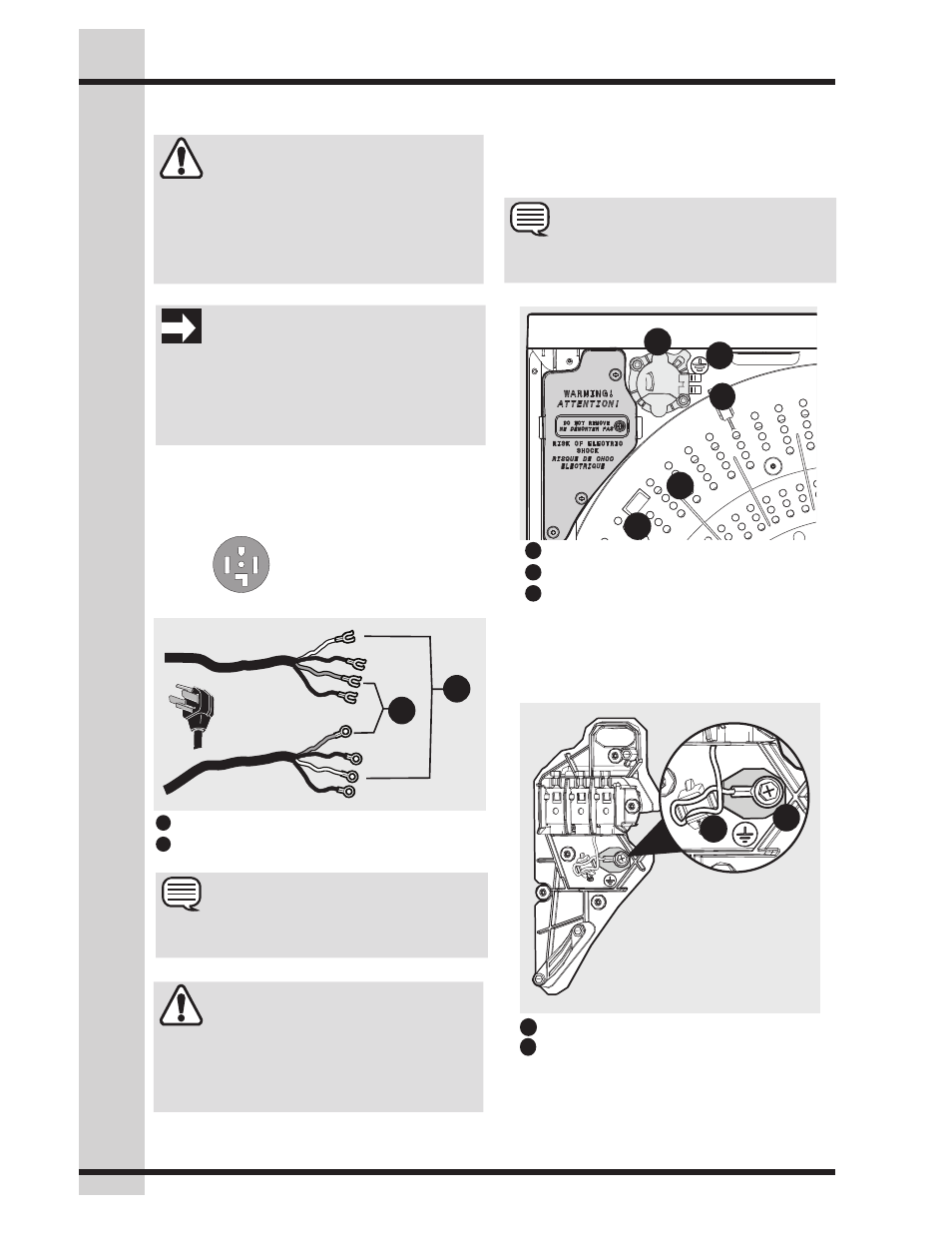

Electrical Connection
(Non-Canada) - 4-Wire Cord
1. Turn off power supply to outlet.
2. Remove the three screws securing the
terminal block access cover in the upper
corner on the back of the dryer.
3. Disconnect the internal (WHITE) dryer
harness wire from the (GREEN) ground
screw next to the terminal block.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before
servicing could result in personal injury or
even death.
NOTE
Terminal screws were shipped from the factory
temporarily attached inside the access cover.
Installation Instructions
NOTE
Two cords shown above with different
terminal types.
5. Reinstall the terminal block access cover.
WARNING
ELECTRICAL SHOCK HAZARD
Do not operate dryer without terminal cover
in place. A correctly installed terminal block
cover also acts a qualified strain relief for the
power cord.
Ground GREEN wire
Neutral White wire
30 AMP
NEMA 14-30
1
1
2
2
Terminal block access cover
Access cover screw
1
2
DO NOT REMOVE - screw next to this text
must not be removed. 3
1
2
2
2
3
2
2
Internal ground (GREEN screw)
Internal dryer harness (WHITE wire)
1
1
