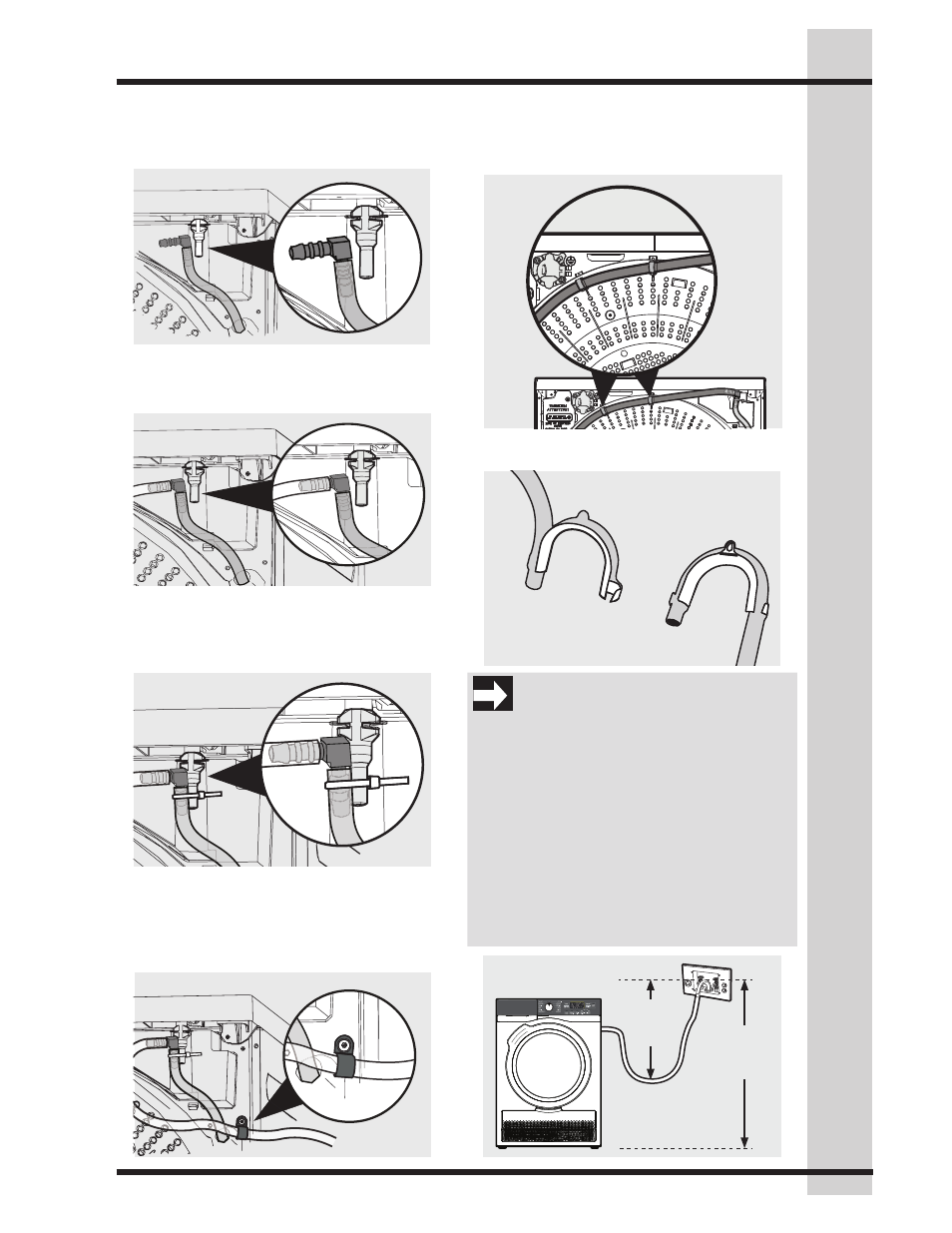

5. With the plastic cable tie that came with
the kit, secure the elbow and tubes to the
plastic fitting.
6. To route the drain tube to the left of the
dryer, secure the tube with the “P” clamp
from the kit to the back of the dryer with
the cabinet screw shown below.
7. To route the drain tube to the right of the
dryer, route the tube across the back of
the dryer and snap it into the “C” clips
shown as below.
8. Install the hose hanger from the kit onto
the end of the hose and insert in drain.
IMPORTANT
Follow these guidelines for proper drain
hose installation:
1. The distance from the bottom of the
drain tube sag to the top of highest part
of drain tube should be no more than
20” (50 cm).
2. Drain tube may need to be shortened
with scissors if sag is greater than
allowed.
3. The drain height location should be
no more than 40” (100 cm) above the
bottom of the dryer feet.
Installation Instructions
4. Retrieve the clear tubing that came in the
kit and install it also onto the elbow.
MAX
20"
(50 cm) MAX
40"
(100 cm)
3. Retrieve the 90 degree plastic elbow from
the direct drain installation kit that came with
your dryer and install it onto the red tubing.
